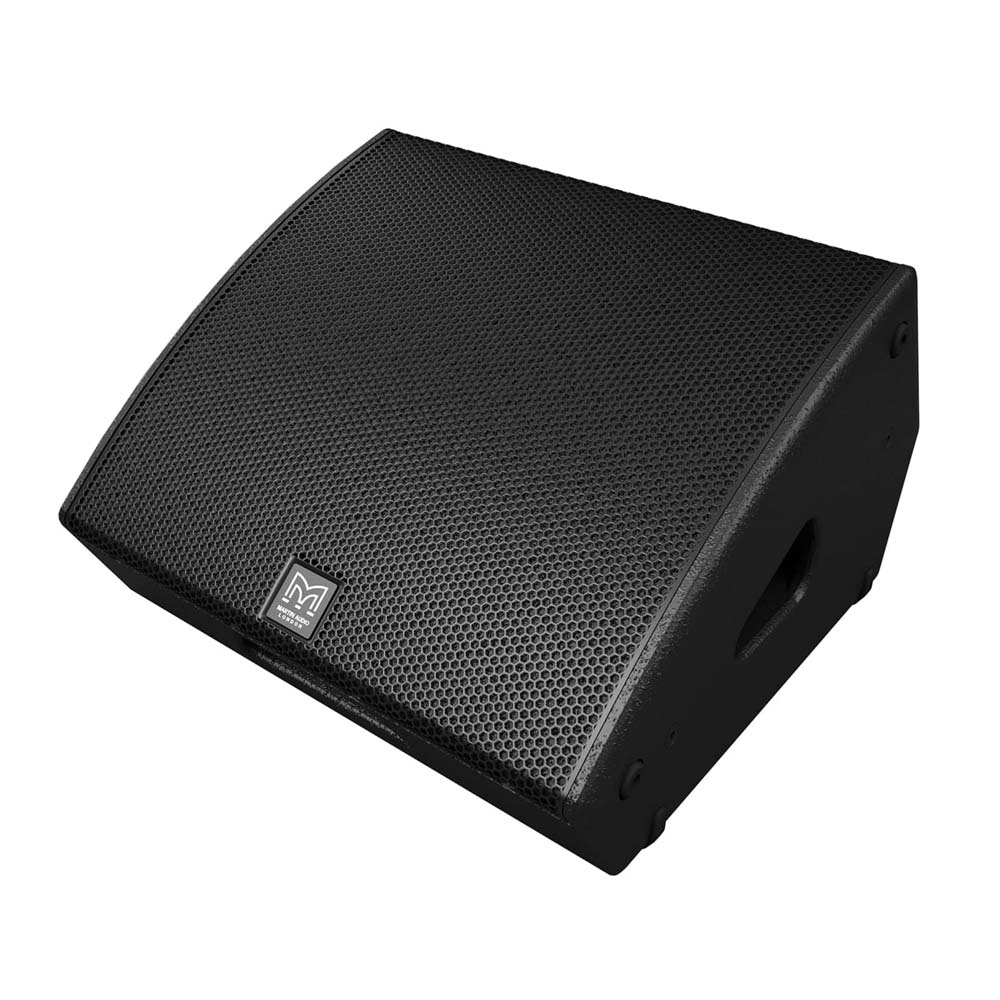

The LE100 is an extremely compact, two-way passive monitor. It features a 12 inch (300mm) LF /1 inch (25mm) exit HF Coaxial Differential Dispersion driver to distribute sound evenly over the listening plane. The LF driver section has a 2.5 inch (65mm) voice coil and an efficient motor system with an aluminium demodulating ring to minimise distortion. The coaxial HF driver utilises a 1.75 inch (44mm) polyimide dome and features a low-compression phase-plug to reduce non-linearity associated with overly-high compression ratios.
Features
Compact, two-way stage monitor
Coaxial ‘point-source’ performance
Differential Dispersion technology for consistent coverage
Defined, near-rectangular coverage plane at head-height
Low-profile plywood enclosure
Integral pole-mount with removable bung
M8 rigging inserts
Multiple connectors for flexible deployment
Applications
Stage monitor
Pole-mounted fill/PA system
SPECIFICATION
TYPE Two-way passive, Coaxial Differential Dispersion stage monitor
FREQUENCY RESPONSE (5) 78Hz-20kHz ± 3dB,
-10dB @ 58Hz
DRIVERS
LF: 12 inch (300mm)/2.5 inch (63.5mm) voice coil, long excursion, shared ferrite motor system with HF
HF: 1 inch (25mm) exit/1.7 inch (44mm) voice coil, polyimide dome compression driver
RATED POWER (2) 300W AES, 1200W peak
SENSITIVITY (8) 97dB
MAXIMUM SPL (9) 129dB peak
NOMINAL IMPEDANCE 8O
DISPERSION (-6dB) 110°-60° horizontal, 60° vertical
CROSSOVER 1.6kHz passive
ENCLOSURE Birch/poplar ply
FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
BAFFLE ANGLE 27°
CONNECTORS 5 x NL4 type
PIN CONNECTIONS 1+/1-
FITTINGS
2 x pocket handles
Protective rubber feet on base and sides
4 x M8 inserts

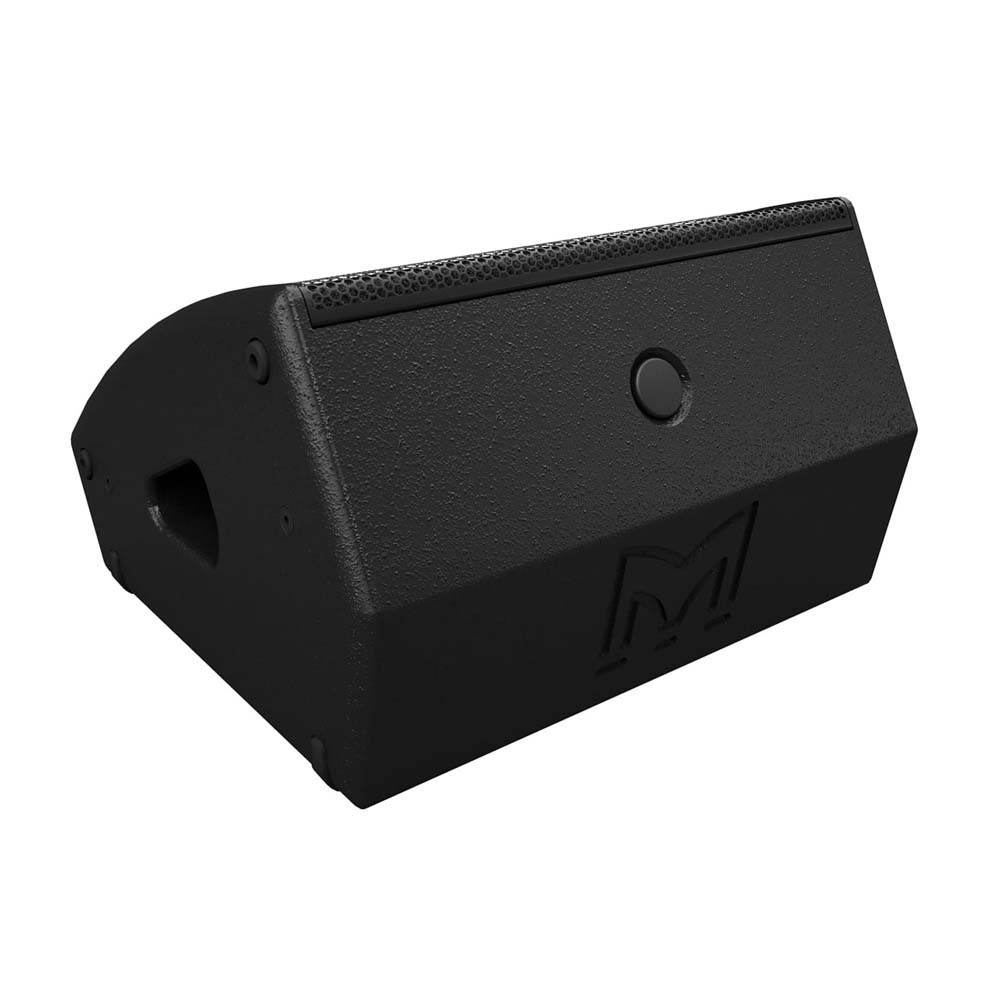

Pole-mount socket
DIMENSIONS (W) 490mm x (H) 302mm x (D) 472mm
(W) 19.3ins x (H) 11.9ins x (D) 18.6ins
DIMENSIONS INCL FEET (W) 496mm x (H) 305mm x (D) 472mm
(W) 19.5ins x (H) 12.0ins x (D) 18.6ins
WEIGHT 18kg (39.7lbs)
