** PLEASE NOTE THIS IS THE NON-DANTE VERSION OF THE DX4.0 **
Connected via Ethernet, system remote control and monitoring is done via Martin Audio’s VU-NET proprietary software application, while a front panel interface gives local control of features.
Four analogue/AES3 inputs and eight analogue/AES outputs are available, with AES3 inputs and outputs selected in pairs.
The DX4.0 features a sophisticated loudspeaker limiter suite which incorporates peak, RMS and excursion limiting, as well as multiband limiting for passive two-way systems. High-pass filtering, three shelving filters and six parametric filters are provided for each input channel, with crossover filters, two shelving filters and eight parametric filters on each output channel.
The DX4.0 supports FIR filters for use with optimisation of Martin Audio’s O-Line and can also be used with Martin Audio’s U-Hub to feed digital audio and network to an MLA Series array/subwoofer array via a single cable.
GENERAL
TYPE 4 input/8 output digital loudspeaker processor
OPERATING TEMPERATURE 0 to 45°C
HUMIDITY RANGE 0 to 80% RH (non-condensing)
AUDIO PERFORMANCE
INPUT IMPEDANCE >10k? balanced
OUTPUT IMPEDANCE <100? balanced
MAX INPUT LEVEL +20dBu
MAX OUTPUT LEVEL +18dBu into 600?
FREQUENCY RESPONSE 10Hz - 40kHz
INPUT DYNAMIC RANGE >120dBa typ.
OUTPUT DYNAMIC RANGE >118dBa typ.
TOTAL HARMONIC DISTORTION <0.008% typ. 20Hz-20kHz
DIGITAL SIGNAL PROCESSING
SAMPLE RATE 96kHz
AES3 INPUT SAMPLE RATE 28kHz – 108kHz
AES3 OUTPUT SAMPLE RATE 96kHz
POWER SUPPLY
AC OPERATING RANGE 100-240V +/-10%
POWER CONSUMPTION 30W
CONTROL AND MONITORING
PROTOCOL Ethernet
CONTROL APPLICATION Martin Audio VU-NET™

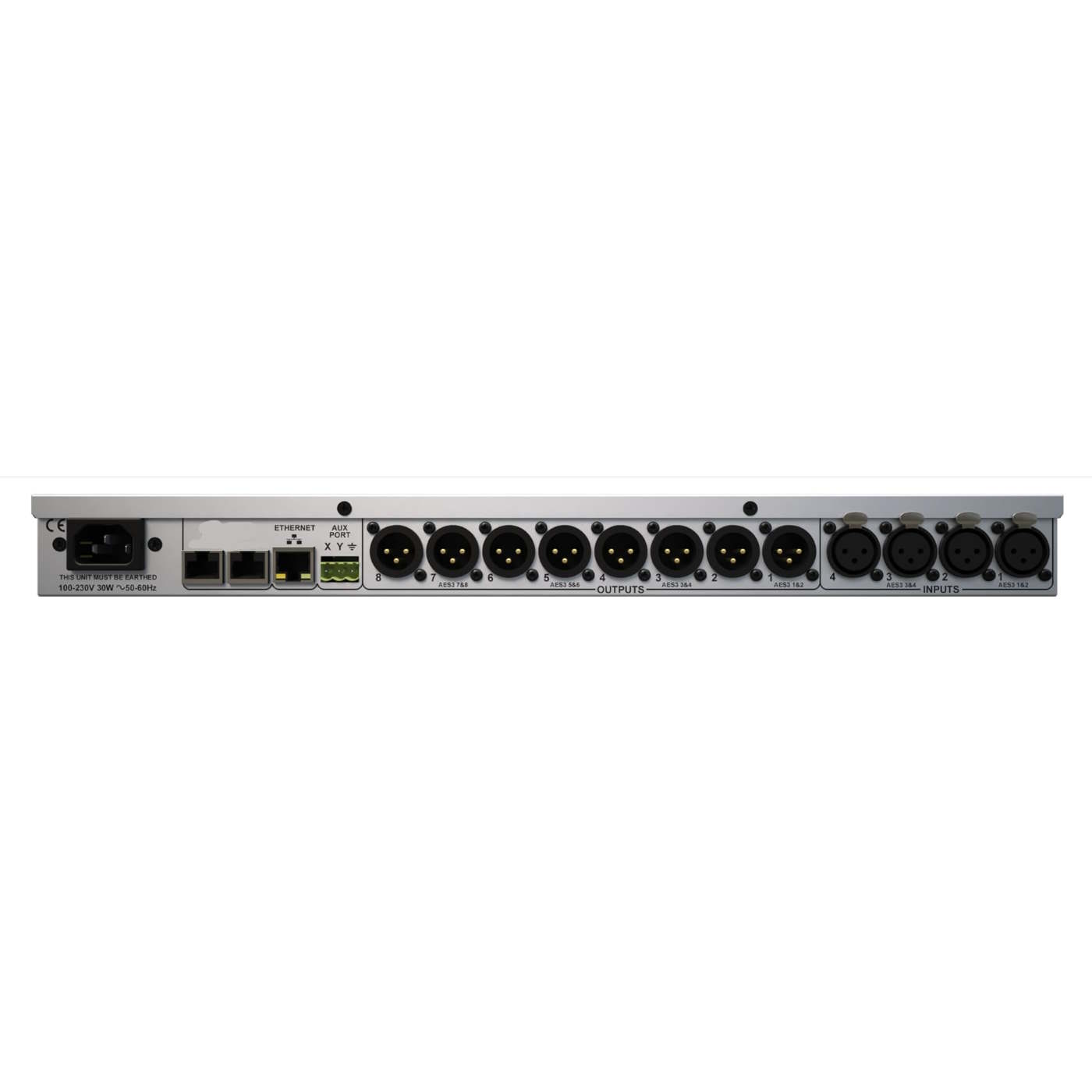

CONNECTORS
AUDIO INPUT 4 x 3 pin female XLR for analogue or AES3 pairs
AUDIO OUTPUT 8 x 3 pin male XLR for analogue or AES3 pairs
ETHERNET 1 x shielded RJ45
AUX PORT Phoenix connector for contact closure
MAINS POWER 3 pin IEC
PHYSICAL
DIMENSIONS
(W) 482mm x (H) 1U/44mm x (D) 184mm
(W) 19in x (H) 1U/1.75in x (D) 7.2in
WEIGHT 2.7Kg (6lbs)
