Martin Audio DX0.4 is a digital PA system processor with 2 inputs and 4 outputs. It provides active-crossover, 10-band parametric EQ, input noise-gate, delay and limiting functions to optimise and protect a PA system.
Presets are provided for compatibility with Martin Audio's ADORN, CDD and BlacklineX ranges, also FlexPoint FP4, FP6 and FP8.
Professional 2-input, 4 output system processor for a wide range of system applications.
Comprehensive, sophisticated processing options including EQ, gate, delay and limiting to optimise and protect a system.
Fully assignable matrix routing of both inputs to any output with attenuation option on each routing node.
Two balanced XLR inputs with up to 12dB of gain, polarity invert, 600ms of delay, 10 band parametric EQ with a choice of 16 filter types individually selectable for each band.
Four balanced XLR outputs with 12dB of gain, polarity invert, 200ms delay, high and low pass filters with cut-off slopes from -6dB/oct to -48dB/oct using either Bessel, Butterworth or Linkwitz Riley filters. 8 band parametric EQ with up a choice of 16 filter types, Independent Program and Peak Limiters
Convenient front panel controls and LCD display with an intuitive menu system for programming or modifying settings. One press mute buttons for all inputs and outputs.
Front panel USB port for quick and easy PC connection.
Networking option using either Ethernet or RS485 for larger systems.
Output channel preset import function to quickly and easily compile a system to suit any application utilising a library of Martin Audio product channel presets.
Six segment LED metering for input and output levels and limiter operation.
32 User Presets to store system configurations.
3-level customisable user modes with individual password protection.
Universal switch mode mains PSU accepts 90 to 240V, 50/60Hz.
Compact 1 rack unit design.
Approximate shipping weight: 3.5kg
GENERAL
INPUT IMPEDANCE: 20k Ohm balanced
OUTPUT IMP: 100R
MAX INPUT LEVEL: +20dBu
MAX OUTPUT LEVEL: +18dBu
CROSSTALK: <-95dB
SAMPLE RATE: 96kHz
SIGNAL TO NOISE RATION >113dB (A weighted)
NOISE FLOOR: <-94dB (A weighted)
COMMON MODE REJECTION RATIO 60dB
FREQUENCY RESPONSE: 20Hz - 40kHz +0.3dB
INPUT A/D DYNAMIC RANGE: 118dB
OUTPUT D/A DYNAMIC RANGE: 118dB
THD (+4DBU 1KHZ): <0.003%
MAINS VOLTAGE RANGE: 85-230VAC 50-60Hz
NOMINAL POWER CONSUMPTION: 30W

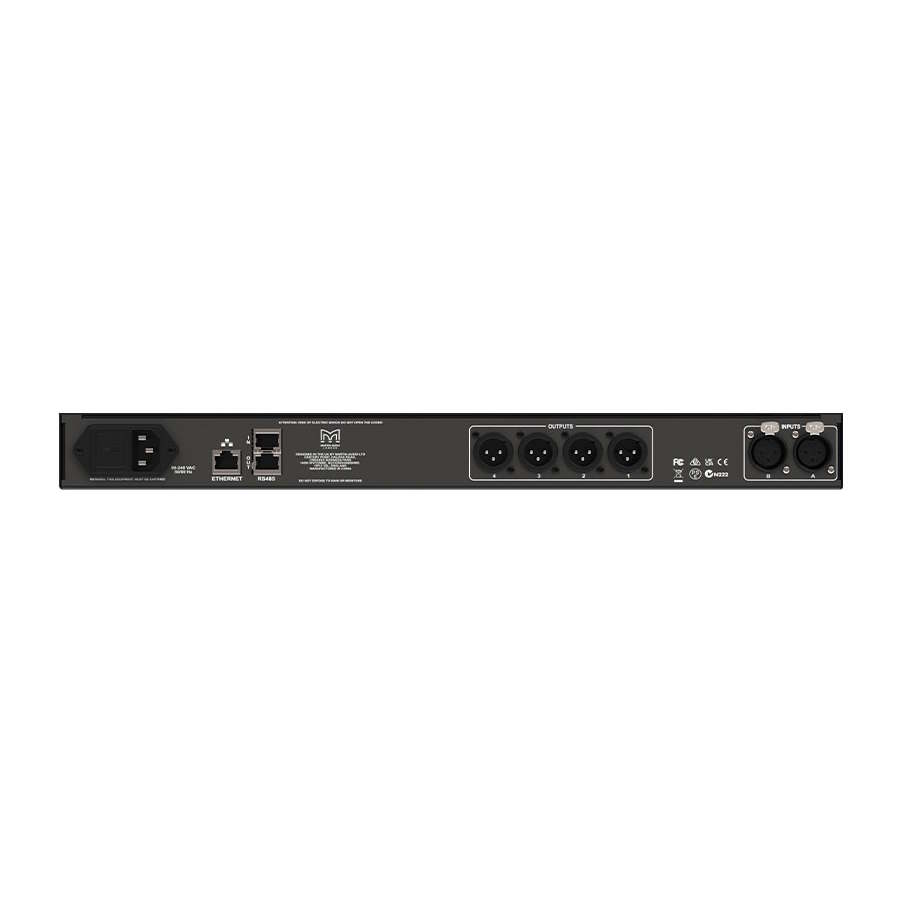

CONNECTORS
AUDIO INPUT: 2 x 3 pin female XLR
AUDIO OUTPUT: 4 x 3 pin male XLR
ETHERNET: Shielded RJ45, Dynamic or Static IP
RS485: 2 x RJ45
USB: 1 x USB B (Front Panel)
MAINS: 3 pin IEC
PROCESSING
SIGNAL GENERATOR: White/pink noise, -30dBu to +10dBu
GAIN: -18dB to +12dB, step accuracy 0.1dB
INPUT EQUALISER: 10 band PEQ, gain range +15dB16 x Filter types
INPUT GATE: Threshold: -40 to -80dBuAttack: 1 to 1,000ms
Release: 1 to 1,000ms
ROUTING: Freely assignable 2-in, 4 outUp to 30dB attenuation on each node
DELAY: Input: 600ms
Output: 200msSteps: 20us,
Units: milliseconds, metres, feet
OUTPUT FILTERS: High & Low Pass, -6dB/Octave to -48dB/OctaveSlope types: Butterworth, Bessel, Linkwitz Riley
OUTPUT EQUALISATION: 8 band PEQ, gain +15dB16 x filter typesFIR Filter Import
PROGRAM LIMITER: Threshold: -10 to +20dBu
Attack: 1 to 1,000ms
Release: 10 to 3,000ms
PEAK LIMITER: Threshold: 0 to 12dB above Program Limiter Threshold
Release: Fast (91ms), Medium (350ms), Slow (800ms)
DIMENSIONS
HEIGHT: 1U (44mm) [1.75”]
WIDTH: 482mm [19”]
DEPTH: 230mm [9.1”]
WEIGHT: 3.0kg [6.6lb]
