** PRICE IS FOR A SINGLE SPEAKER - MUST BE ORDERED IN MULTIPLES OF 2 - PACKED AND SHIPPED IN PAIRS - WALL MOUNT BRACKETS INCLUDED **
The Coaxial Differential Dispersion technology employed in the CDD5 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience to distribute sound evenly front-to-back, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response in the crossover region associated with non-coaxial designs.

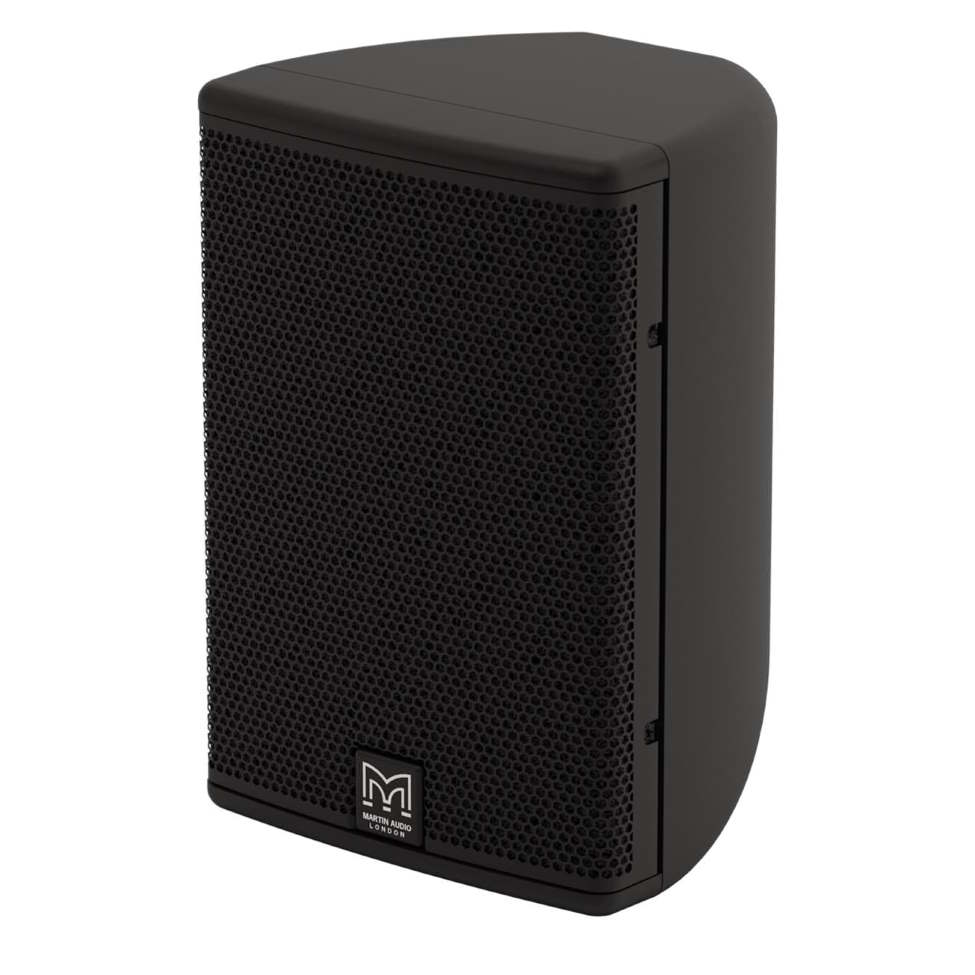

The visually-distinctive enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the enclosure allows it to be surface-mounted close to a wall or ceiling by means of the supplied omni-directional bracket or an optional close-mount ceiling bracket.
Finished in black (RAL9005) or white (RAL9016) as standard, the CDD5 can be supplied in any RAL colour to order.
A full-range, passive two-way system, the CDD5 should be used with a compatible controller with appropriate limiter settings to provide system protection.
When used with a DX controller or an iKON amplifier, there are now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system.
TYPE Ultra-Compact, Coaxial Differential Dispersion passive two-way system
FREQUENCY RESPONSE (5) 100Hz-20kHz ± 3dB, 10dB @ 70Hz
DRIVER LF: 5.25” (130mm)/1.25” (32mm) voice coil, long excursion, ferrite motor system
HF: 0.75” (19mm) voice coil, fabric dome with neodymium motor system
RATED POWER (2) 100W AES, 400W peak
SENSITIVITY (8) 90dB
MAXIMUM SPL (9) 110dB continuous, 116dB peak
NOMINAL IMPEDANCE 8O
DISPERSION (-6DB) 120°-90° horizontal, 80° vertical (user-rotatable)
CROSSOVER 2.5kHz passive
ENCLOSURE 3 litre, ABS
FINISH Black or white
PROTECTIVE GRILLE Black or white perforated steel with scrim cloth backing
CONNECTORS Low profile 13A push-lock
PIN CONNECTIONS Left to right: Input+, Input -, Link -, Link +
FITTINGS 6 x M5 inserts for wall/ceiling brackets
DIMENSIONS (W) 160mm x (H) 230mm x (D) 149mm
(W) 6.3ins x (H) 9.1 ins x (D) 5.9 ins
WEIGHT 3kg (6.6lbs)
