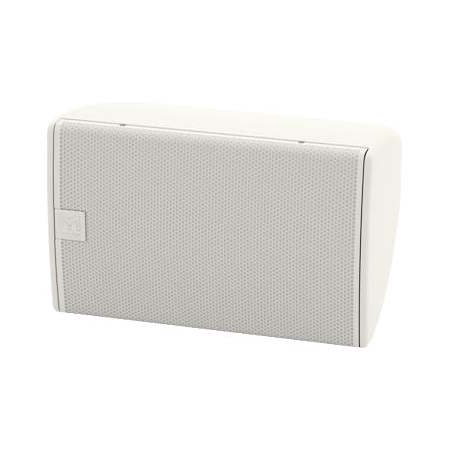

The CDD10 is a very compact two-way passive loudspeaker system which utilises a 10” (250mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver. It is uniquely placed to meet the foreground requirements of music bars and clubs, as well as the varied architectural applications that require upfront sound levels from a very compact enclosure. Use with a CSX118 or CSX218 subwoofer will enable the CDD10 to operate as small dancefloor system that is remarkably powerful for its size.
Compact, CDD™ passive two-way system
Coaxial Differential Dispersion™ technology
Elegant UPM Formi composite enclosure
User-rotatable coaxial drive unit
Vertical and horizontal mounting options
Screw-free perforated steel grille
8-Ohms nominal impedance
Discreet mounting accessories
Integral inserts for eyebolt suspension
Black or white standard colour options
TYPE Compact, Coaxial Differential Dispersion passive two-way system
FREQUENCY RESPONSE (5) 65Hz-20kHz ± 3dB, -10dB @ 55Hz
DRIVER LF: 10” (250mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor with HF
HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver
RATED POWER (2) 250W AES, 1000W peak
SENSITIVITY (8) 96dB
MAXIMUM SPL (9) 120dB continuous, 126dB peak
NOMINAL IMPEDANCE 8O
DISPERSION (-6DB) 110°-75° horizontal, 60° vertical (user-rotatable)
CROSSOVER 2kHz passive
ENCLOSURE 28 litre, composite material
FINISH Black or white textured paint
PROTECTIVE GRILLE Black or white perforated steel with scrim cloth backing
CONNECTORS Low profile 20A push-lock
PIN CONNECTIONS Left to right: Input+, Input -, Link -, Link+
FITTINGS 6 x M8 inserts for wall bracket
10 x M8 fly points
DIMENSIONS (W) 323mm x (H) 513mm x (D) 310mm
(W) 12.7ins x (H) 20.2ins x (D) 12.2ins
WEIGHT 15.3kg (33.7lbs)
