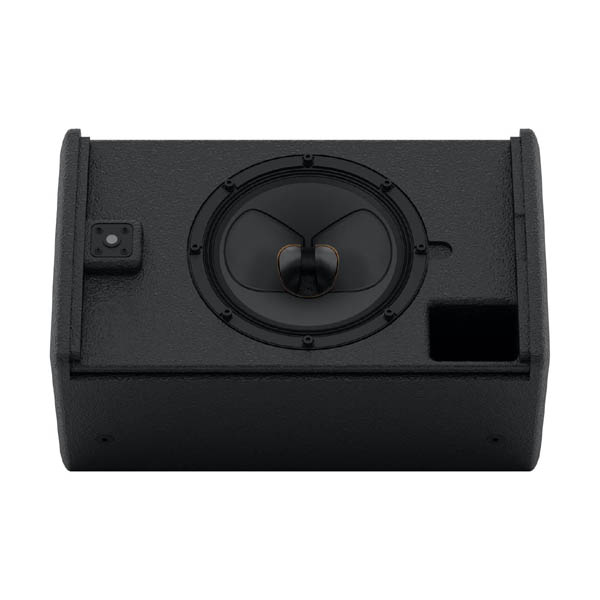

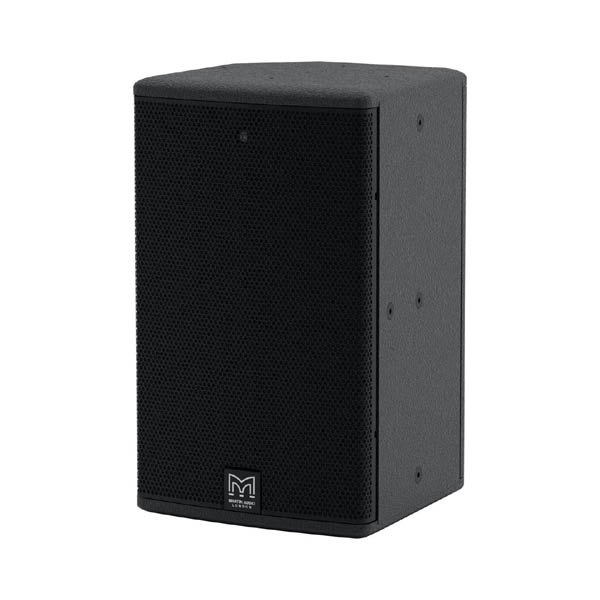

The CDD-LIVE 8 is an ultra-compact, self-powered, two-way system featuring an 8 inch (200mm) LF/1 inch (25mm) exit HF Coaxial Differential Dispersion driver which can be easily rotated for horizontal or vertical orientation. Its small size gives no indication of its high output capability and exceptional fidelity. As a stand-alone loudspeaker, it has a multitude of professional applications - from small-medium scale sound reinforcement, AV presentations and HoW to distributed systems, frontfill/infill and use as a micro stage monitor.
• Ultra-compact, self-powered two-way system
• Coaxial Differential Dispersion™ technology
• Onboard Class D amplification and DSP
• Dante™ Digital Audio networking
• Global mains operation with Power Factor Correction
• User-rotatable CDD™ driver
• Vertical and horizontal mounting options
• Tour-grade, multi-angle plywood enclosure
• IP24 rating option with rain cowl
• Comprehensive mounting accessories
TYPE Ultra-compact, Coaxial Differential Dispersion powered two-way system
FREQUENCY RESPONSE (1) 70Hz - 20kHz ±3dB, -10dB @ 50Hz
DRIVER LF: 8” (200mm)/2” (50mm) voice coil, long excursion, shared ferrite
motor system with HF
HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome
compression driver
INPUT SENSITIVITY -13dBu for 100dB SPL
MAXIMUM SPL (2) 117dB continuous / 123dB peak
DISPERSION 110°-80° horizontal, 60° vertical (user-rotatable)
CROSSOVER 2.4kHz Active LR8
Balance presets for pole mount/ pole mount with sub/ stage monitor
Module
Audio input
CONNECTORS Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon
ANALOGUE INPUT IMPEDANCE 20 k? balanced to ground
MAXIMUM ANALOGUE INPUT LEVEL 24.6 Vpp (+21dBu), over voltage protected
Internal Processing
Multi-channel DSP, programmable via TCP/IP using VU-Net software
PEQ/shelving filters
Up to 48dB/Oct HPF
Low latency HF FIR filters
Up to 200ms input delay
Pre-set selection via rear panel switch
Network
CONNECTORS 2x Neutrik ® EtherconRJ45
PROTOCOL TCP/IP and UDP/IP
Amplifier Module
TYPE 2 channel switch-mode, class D
PEAK OUTPUT POWER 1300W
CONTINUOUS OUTPUT POWER 650W total
AVERAGE EFFICIENCY 89%
COOLING External convection cooled, with internal fan
MAXIMUM AMBIENT TEMPERATURE 40°C (104°F) for full output
Power Supply
TYPE Switch mode, fixed frequency with PFC
AC INPUT OPERATING RANGE 85 - 265V ~ AC, 50 - 60Hz
POWER FACTOR > 0.98
NOMINAL POWER CONSUMPTION 550W
MAINS CONNECTOR Neutrik® Powercon True1
Mechanical
ENCLOSURE Extensively braced multi-laminate plywood.
FINISH Textured black PU coating.
PROTECTIVE GRILLE HEX perforated mild steel with protective zinc plating and black
powder coat finish. Backed with black grille cloth
FITTINGS Top hat for pole mounting
15 x M8 mounting points
Single pocket handle
Optional weather protection cowl
IP RATING IP24 factory option available
DIMENSIONS (W) 258mm x (H) 428mm x (D) 254mm
(W) 10.16in x (H) 16.85in x (D) 10.00in
WEIGHT 14kg (30.8lbs) excluding Transit cover
ACCESSORIES Transit Cover
Optional wall, yoke and universal brackets
Notes
(1) Measured on-axis in free space (4p space) at 2 metres, then referred to 1 metre
(2) Measured in free space at 1 metre with a tone burst signal
(3) Measured on-axis on ground plane (2p space) at 2 metres, then referred to 1 metre
(4) Measured in half-space at 1 metre with a tone burst signal
