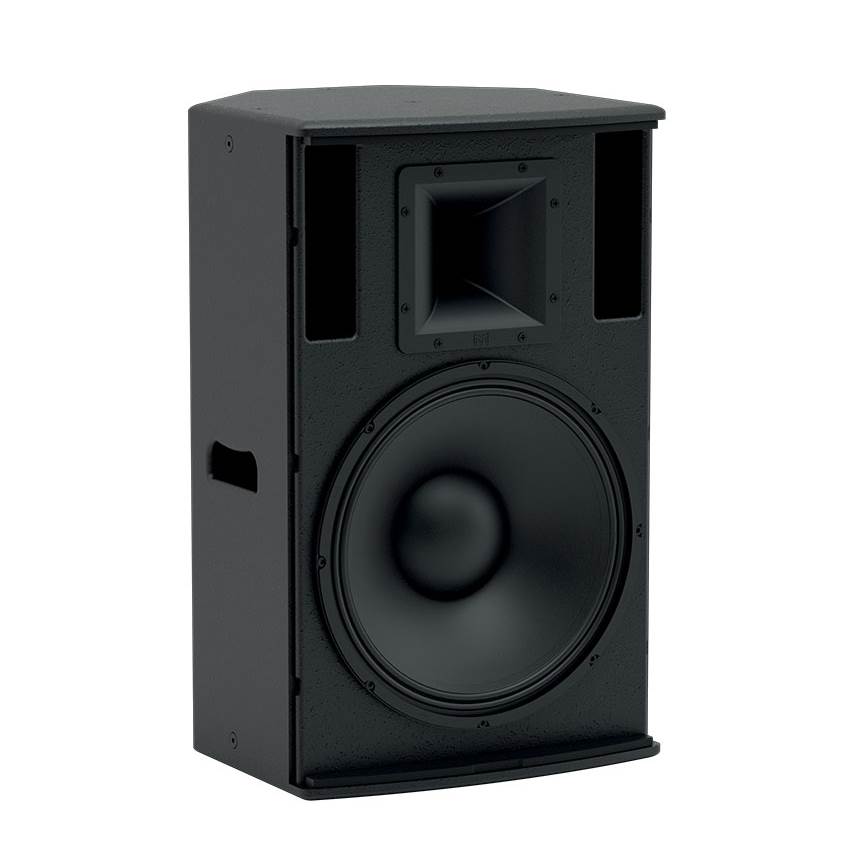

The XP15 is a self-powered two-way system designed by leading acoustic engineers for indoor portable applications and installations that require powerful performance from a single portable loudspeaker.
Features
High output, self-powered, portable two-way system
1300W of Class D amplification
Global power supply with PFC (Power Factor Correction)
Onboard DSP with rotary control interface
Multi-function display for metering, control and function selection, Three-channel mixer
Three-band channel EQ, plus HPF (Ch1/2)
Independent LF and HF peak and RMS limiters
Three speaker mode and voicing presets
Bluetooth® control and streaming option
Durable plywood enclosure
User-rotatable 80° x 50° HF horn
Vertical and horizontal mounting options
Symmetrical multi-angle enclosure for PA or stage monitor use
Screw-free, cloth-backed steel grille
Integral ergonomic handles
Mounting options include pole-mount and flying inserts
ACOUSTICS
TYPE High output, self-powered two-way system
FREQUENCY RESPONSE (5) 55Hz – 20kHz ±3dB -10dB @ 45Hz
DRIVERS
LF: 15” (380mm)/3” (75mm) voice coil ferrite motor system
HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
MAXIMUM SPL (9) 125dB continuous / 131dB peak
DISPERSION 80° H x 50° V (user-rotatable)
CROSSOVER 2kHz active, 24dB/octave

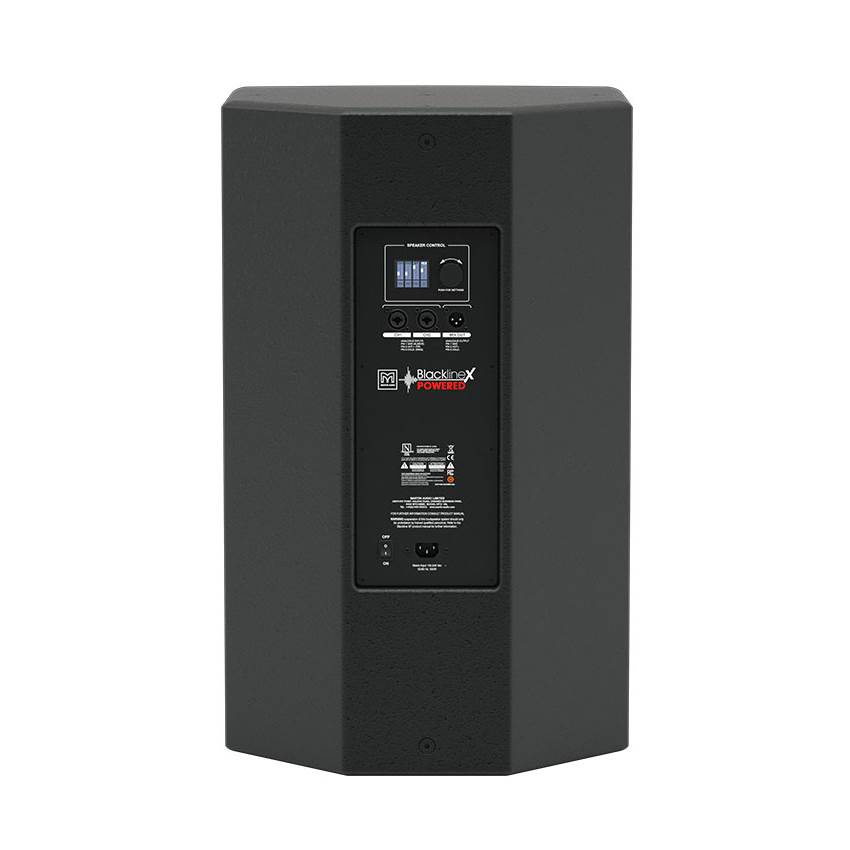

MODULE
AUDIO IN/OUT
INPUT CONNECTORS 2 x female XLR/ 1/4” jack combo
MIC/LINE INPUT IMPEDANCE 8 kO balanced
1/4” JACK TS INPUT IMPEDANCE 1 MO unbalanced
MIX OUTPUT CONNECTOR 1 x male XLR
MIX OUTPUT IMPEDANCE 600O balanced
INTERNAL PROCESSING
INPUT CHANNEL EQ 3-band on each channel plus HPF (Ch1/2)
SPEAKER EQ 3 speaker mode/voicing presets
PROTECTION LF and HF Peak and RMS limiting, amplifier thermal protection
AMPLIFIER MODULE
TYPE 2 channel switch-mode, class D
PEAK OUTPUT POWER 1300W total
1000W LF, 300W HF
AVERAGE EFFICIENCY 89%
COOLING External convection cooled
MAXIMUM AMBIENT TEMPERATURE 35°C (95°F) for full output
POWER SUPPLY
TYPE Switch-mode, fixed frequency with PFC
AC INPUT OPERATING RANGE 100-240V ~ AC, 50 - 60Hz
POWER FACTOR > 0.98
NOMINAL POWER CONSUMPTION 550W Max
MAINS CONNECTOR 3-pin IEC
MECHANICAL
ENCLOSURE Multi-angle birch/poplar ply
FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
FITTINGS 13 x M8 inserts, pole-mount socket, 2 x pocket handles
DIMENSIONS (W) 427mm x (H) 690mm x (D) 407mm
(W) 16.8in x (H) 27.2 x (D) 16.0in
WEIGHT 26kg (57lbs)
