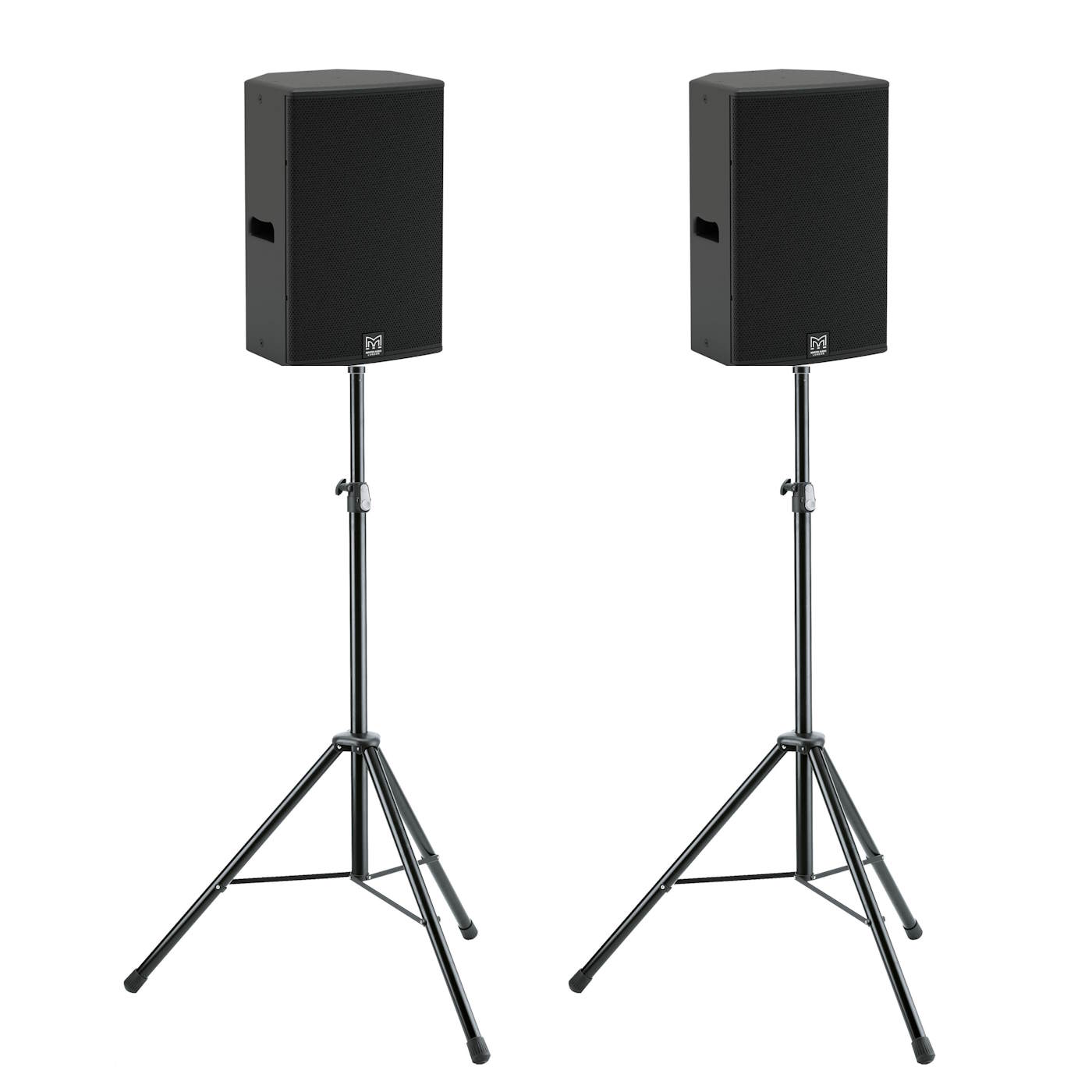

** SPECIAL BUNDLE PRICE - 2 X MARTIN AUDIO XP12 ACTIVE SPEAKERS WITH 2 X K&M 21449 SPEAKER STANDS **
The XP12 is a compact, powered, two-way system designed by leading acoustic engineers. It can be used either as a stand- alone system, stage monitor or in conjunction with the XP118 powered subwoofer.
Features
Compact self-powered, portable two-way system
1300W of Class D amplification
Global power supply with PFC (Power Factor Correction)
Onboard DSP with rotary control interface
Multi-function display for metering, control and function selection
Three-channel mixer
Three-band channel EQ, plus HPF (Ch1/2)
Independent LF and HF peak and RMS limiters
Three speaker mode and voicing presets
Bluetooth® control and streaming option
Durable plywood enclosure
ACOUSTICS
TYPE Compact self-powered two-way system
FREQUENCY RESPONSE (5) 62Hz – 20kHz ±3dB, -10dB @ 50Hz
DRIVERS
LF: 12” (300mm)/2.5” (63.5mm) voice coil, ferrite motor system
HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
MAXIMUM SPL (9) 122dB continuous, 128dB peak
DISPERSION (-6DB) 80° H x 50° V (user-rotatable)
CROSSOVER 2.3kHz passive
MODULE
AUDIO IN/OUT
INPUT CONNECTORS 2 x female XLR/ 1/4” jack combo
MIC/LINE INPUT IMPEDANCE 8 kO balanced
1/4” JACK TS INPUT IMPEDANCE 1 MO unbalanced
MIX OUTPUT CONNECTOR 1 x male XLR
MIX OUTPUT IMPEDANCE 600O balanced
INTERNAL PROCESSING
INPUT CHANNEL EQ 3-band on each channel plus HPF (Ch1/2)
SPEAKER EQ 3 speaker mode/voicing presets
PROTECTION LF and HF Peak and RMS limiting, amplifier thermal protection
AMPLIFIER MODULE
TYPE 2 channel switch-mode, class D
PEAK OUTPUT POWER 1300W total
1000W LF, 300W HF
AVERAGE EFFICIENCY 89%
COOLING External convection cooled
MAXIMUM AMBIENT TEMPERATURE 35°C (95°F) for full output
POWER SUPPLY
TYPE Switch-mode, fixed frequency with PFC
AC INPUT OPERATING RANGE 100-240V ~ AC, 50 - 60Hz
POWER FACTOR > 0.98
NOMINAL POWER CONSUMPTION 550W Max
MAINS CONNECTOR 3-pin IEC
MECHANICAL
ENCLOSURE Multi-angle birch/poplar ply
FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
FITTINGS 17 x M8 inserts, pole-mount socket, 2 x pocket handle
DIMENSIONS (W) 358mm x (H) 574mm x (D) 318mm
(W) 14.1in x (H) 22.6in x (D) 12.5in
WEIGHT 18kg (40lbs)
