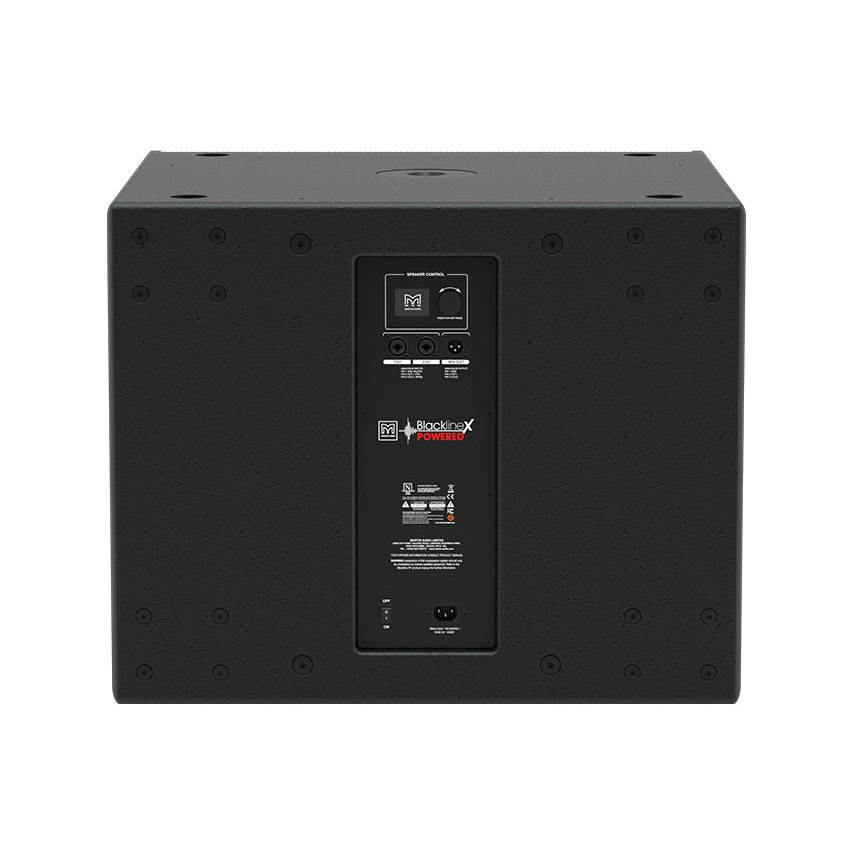

The XP118 is a compact, high performance subwoofer for indoor use with the XP12 and XP15 full-range loudspeakers. It extends the low frequency operating range of the combined system down to 42Hz and can be used singly, stacked in omni or cardioid mode, or flown via integral M10 insets.
Features
Compact, self-powered subwoofer
1 x 18” (460mm) driver with 4” (100mm) voice coil
2000W of Class D amplification
Global power supply with PFC (Power Factor Correction)
Onboard DSP with rotary control interface
Multi-function display for metering, control and function selection • Peak and RMS limiters
Bluetooth® control and streaming option
Durable plywood enclosure
Screw-free, perforated steel grille
Integral ergonomic handles
35mm pole-mount socket
ACOUSTICS
TYPE Compact, Self-powered Subwoofer
FREQUENCY RESPONSE (5) 42Hz –150Hz ±3dB
-10dB @ 38Hz
DRIVER 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet
MAXIMUM SPL (9) 131dB continuous, 137dB peak (half space)
DISPERSION (-6DB) Omnidirectional
CROSSOVER 100Hz, active
MODULE AUDIO IN/OUT
INPUT CONNECTORS 2 x female XLR/ 1/4” jack combo
MIC/LINE INPUT IMPEDANCE 8 kO balanced
1/4” JACK TS INPUT IMPEDANCE 1 MO unbalanced
MIX OUTPUT CONNECTOR 1 x male XLR
MIX OUTPUT IMPEDANCE 600O balanced
INTERNAL PROCESSING
INPUT CHANNEL EQ 3 band
SPEAKER EQ 4 presets, including cardioid mode
PROTECTION Peak and RMS limiting, amplifier thermal protection
AMPLIFIER MODULE
TYPE Class D, Bridged Tied
PEAK OUTPUT POWER 2000W total
AVERAGE EFFICIENCY 89%
COOLING Convection
MAXIMUM AMBIENT TEMPERATURE 35°C (95°F) for full output
POWER SUPPLY
TYPE Switch-mode, fixed frequency with PFC
AC INPUT OPERATING RANGE 100 – 240V ~ AC, 50 - 60Hz
POWER FACTOR > 0.98
NOMINAL POWER CONSUMPTION 1000W Max
MAINS CONNECTOR 3-pin IEC
MECHANICAL
ENCLOSURE Birch/poplar ply
FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel
FITTINGS 16 x M10 inserts, pole-mount socket
2 x bar handles, provision for castors
DIMENSIONS (W) 662mm x (H) 536mm x (D) 640mm
(W) 26.1in x (H) 21.1in x (D) 25.2in
WEIGHT 44kg (97lbs)
