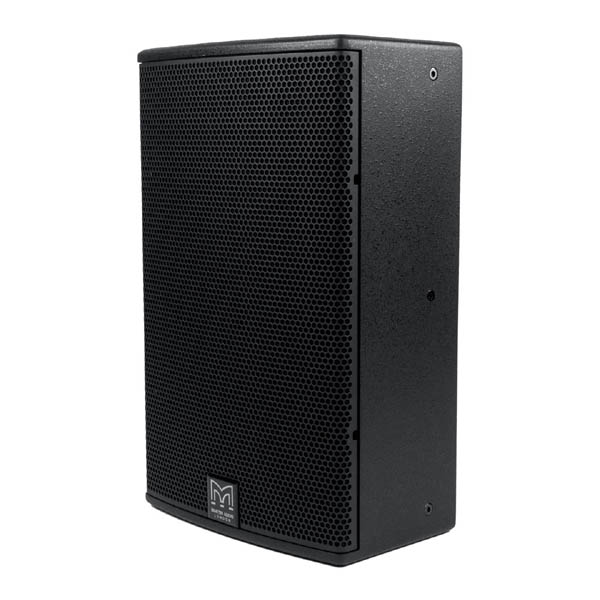

The X10 is a compact passive two-way system featuring an 10 inch (250mm)/2.5 inch (64mm) voice coil LF driver and a 1inch (25mm) HF driver mounted on a 90° x 50° horn. The X10 is a plywood cabinet with a screw-free steel grille, M8 inserts for a wall bracket and eyebolt suspension, plus a pole mount socket (with concealed cover). For all installed or portable applications. 55Hz-20kHz -10dB. 118dB Cont. 124dB peak.
TYPE Compact, passive two-way system
FREQUENCY RESPONSE (5) 65Hz-20kHz ± 3dB
-10dB @ 55Hz
DRIVERS LF: 10 inch (250mm)/2.5 inch (63.5mm) voice coil,
ferrite motor system
HF: 1 inch (25mm) exit/1.4 inch (35mm) voice coil,
polyimide dome compression driver
RATED POWER (2) 250W AES, 1000W peak
RECOMMENDED AMPLIFIER VIA2502 / VIA2004
SENSITIVITY (8) 94dB
MAXIMUM SPL (9) 118dB continuous, 124dB peak
NOMINAL IMPEDANCE 8 ohms
DISPERSION (-6dB) 90° H x 50° V (user-rotatable)
CROSSOVER 2.4kHz passive
ENCLOSURE Multi-angle birch/poplar ply
FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
CONNECTORS 2 x NL4 type
PIN CONNECTIONS (INPUT 1+/1-
PIN CONNECTIONS (LINK) 1+/- to 1+/-
FITTINGS 19 x M8 inserts, pole-mount socket, 1 x bar handle
DIMENSIONS (W) 324mm x (H) 522mm x (D) 289mm
(W) 12.8ins x (H) 20.6ins x (D) 11.4ins
WEIGHT 14kg (30.9lbs)
ACCESSORIES Wall bracket, eyebolts
Notes
(1) Measured on-axis in half (2pi) space at 2 metres, then referred to
1 metre.
(2) AES Standard ANSI S4.26-1984.
(3) Measured in half (2pi) space at 2 metres with 1 watt input, using
band limited pink noise, then referred to 1 metre.
(4) Measured in half (2pi) space at 2 metres using band limited pink
noise, then referred to 1 metre.
(5) Measured on-axis in open (4pi) space at 2 metres, then referred
to 1 metre.
(6) Measured in open (4pi) space at 2 metres with 1 watt input,
using band limited pink noise, then referred to 1 metre.
(7) Measured in open (4pi) space at 2 metres using band limited
pink noise, then referred to 1 metre.
(8) Measured in open (4pi) space at 2 metres with 2.83v input, using
band limited pink noise, then referred to 1 metre.
(9) Calculated at 1 metre.
(10) Measured in half (2pi) space at 2 metres with 2.83V input, using
band limited pink noise, then referred to 1 metre.
