** PRICED INDIVIDUALLY BUT PACKED IN PAIRS SO MUST BE ORDERED IN MULTIPLES OF 2 **
As part of the ADORN commercial loudspeaker series, the ACS-55TS is a compact, two-way ceiling speaker with a shallow backcan, designed for background and foreground applications that require premium performance and cost competitiveness.
Compact two-way ceiling speaker, shallow backcan

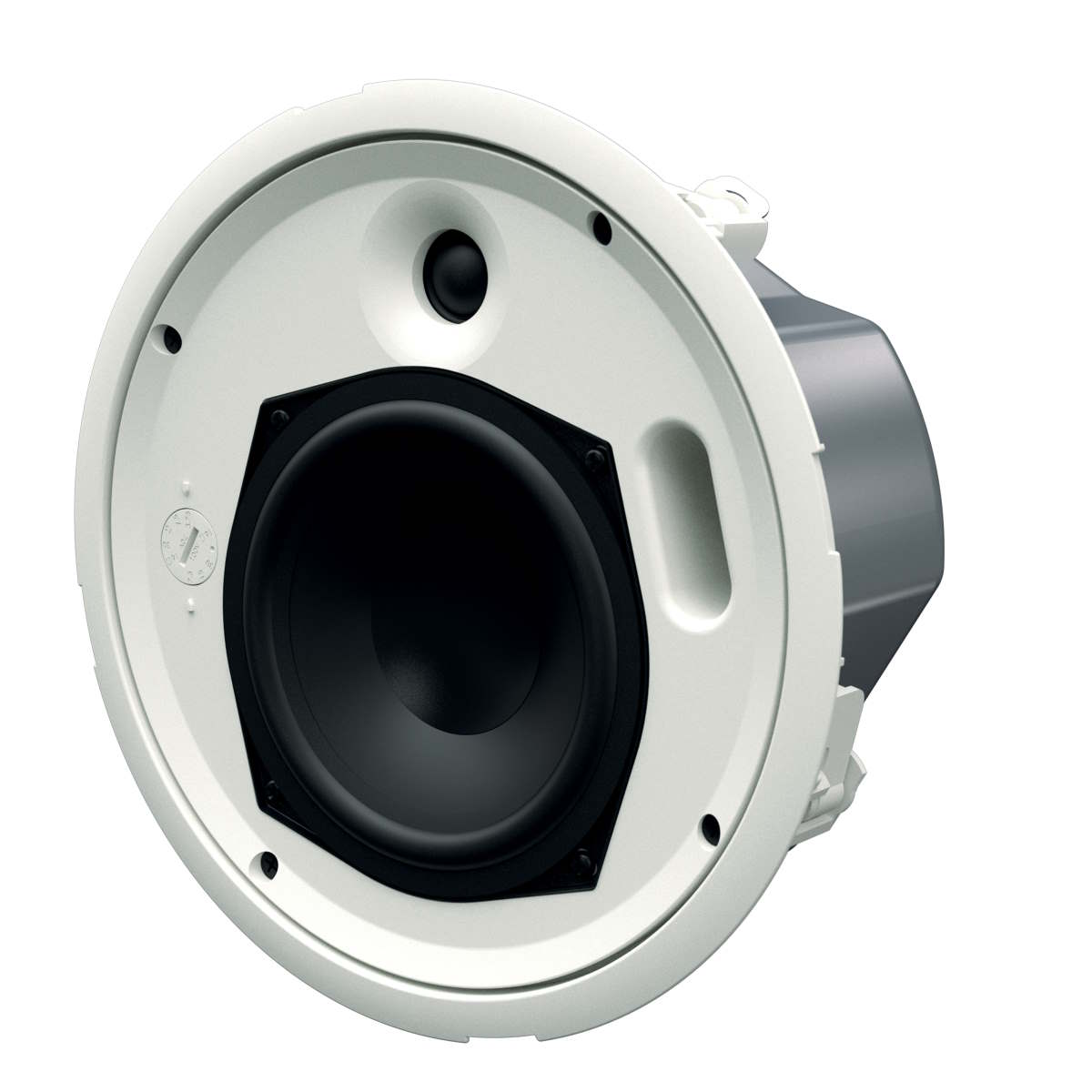

5.25” (135mm) LF driver and 0.75” (19mm) HF dome tweeter
Wide 150° conical coverage pattern reduces speaker count required for even coverage
70V/100V multi-tap line transformer or 16-ohm low-impedance operation
Low and high-frequency overload protection

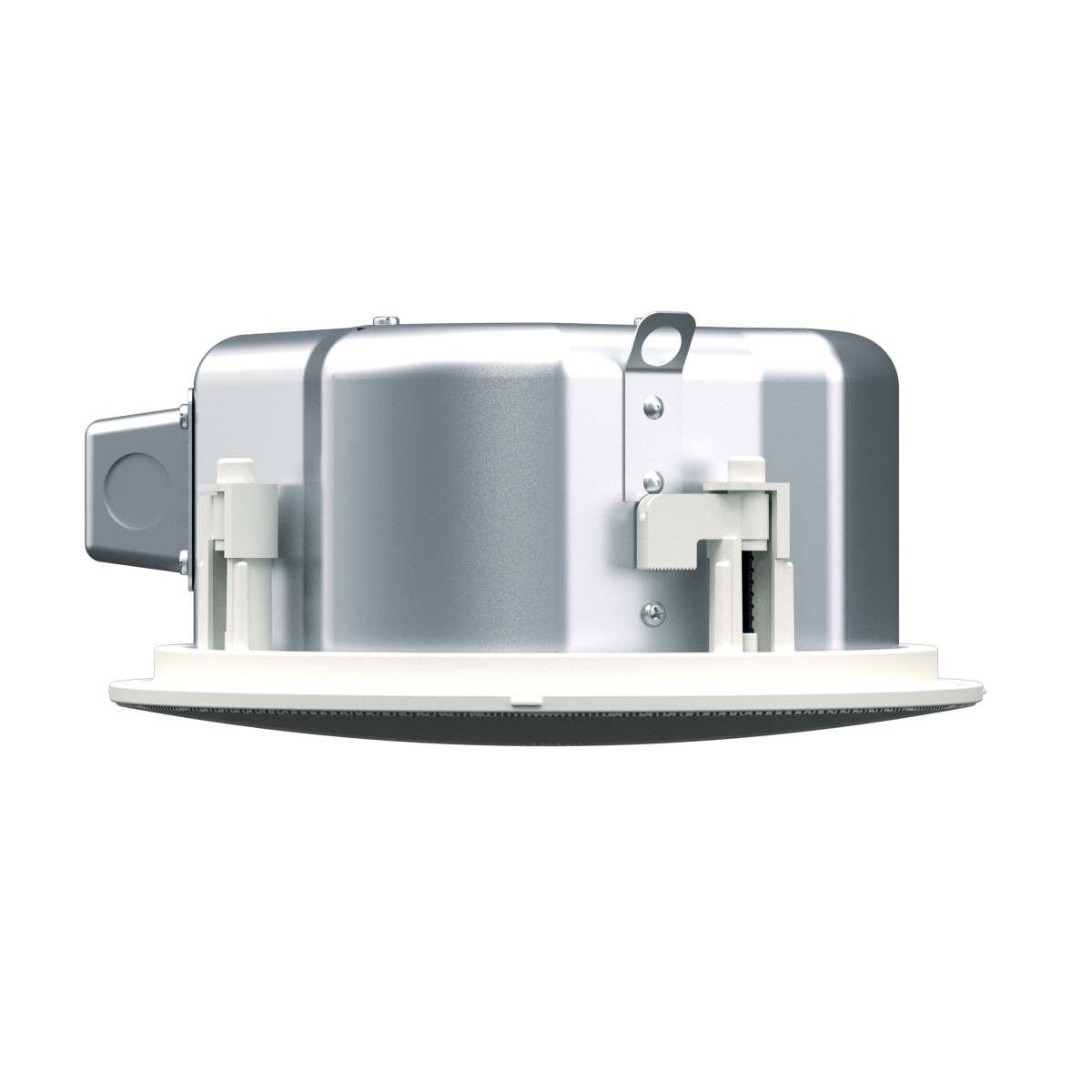

UL94V-0 rated baffle with zinc-plated steel backcan

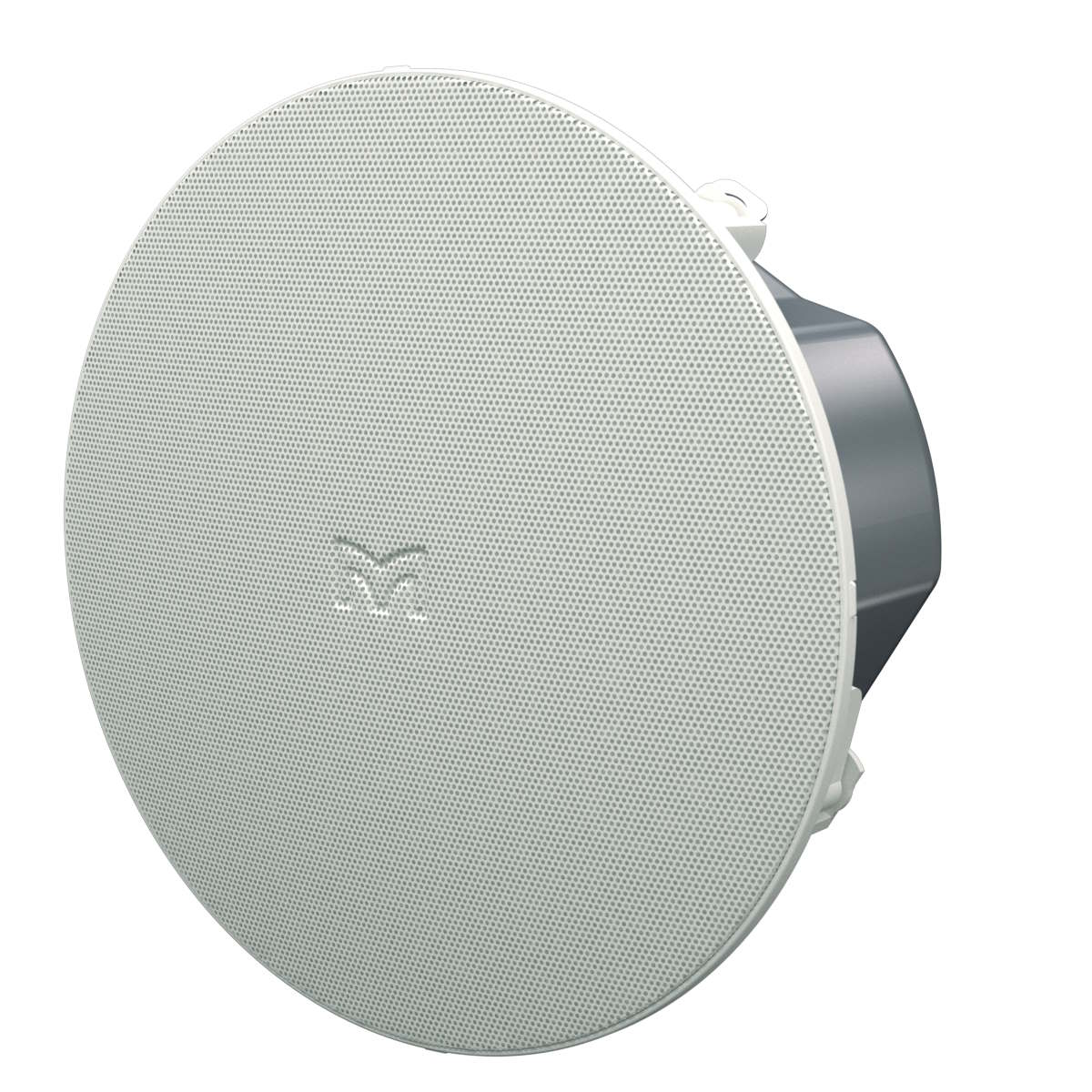

Quick release, bezel-less grille
Tile rails and C-ring included
5-year warranty
TYPE Compact, passive two-way ceiling speaker, ported bass reflex
FREQUENCY RESPONSE (1) 117Hz-20kHz ± 3dB -10dB @ 79Hz
DRIVERS
LF: 5.25” /1” high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis
HF: 0.75” silk dome, neodymium motor
RATED POWER (2) 50W AES, 200W peak
RECOMMENDED AMPLIFIER VIA2004 (for low-impedance operation)
SENSITIVITY(4) 90dB / 1W(4V) / 1m
MAXIMUM SPL (9) 113dB peak
NOMINAL IMPEDANCE 16O
DISPERSION (-6DB) 150° conical up to 7kHz
CROSSOVER 3kHz passive (LF and HF auto-resetting fuses)
TRANSFORMER TAPS 70V: 30w / 15w / 7.5w / 3.75w
100V: 30w / 15w / 7.5w
RECOMMENDED HIGH-PASS FILTER 65Hz 24dB/oct
ENCLOSURE UL 94V-0 rated ABS baffle with steel backcan
FINISH Baffle and grille: RAL9016 white Backcan: zinc plated
GRILLE Perforated steel, powder-coated, bayonet fitting
CONNECTORS Ceramic connector (in and link) located behind fire-retardant steel cover
ACCESSORIES (INCLUDED)
2 tile rails
C-ring backing plate
Cut-out template
DIMENSIONS
(OD) 245mm x (D) Back Can 100mm, (D) Inc. Grille 118mm
(OD) 9.7in x (D) Back Can 3.95in, (D) Inc. Grille 4.65in
HOLE CUT-OUT DIMENSION 222mm (8.74”) diameter
WEIGHT 2.8kg (6.2lbs)
