Professional DSP amplifier for live and mobile application
Fully integrated professional speaker processing with FIR Drive technology
Market leading acoustic performance and rock solid reliability
Intuitive system control software, makes setup and control easy

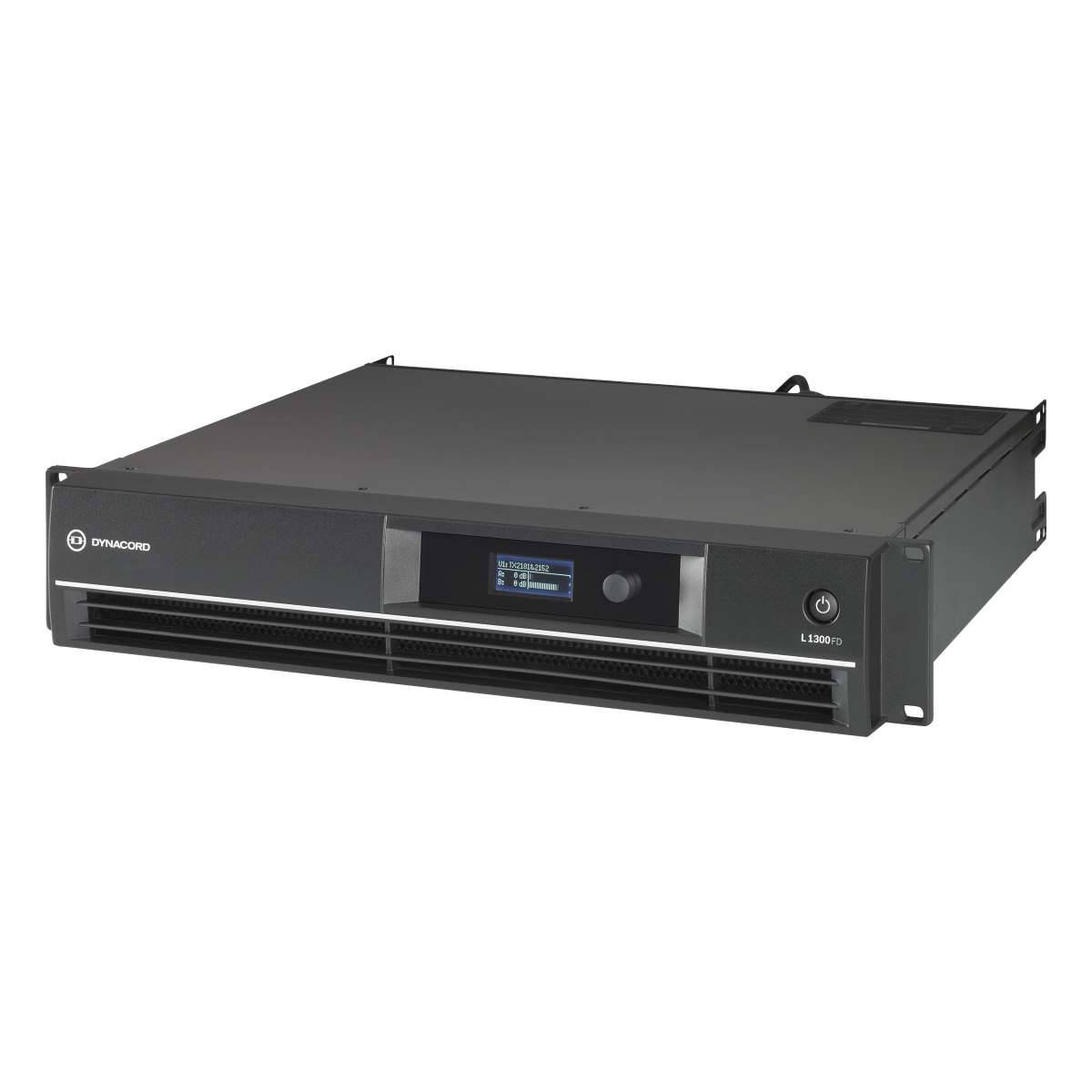

DYNACORD L Series are professional dual channel audio amplifiers for live and mobile applications. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.
Maximum Output Power, Dual Channel : 1000W into 2-ohms, 600W into 4-ohms, 320W into 8-ohms
Maximum Output Power, Bridged : 2000W into 4-ohms, 1200W into 8-ohms
Maximum RMS Voltage Swing THD = 1%, 1 kHz 55.3 V
Voltage Gain Ref.1 kHz 32.0 dB
THD at 450 W/4-Ohms MBW = 80 kHz, 1kHz < 0.05%
IMD-SMPTE, 60 Hz, 7 kHz < 0.1%
DIM30, 3.15 kHz, 15 kHz < 0.05%
Maximum Input Level +21 dBu
Crosstalk ref. 1 kHz, at 100W/4 O < -80 dB
Frequency Response, ref. 1 kHz 10 Hz to 21 kHz (±1 dB)
Input Impedance, Active Balanced 20 k O
Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 O >104 Db
Output Noise, A-weighted < -68 dBu
Output Stage Topology Class AB
Power Requirements 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption ? MaximumOutput Power @ 4 O 550 W
Mains Fuse 240 V/230 V: T10AH; 120 V/100 V: T20AH
Protection Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, In rush current limiters, Turn on delay
Cooling Front-to-rear, 3-stage-fans
Ambient Temperature Limits +5°C to +40°C (40°F to +105°F)
Safety Class I
Color Black
Dimensions (W x H x D), mm 483 x 88 x 462.4
Weight 12.9 kg (28.4 lb)
Signal Processing FIR Filters, Audio Limiters Output delay per channel, 31 band GEQ per channel, PEQ per channel, Load impedance
Accessories RMK15 (rear rack mount kit), Multi AmplifierRemote Control (MARC) software
Test signal for max. output power according IHF-A-202 (Dynamic-Headroom, burst 1 kHz/20 ms on/480 ms off/low level -20 dBu).
