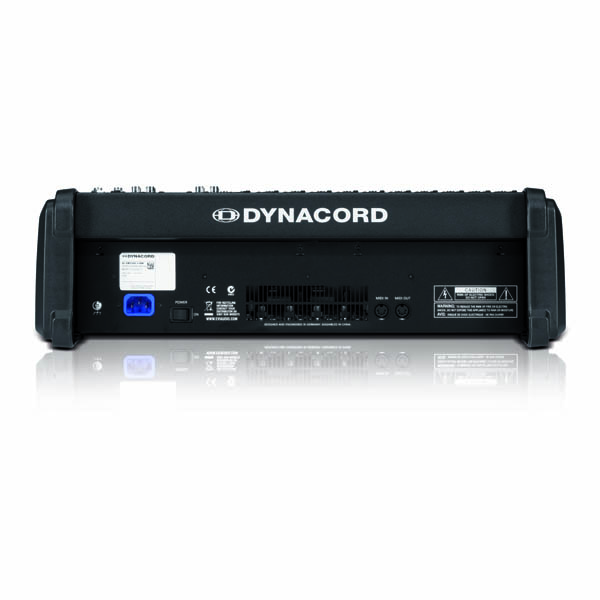

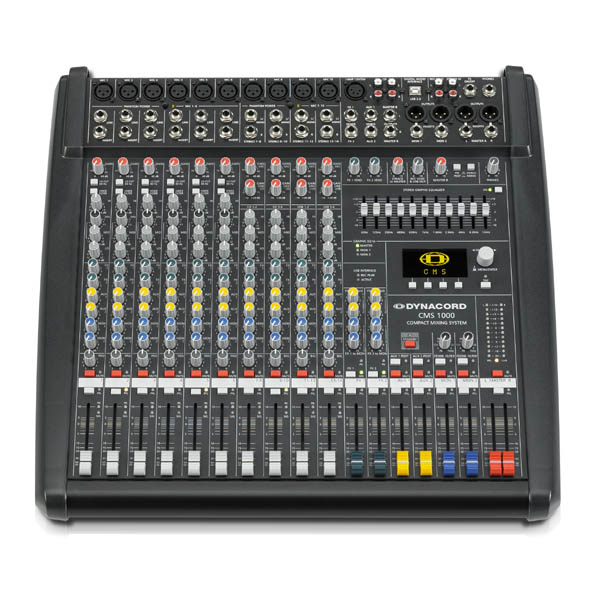

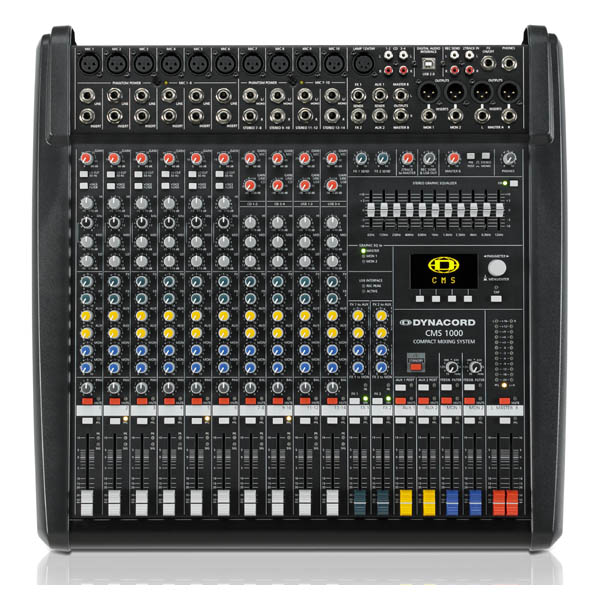

Because of their comprehensive set of integrated features like equalizer and effects units the Compact Mixing Systems CMS 1000-3, CMS 1600-3 and CMS 2200-3 are professional mixers offering an optimized all-in-one solution for basically any application.
DYNACORD CMS consoles are quickly set up. Complicated rack configuration and interference-prone wiring of several single components cease to apply. The mixer’s ergonomic console shape and clearly structured controls provide perfect overview for instant access at all times. Also during the transport you will quickly learn to appreciate the CMS’s superiority: recessed handles on the sides, compact dimensions and low weight, plus the sturdy cover (optional) that protects the controls from being damaged. However, if you would rather like to install your CMS 1000-3 in a 19inch rack shelf, no problem. The only thing you have to do is to replace the plastic side panels by a pair of metal rack mount ears.
Through its multiple functions, its high dynamic capacity, and extremely low noise design in combination with its 24-bit Dual-Stereo effect unit and the DIGITAL AUDIO INTERFACE, the CMS is best equipped for universal use.
6 Mic/Line + 4 Mic/Stereo Line Channels, 6 x AUX, Dual 24 bit Stereo Effects, USB-Audio Interface
Power Consumption (without lamp / with lamp) 45 W / 50 W
Dimensions (W x H x D, without lid), mm 510.5 x 155 x 498.5 Rack-mount: 483.0 x 135.0 x 443.7
Weight, without lid 9.5 kg (10.5 kg incl. RMK)
Optional Accessories Lid DC-LID1000
Optional Accessories Rack Mount Kit for CMS 1000 DC-RMK1000CMS
Optional Accessories Gooseneck Lamp, 12V/5W, 12inch, XLR 4 pol. DC-LITLITE-4P
Optional Accessories FS 11 (Footswitch with LED) DC-FS11
