- Overview

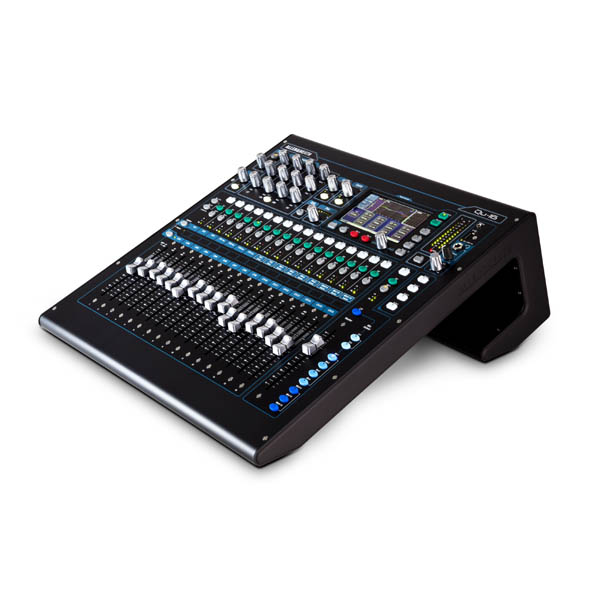

Now in a feature-packed new Chrome Edition, Qu-16 reshapes digital mixing, combining innovative design and exceptional functionality to create a superb professional mixing experience. Bristling with all the features you’d expect from a top of the range digital console and incorporating technologies pioneered on the GLD and iLive digital mixing systems, Qu-16 has the power and pedigree to deliver class-leading audio performance.
Qu series features include multitrack recording direct to USB, Automatic Mic Mixing, ProFactory mic presets, plus an ever growing ecosystem of apps, accessories and remote I/O.
Whether you’re switching from analogue or updating your digital desk, it’s time to experience the new digital with Qu-16
19 inch Rack Mountable
16 Mono Mic/Line Inputs (TRS + XLR)
Recallable AnaLOGIQTM Preamps
3 Stereo Inputs (TRS)
12 Mix Outputs (XLR)
7 Monitor Mixes (4 mono + 3 stereo)
4 FX Engines
2 dedicated FX Sends / Returns
4 Mute Groups
4 DCA Groups
AES Digital Out
24×22 USB Audio Interface
dSNAKETM Remote Audio Port
17 Motor Faders
800×480 Touchscreen
4 Soft Keys
Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
Automatic Mic Mixer
Channel Ducker on all Inputs
ProFactory Mic Presets
iLive FX Library
Built-in Signal Generator
RTA with Peak Band indication
Spectrogram to aid feedback elimination and room acoustics
Qu-Drive Direct Multitrack Recording / Playback on USB drives
DAW MIDI Control
Qu-Pad iPad App
Qu-You iPhone / Android personal monitoring app
Qu-Control customisable iOS app for simple wireless control
Compatible with ME Personal Mixing System
High contrast metallic finish controls, matching premium GLD Chrome series
AR2412 – 24 inputs, 12 outputs AudioRack with dSNAKE connection and expansion port for personal monitoring.
AR84 – 8 inputs, 4 outputs AudioRack with dSNAKE connection.
AB168 – Portable, rugged 16 inputs, 8 outputs stagebox with dSNAKE connection and expansion port for personal monitoring.
AH9650 – 100m drum of EtherFlex Cat5 with locking Neutrik EtherCon connectors.
AH9981 – 50m drum of EtherFlex Cat5 with locking Neutrik EtherCon connectors
AH9651 – 20m of Neutrik EtherFlex Cat5 with locking Neutrik EtherCon connectors.
LEDLamp – variable brightness 18” gooseneck lamp.
QU-16-RK19 – Rack mounting kit.
AP9262 – Dust cover for Qu-16.
AP9931 – Qu-16 Carry Bag.
