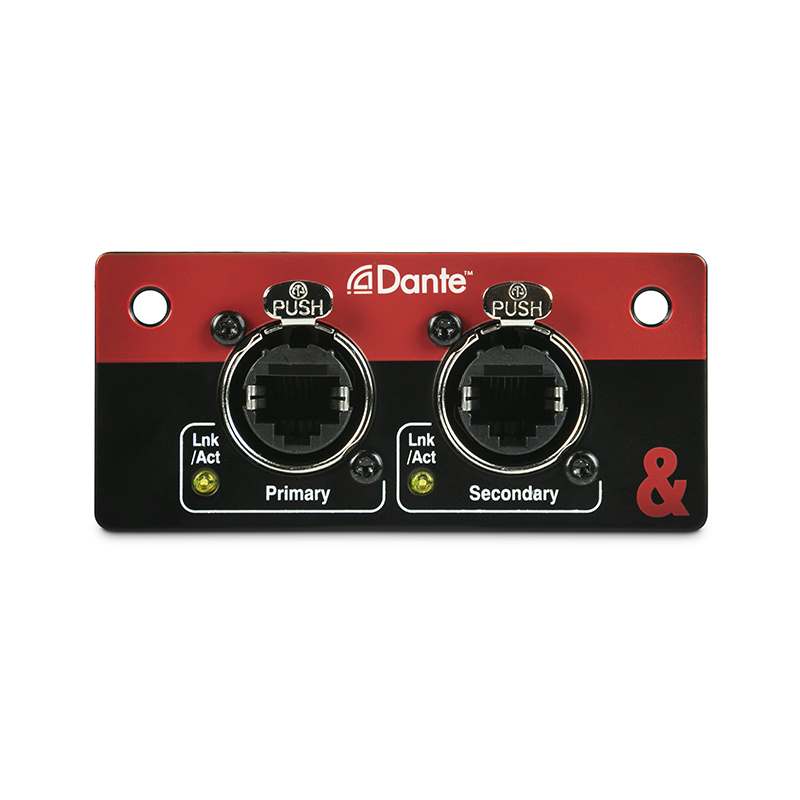

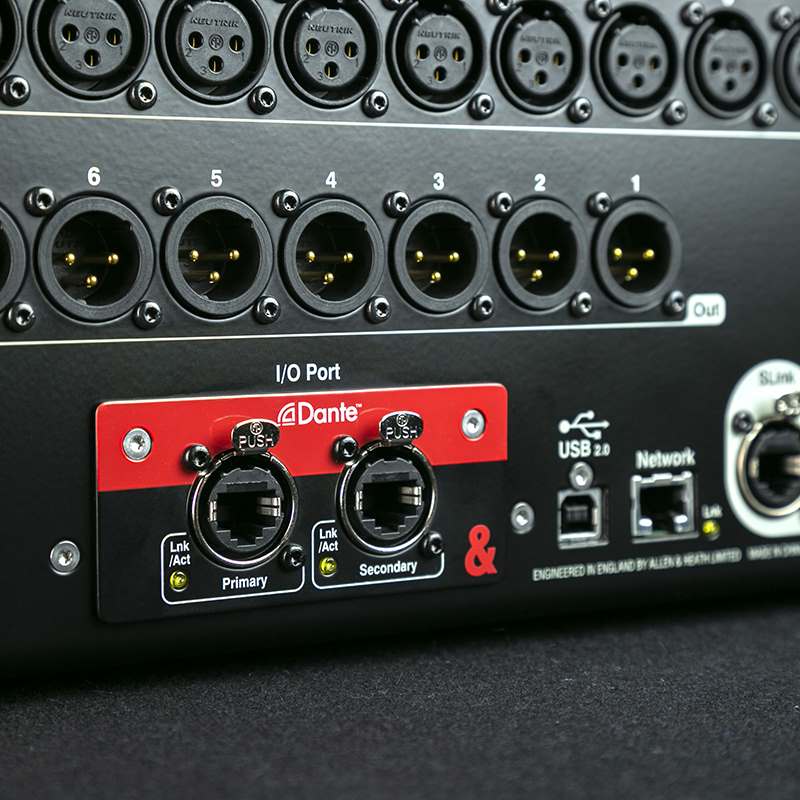

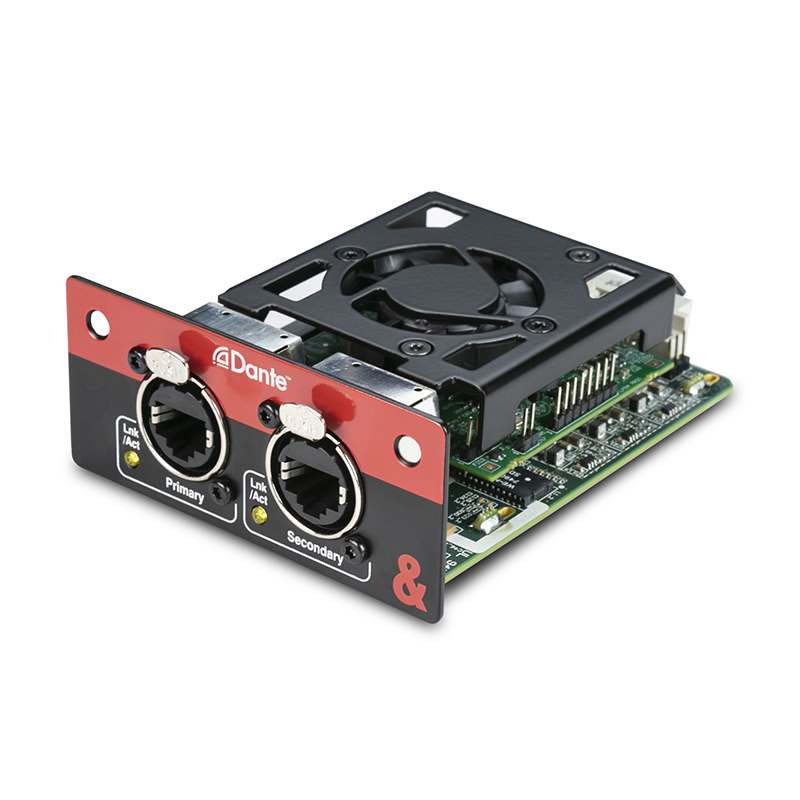

Dante® module for SQ series mixers. New V3 version. Now compatible with SQ and the AHM mixer series. Enables the SQ or AHM mixer to connect to an Allen & Heath DT168 stagebox or any other Dante enabled device.
SQ Dante provides any SQ mixer with a full 64×64 channel, 96kHz or 48kHz interface to a Dante network. An SQ fitted with the Dante option card can seamlessly connect to amplifiers, preamps and other devices on the Dante network, making full use of SQ’s high resolution 96kHz audio.
The SQ Dante card can be switched between 96kHz or 48kHz to accommodate Dante networks running at either sample rate. In addition to facilitating system integration, the card also enables digital splits and affordable multitrack recording direct to a computer.
64×64 channel audio and control over a network
96kHz or 48kHz operation
Multichannel recording / playback using Dante Virtual Soundcard*
Two ports with redundant and switch modes
Internal Control Network Bridge
Locking Ethercon connectors
Dante Domain Manager ready
AES67 compatible
