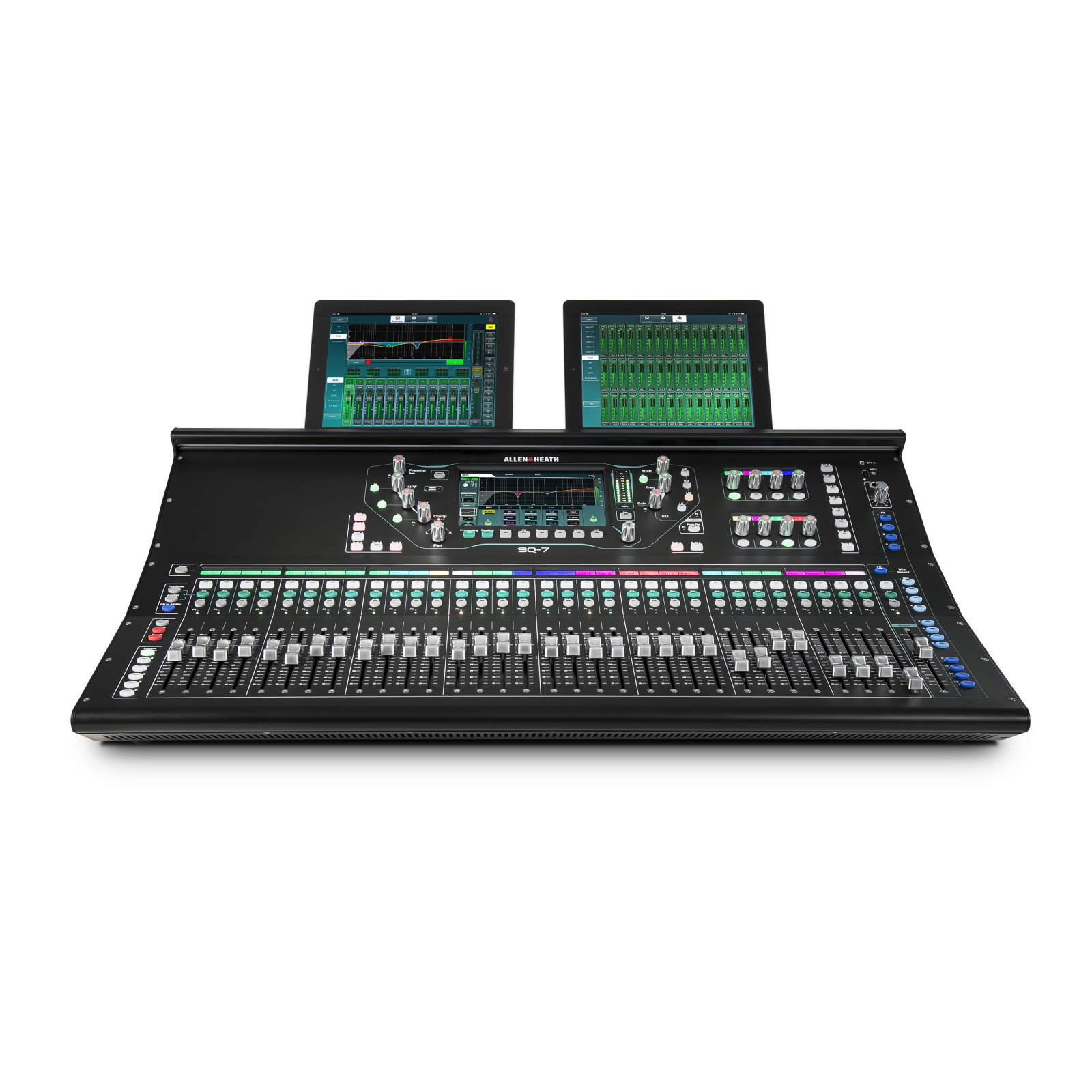

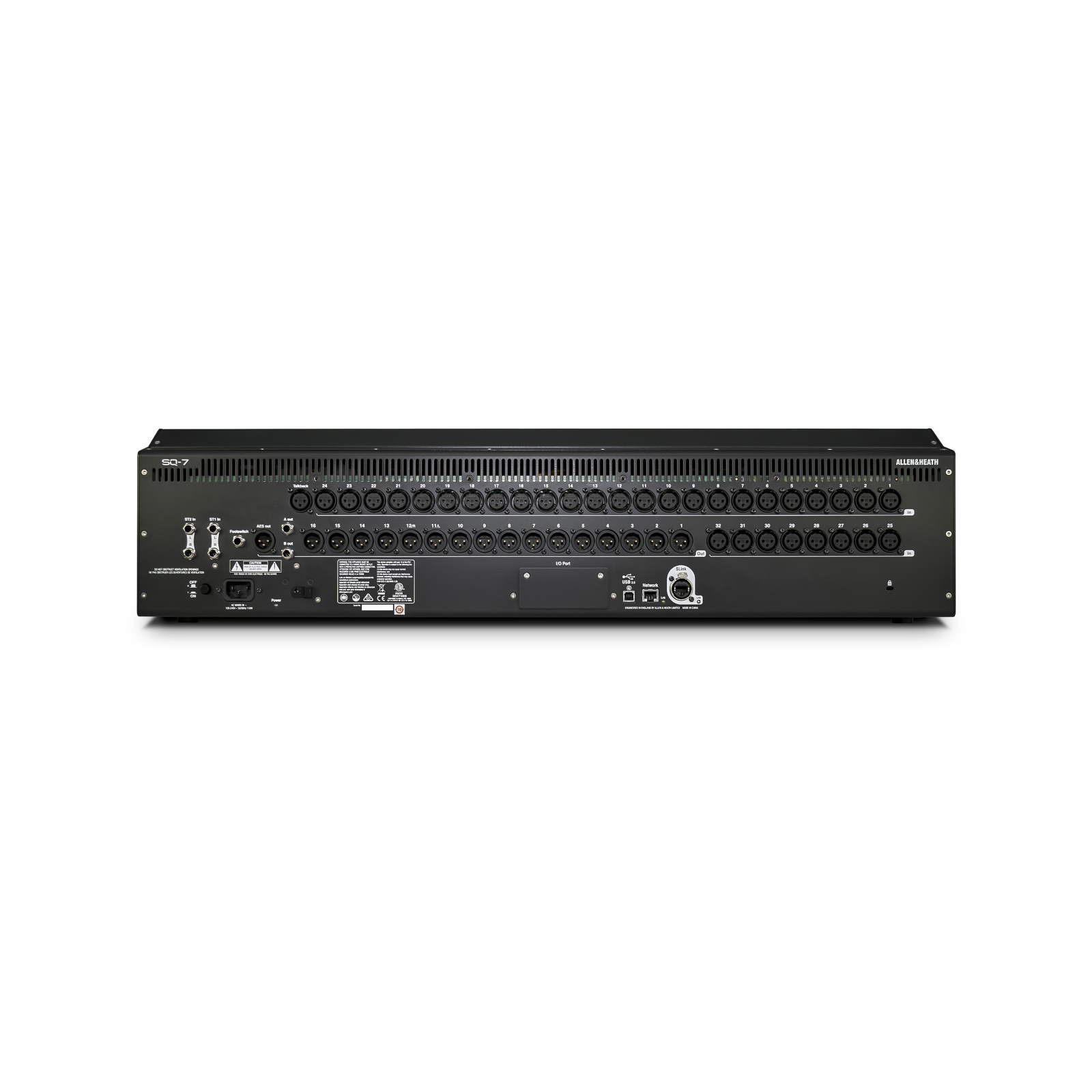

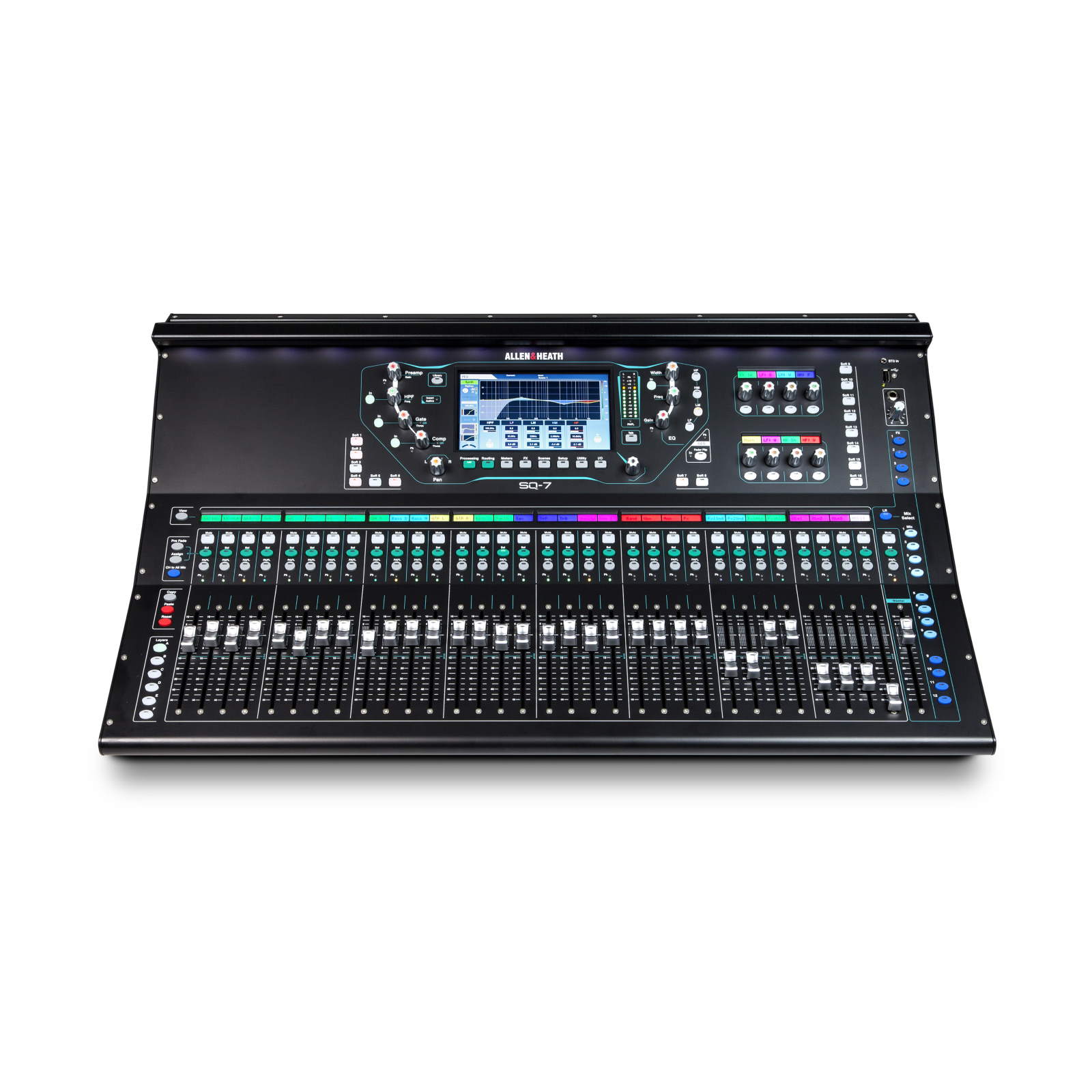

The Allen & Heath SQ-7 is the 33-fader flagship console in the SQ series, powered by Allen & Heath’s revolutionary 96kHz XCVI FPGA engine. Created to excel in demanding scenarios such as AV, corporate events, live productions and houses of worship, SQ-7 offers pristine high-resolution audio quality and an ultra-low latency of <0.7ms. The console features 32 exceptional onboard mic preamps, plus 8 stereo FX engines with dedicated stereo return channels and access to the renowned RackExtra FX library. SQ is a natural choice for in-ear monitor setups, providing 12 stereo mixes (configurable as groups or auxes), whilst Automatic Mic Mixing makes it an excellent choice for conferences, panel talks and more.
96kHz FPGA processing
48 Input Channels
DEEP Processing ready
33 Faders / 6 Layers
12 Stereo mixes + LR
3 Stereo Matrix
8 Stereo FX Engines + dedicated stereo returns
7inch capacitive touchscreen
SLink port for remote audio / expansion
64ch I/O Port for audio networking
32×32 USB audio interface
SQ-Drive direct recording to USB
AES output
Chromatic channel metering
Integrated LED illumination
Dedicated physical controls
16 Assignable SoftKeys
8 Assignable Soft Rotaries
Channel LCD displays
SQ-7 Width x Depth x Height
Desk mounted 804 x 514.9 x 198 mm (31.7" x 20.3" x 7.8")
Packed in shipping box 960 x 685 x 360 mm (37.8" x 27" x 14.2")
Unpacked weight 17.8 kg (39.3 lbs)
Packed weight 21.9 kg (48.3 lbs)
