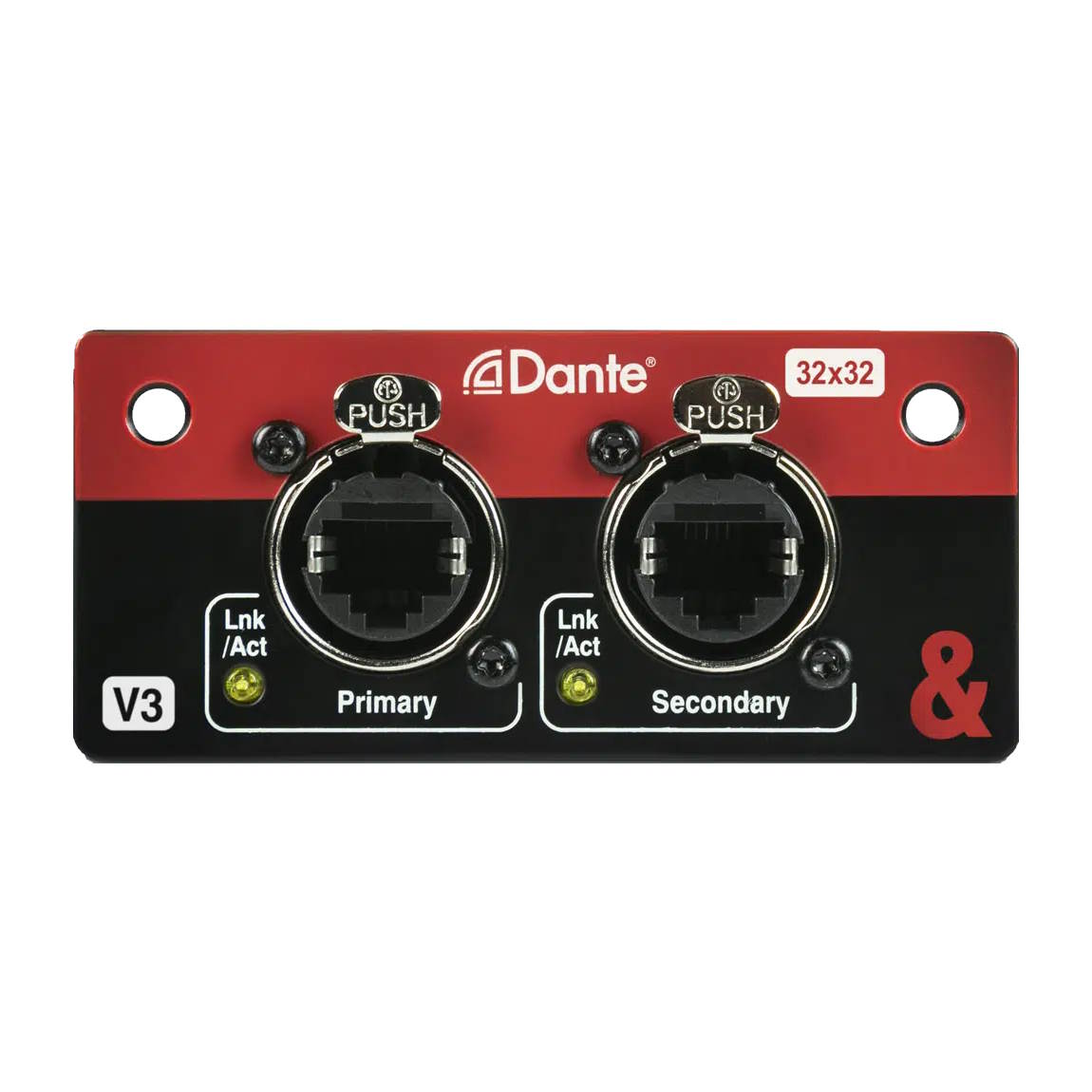

SQ Dante 32×32 provides any SQ mixer or AHM processor with a full 32×32 channel, 96kHz or 48kHz interface to a Dante network.
An SQ or AHM unit fitted with the Dante option card can seamlessly connect to DT expanders, wireless systems, amplifiers, preamps and any other devices on your Dante network, making full use of high-resolution 96kHz audio. The SQ Dante card can be switched between 96kHz or 48kHz to accommodate Dante networks running at either sample rate. In addition to facilitating system integration, the card also enables digital splits and affordable multitrack recording direct to a computer.
As well as making it easy to integrate AHM processors into existing Dante networks, it also enables use of our Dante enabled expanders, including the compact and portable DT22, DT02 and DT20, the wallmountable DT164-W, and the DT168 stagebox.
32×32 channel audio and control over a network
96kHz or 48kHz operation
Multichannel recording / playback using Dante Virtual Soundcard (available separately)
Two ports with redundant and switch modes
Internal Control Network Bridge
Locking Ethercon connectors
Dante Domain Manager ready
AES67 compatible
Compatible with SQ and AHM
