DT20 is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs wherever you need to get analogue audio into a Dante network.
Ideal for both fixed installation and AV hire / live applications, DT20 can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as in third party Dante systems.
Thanks to its compact format, DT20 can be easily mounted under a table, podium etc. for local mic connection – or rack-mounted wherever required – on stage, or at FoH.
The unit can be PoE powered or powered via a DC 12V supply.
Included items :
DT20
DC 12V power supply
Rubber feet
Dante input interface, 48kHz/96kHz

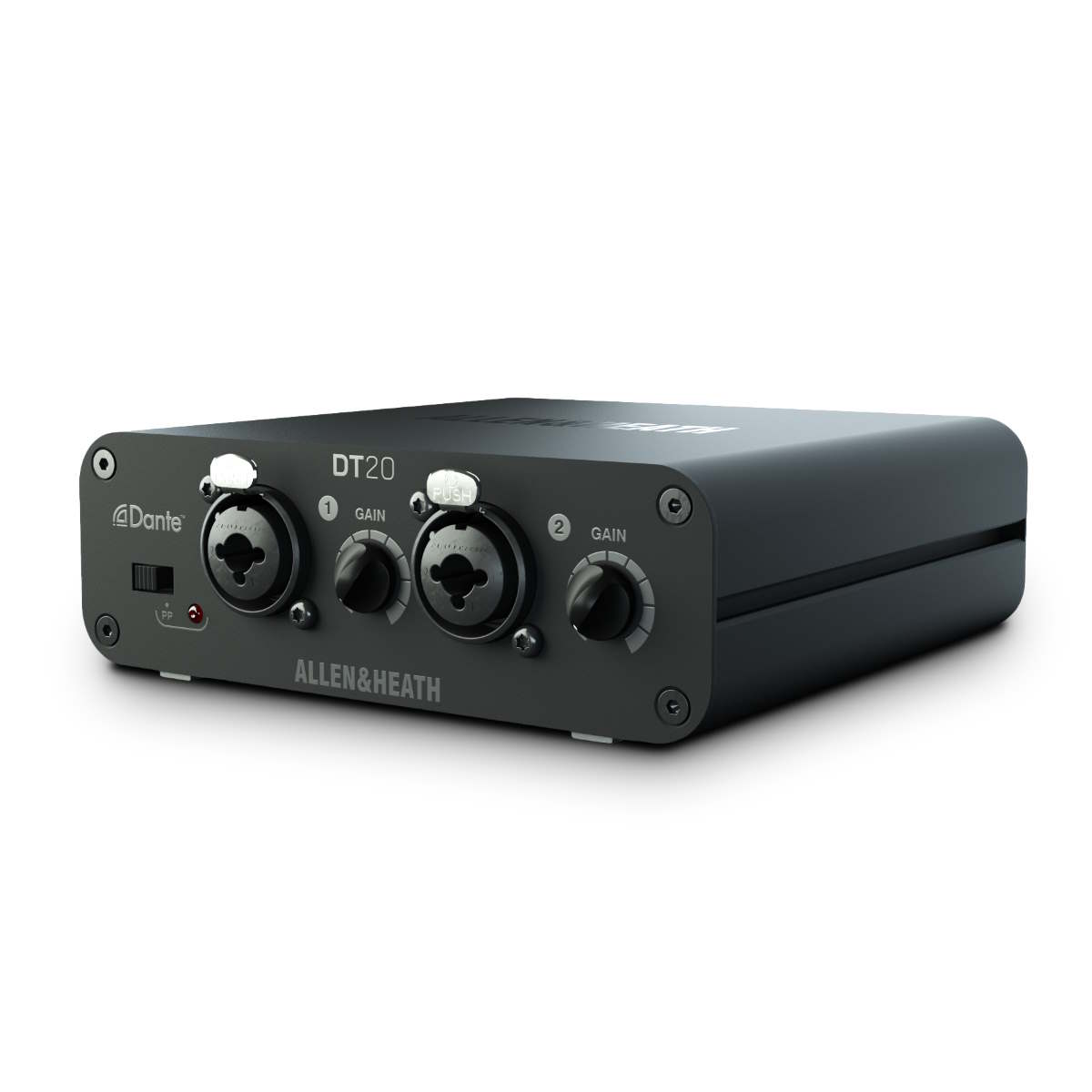

2x combi mic/line inputs
Local gain control
48V phantom power with LED indicator
PoE powered or DC 12V

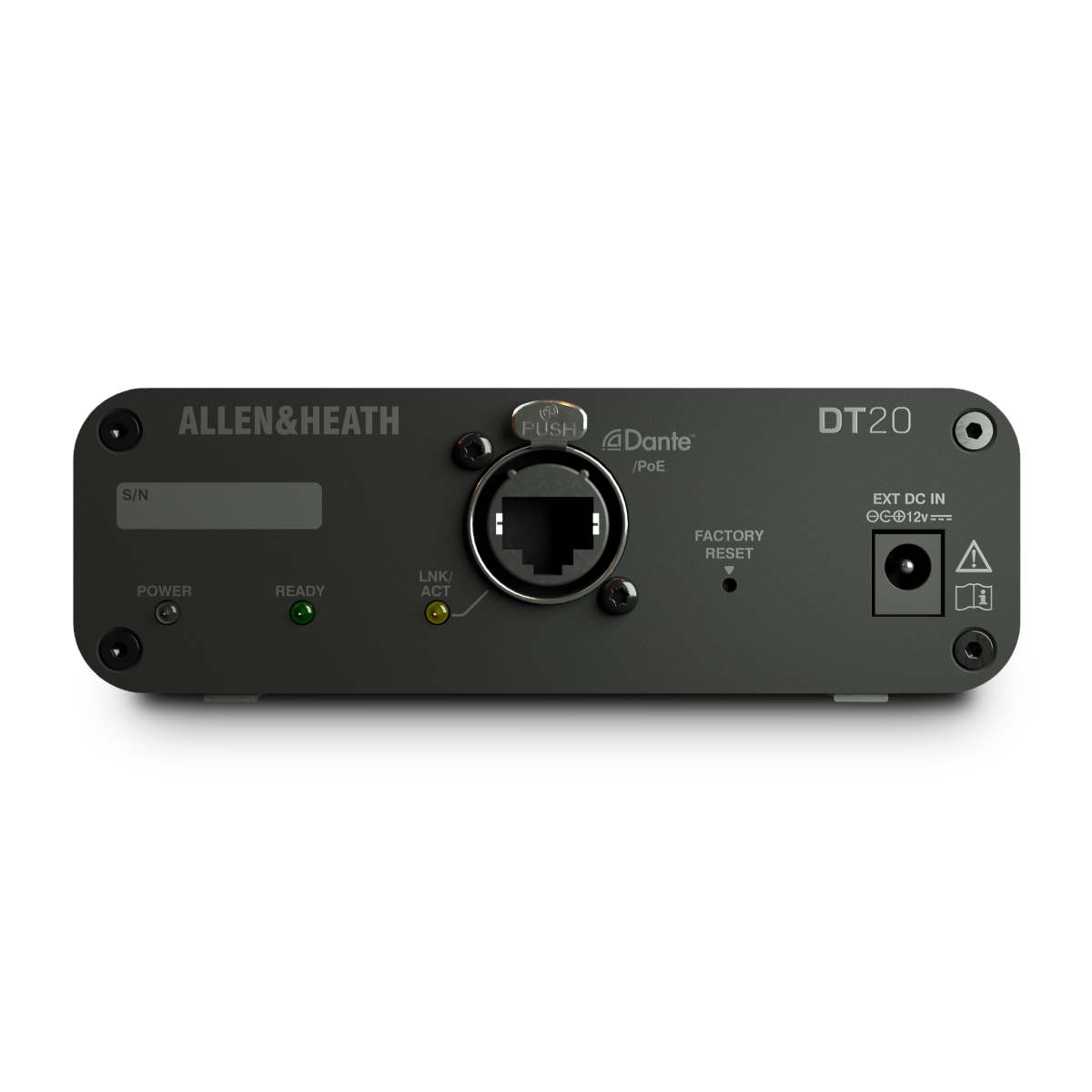

EtherCon connector
Rugged aluminium box

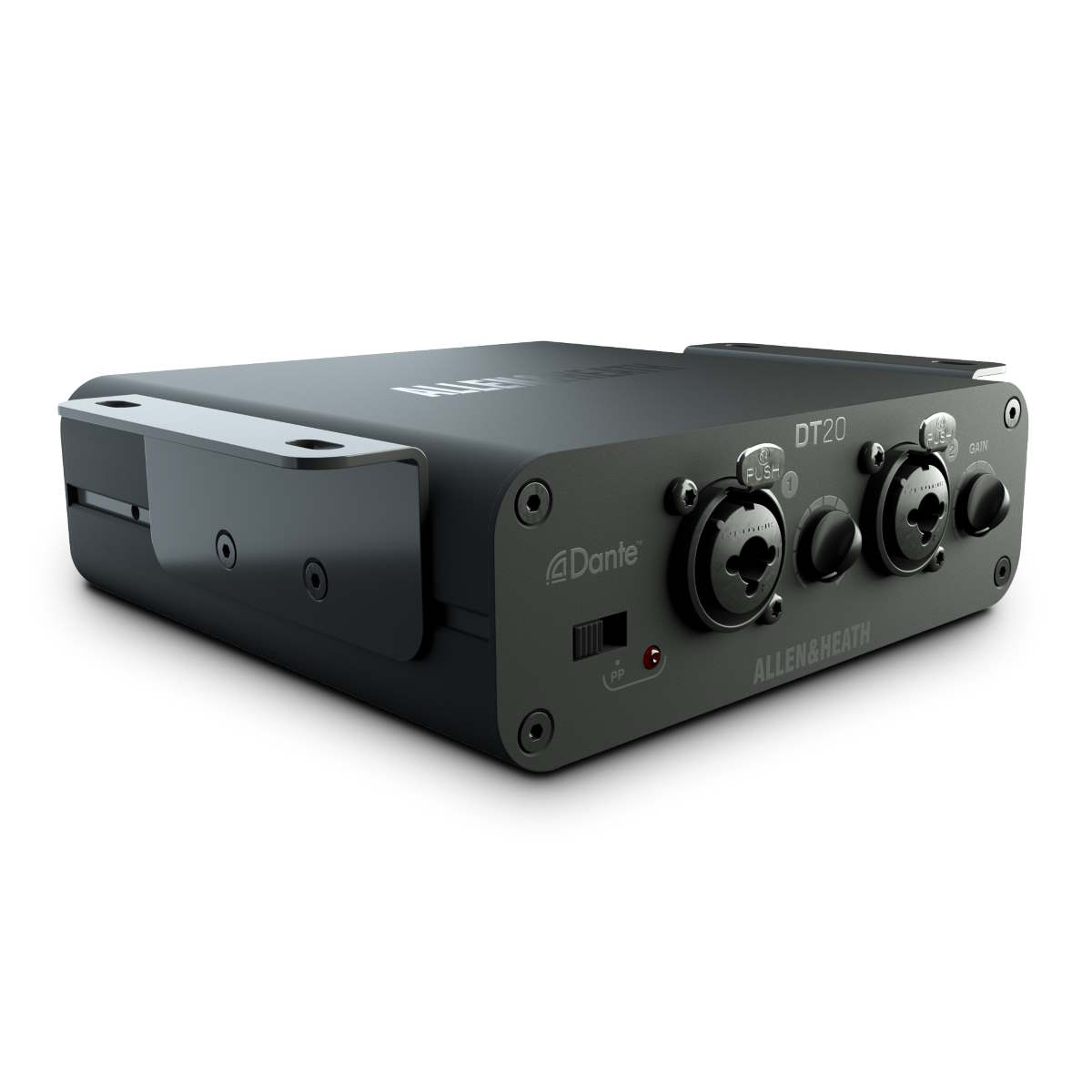

Optional ears for surface mounting (included in DT20-M version)

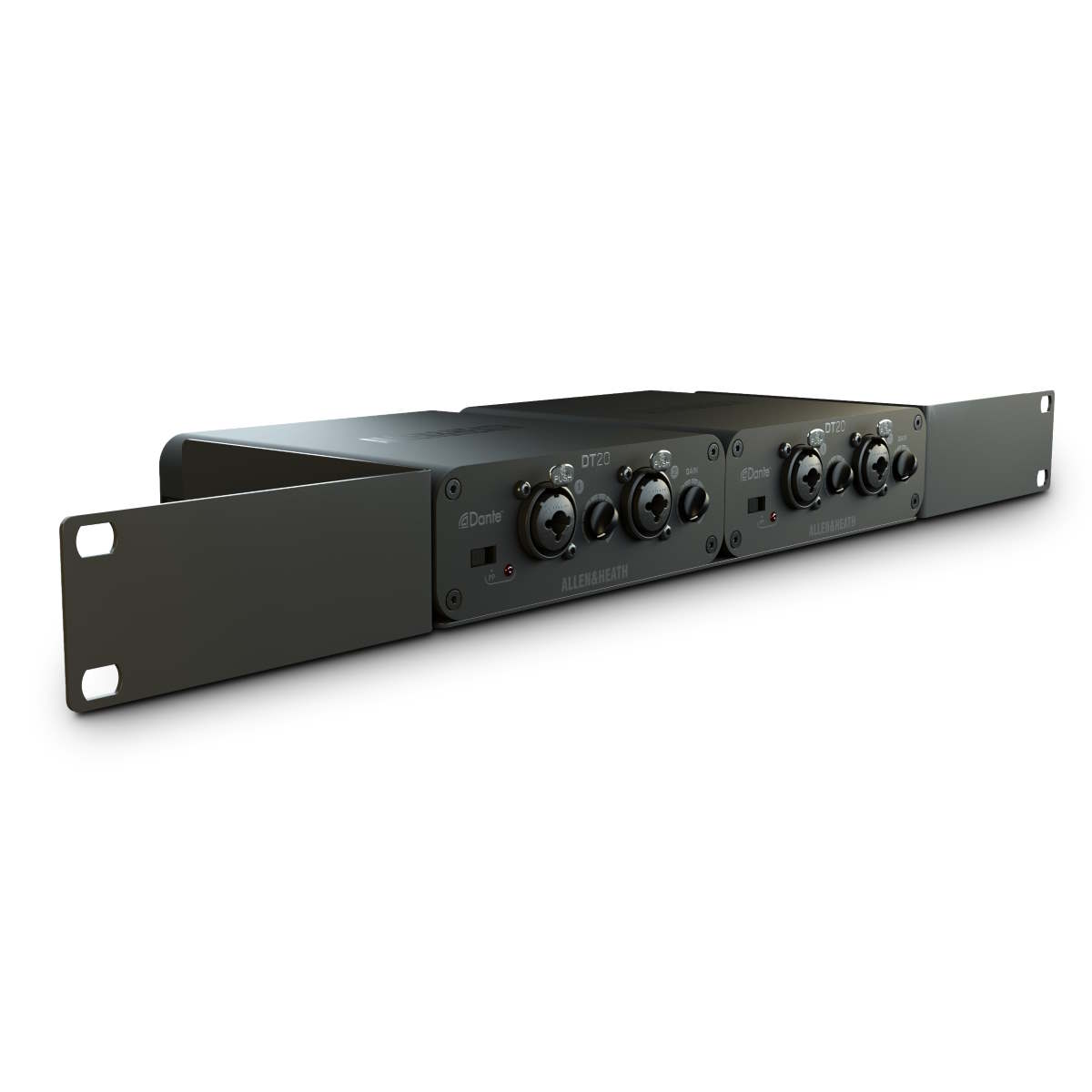

Optional rack mounting kit DT-RK19
AES67 compatible
Dante Domain Manager ready
Mic/Line Inputs
Mic Inputs Balanced XLR, +48V phantom
Analogue Gain 0 to +55dB
Line Inputs Balanced TRS, -20dB PAD
Maximum Input Level +30dBu (TRS in)
Input Impedance >4kO (XLR), >10kO (TRS)
Dante 48kHz/96kHz
Power and Temperature
DC Input +12V DC 1.25A
Power Consumption 10W max
Operating Temperature Range 0°C to 40°C (32°F to 104°F)
PoE Requirements 802.3af 15W
Dimensions and Weight Width x Depth x Height x Weight
DT20 130 x 136 x 43 mm, 0.5kg
(5.1” x 5.4” x 1.7”, 1lbs)
