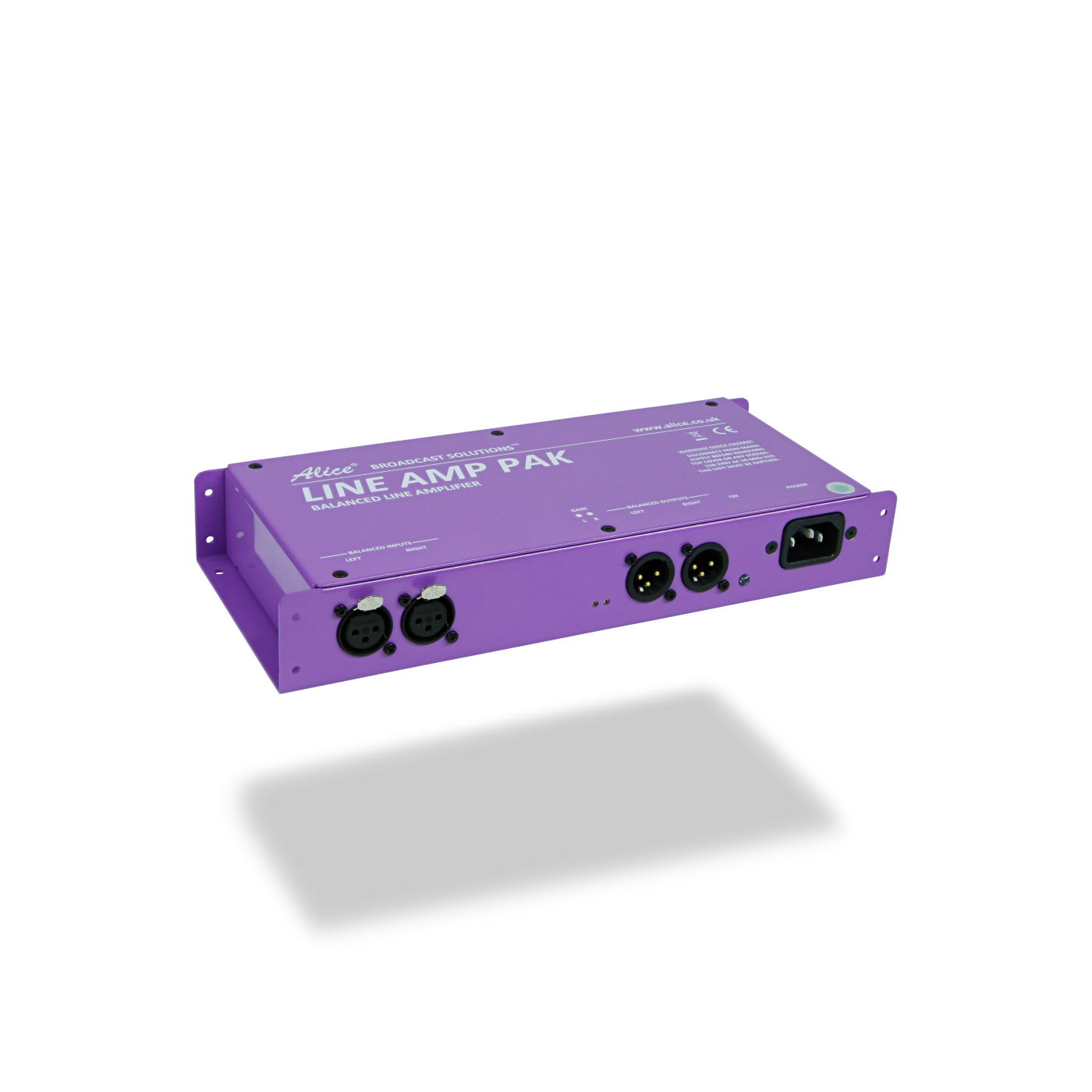

The Alice LinePak MKII is a dual balanced-input to balanced-output amplifier with variable gain via accessible multi-turn pre-sets on the front panel.
Audio inputs and outputs are via Neutrik connectors and may be wired unbalanced if required, enabling the unit to be used for unbalanced to balanced conversion or vice versa, or as a convenient line buffer amplifier.
Mains input is via a UK IEC connector with supplied lead (2m).

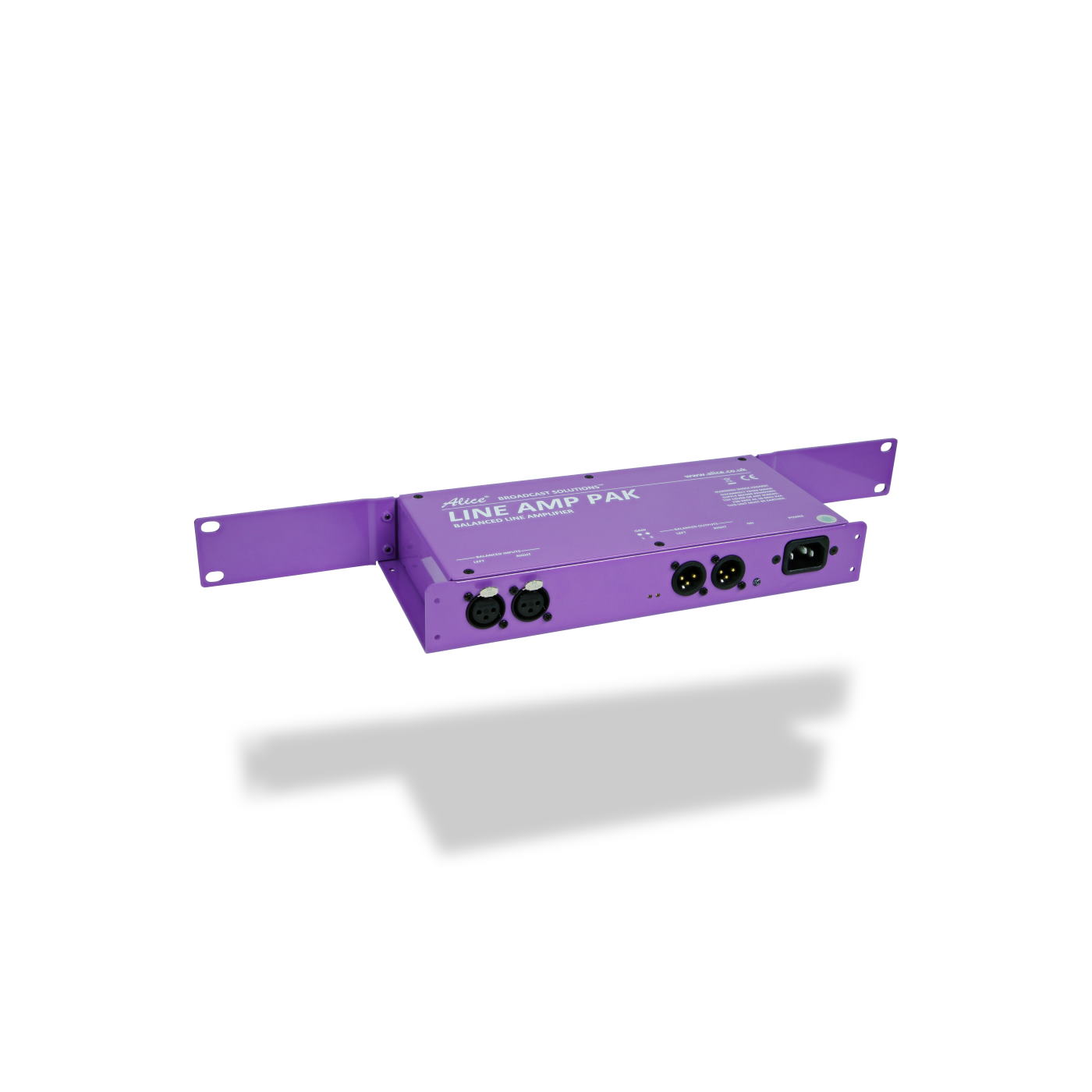

Rack mountable kit is supplied as standard.
Input impedance: 20k ohms balanced (can be terminated at 600 ohms via internal link)
Frequency response: 20Hz to 20kHz ±0.2dB
Common-mode rejection: >60dB
Noise at unity gain: –100dB ref. +8dBu
Distortion: <0.005% 1kHz, +8dBu output
Crosstalk: better than -95dB at 1kHz
Gain adjustment: 10dB loss to 22dB gain
Max. input level: +25dBu
Max. output level: +25dBu
Output impedance: <1 ohm balanced and floating
0dBu = 0.775 volts RMS
Mains supply: 230 V AC 3VA (115V available to order)
Power consumption: 3VA
Dimensions: 275 (W) x 115 (D) x 42 (H)
Shipping Weight: 1.25Kg
