The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system.
A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.
Features
1400 W, two-way amplification
131 dB max SPL
1.7" voice coil neodymium compression driver
2 x high power neodymium 6.0"woofers
48 kHz, 32 bit floating point DSP processing
Symmetrical design
Extremely low weight
FiRPHASE processing
Acoustical Specifications
Frequency Response -3 dB:
65 Hz ÷ 20000 Hz
Max SPL:
131 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
10°
Compression Driver:
1.0" neo, 1.7" v.c.
Woofer:
2 x 6" neo, 2.0" v.c.

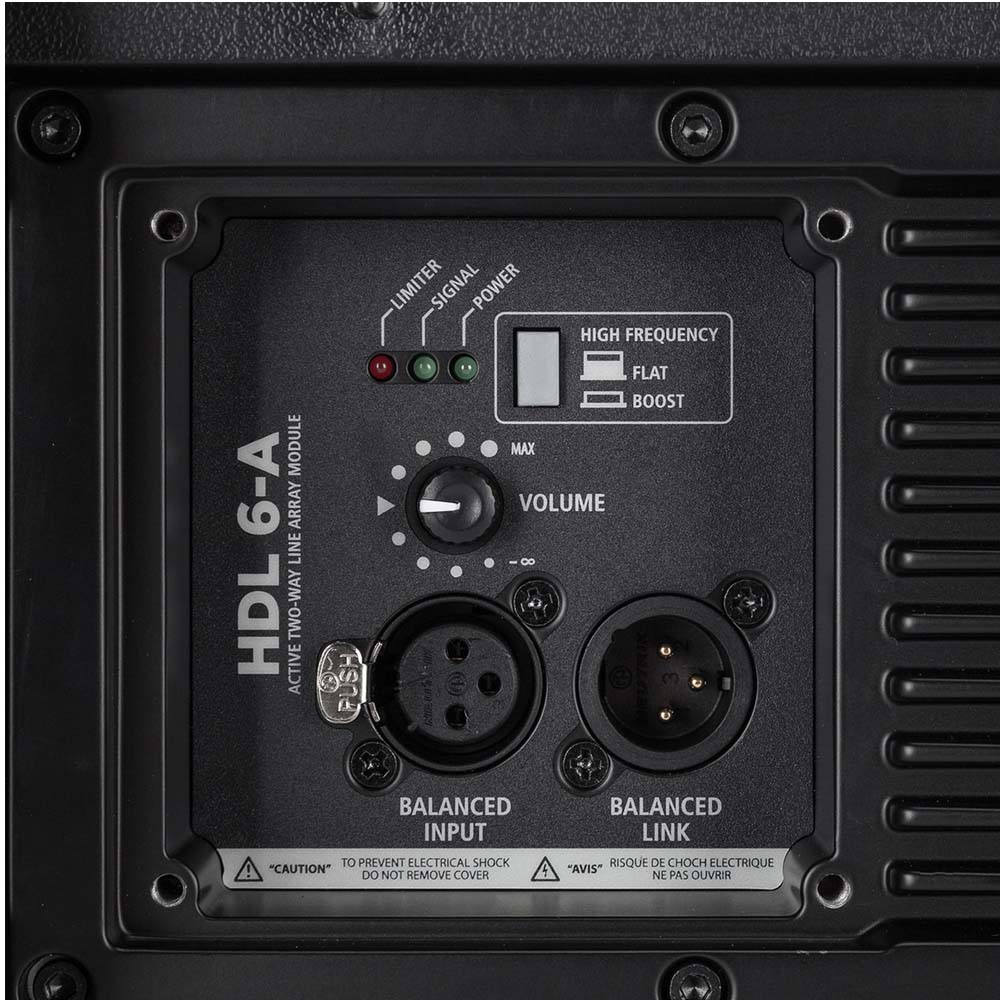

Input/Output Section
Input connectors:
XLR male
Output connectors:
XLR female
Input sensitivity:
+4 dBu
Processor Section
Crossover frequencies:
900 Hz
Protections:
Thermal, RMS
Limiter:
soft limiter
Controls:
HF correction
Amplifier Specifications
Total power:
1400 W PEAK
High frequencies:
400 W PEAK
Low frequencies:
1000 W PEAK
Total power:
700 W RMS
High frequencies:
200 W RMS
Low frequencies:
500 W RMS
Cooling:
convection

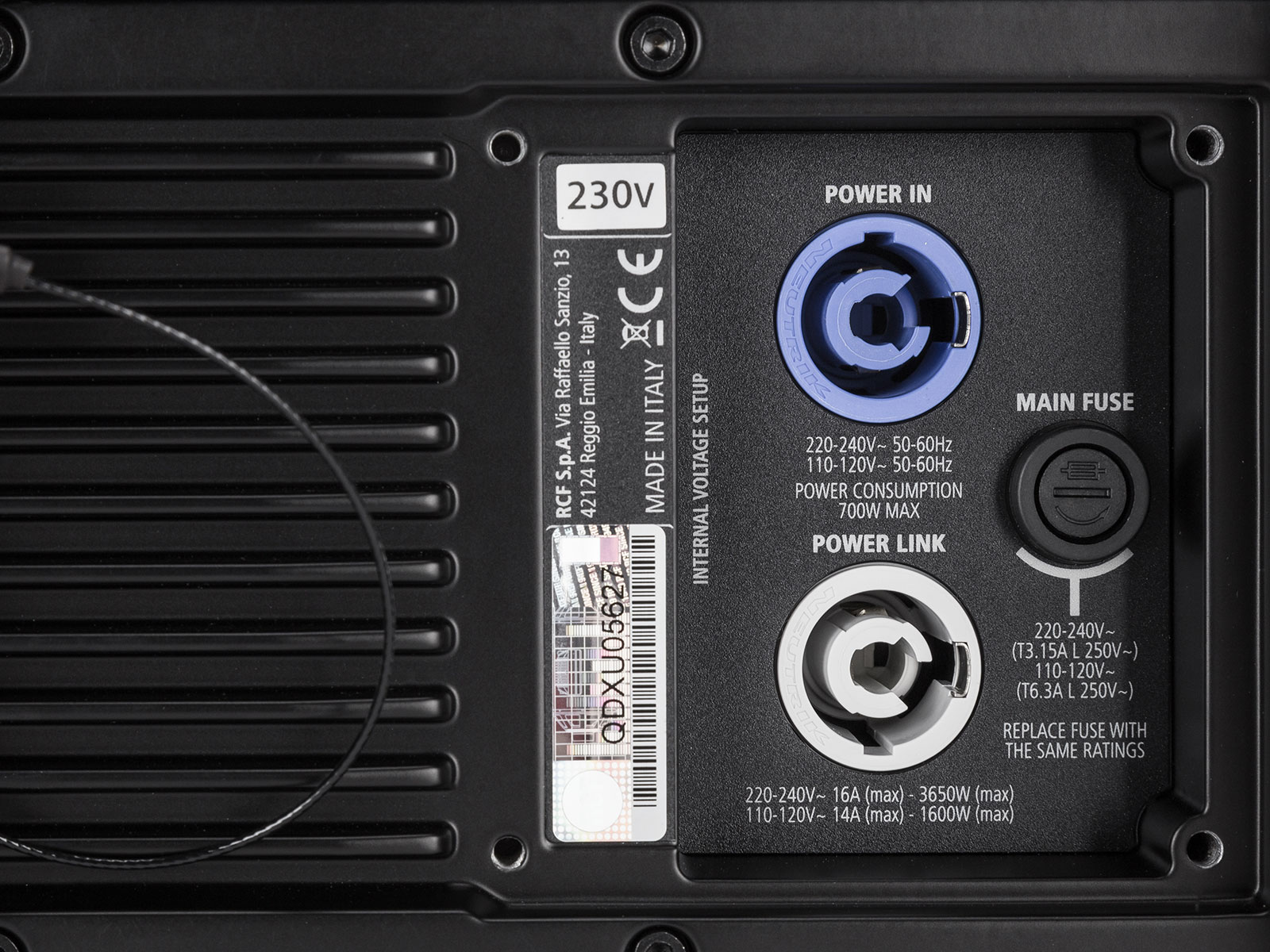

Connections:
Powercon in-out
Cabinet
Cabinet Material:
Composite PP

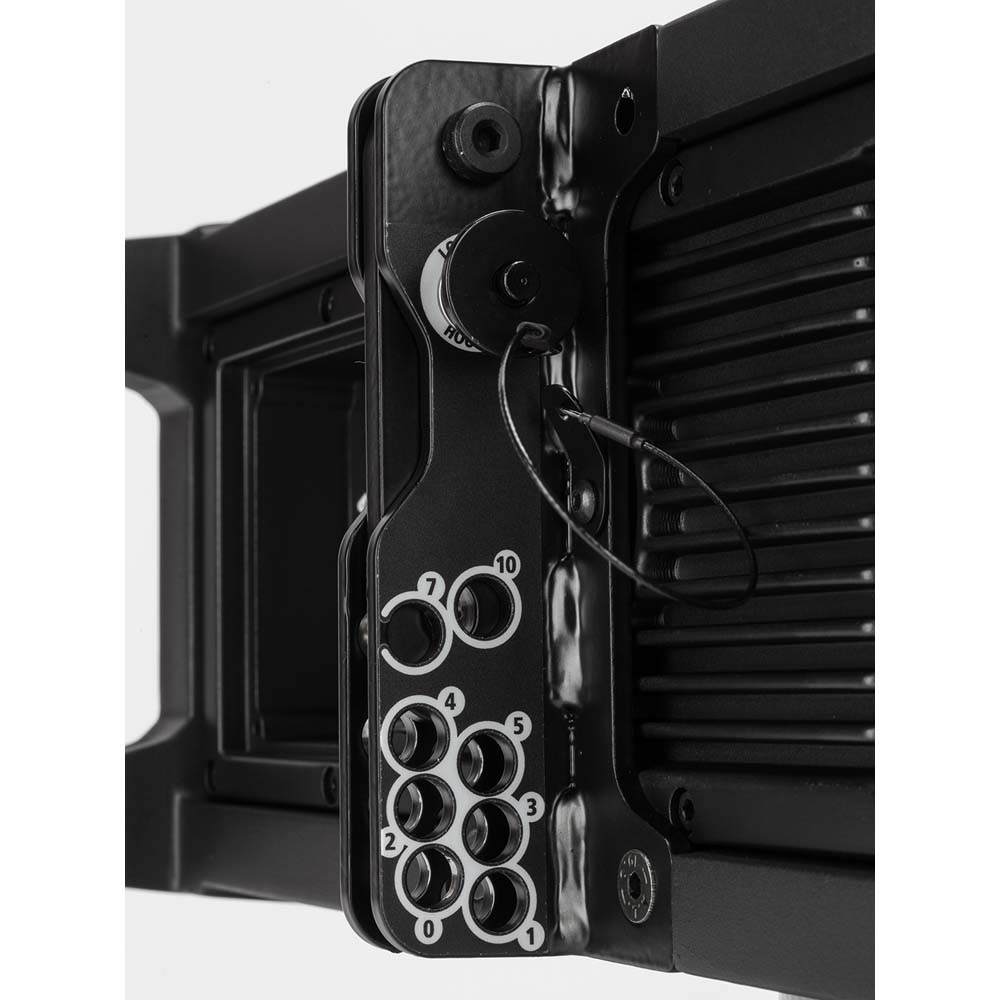

Hardware:
array fittings
Handles:
2 back
Colour:
black
Physical Specifications
Height:
237/9.3 mm/inch
Width:
470/18.50 mm/inch
Depth:
377/15.0 mm/inch
Net Weight:
11.5/25.35 kg/lbs
