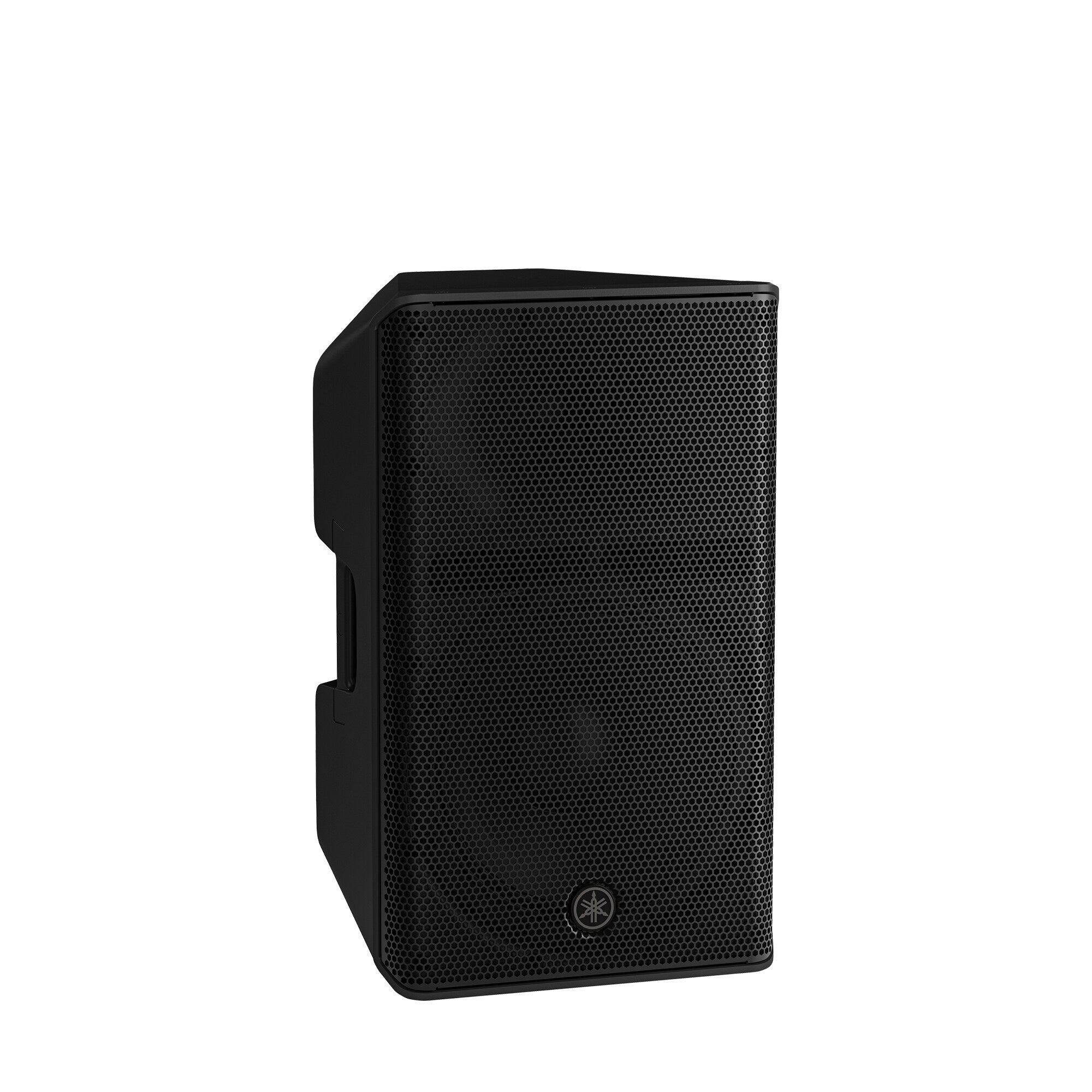

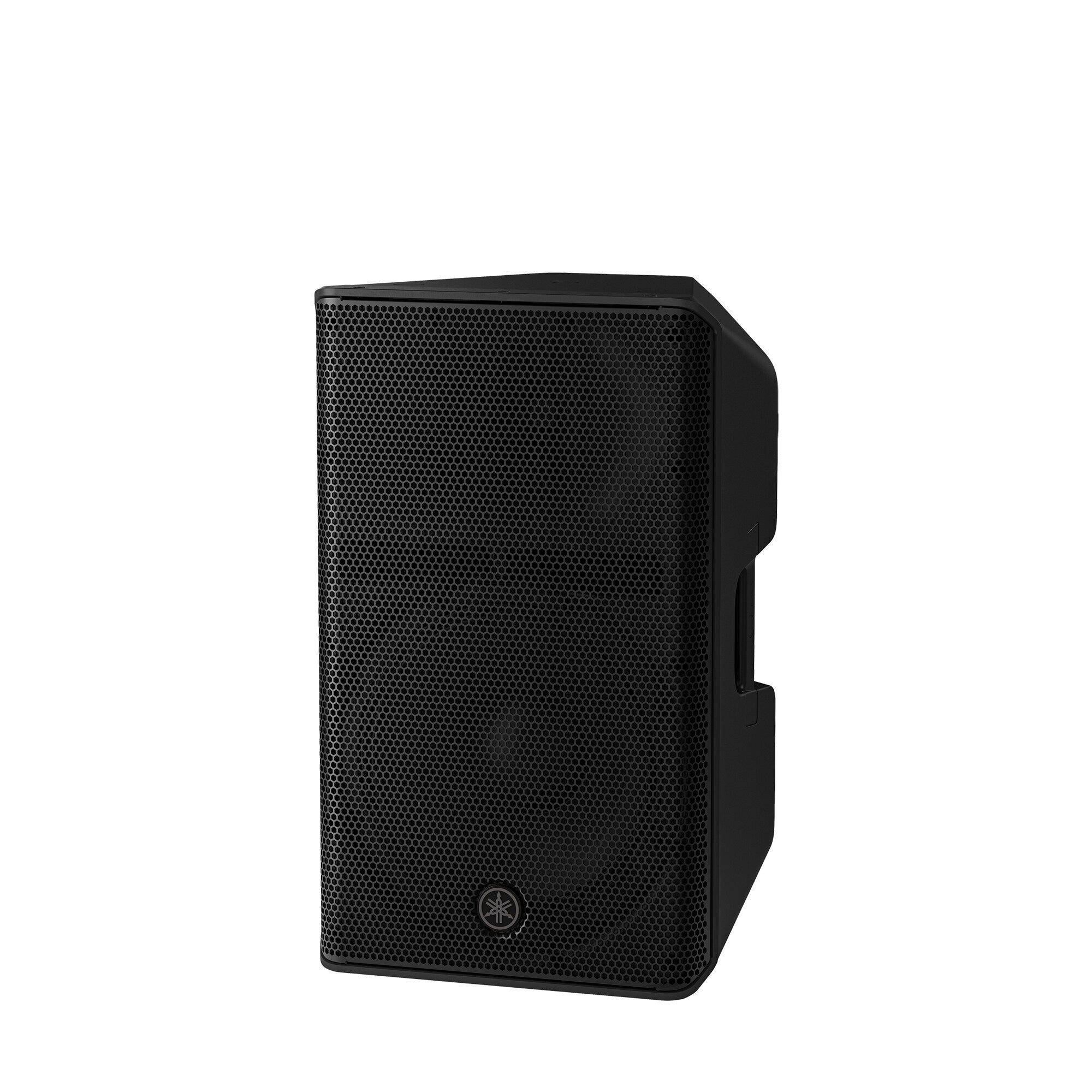

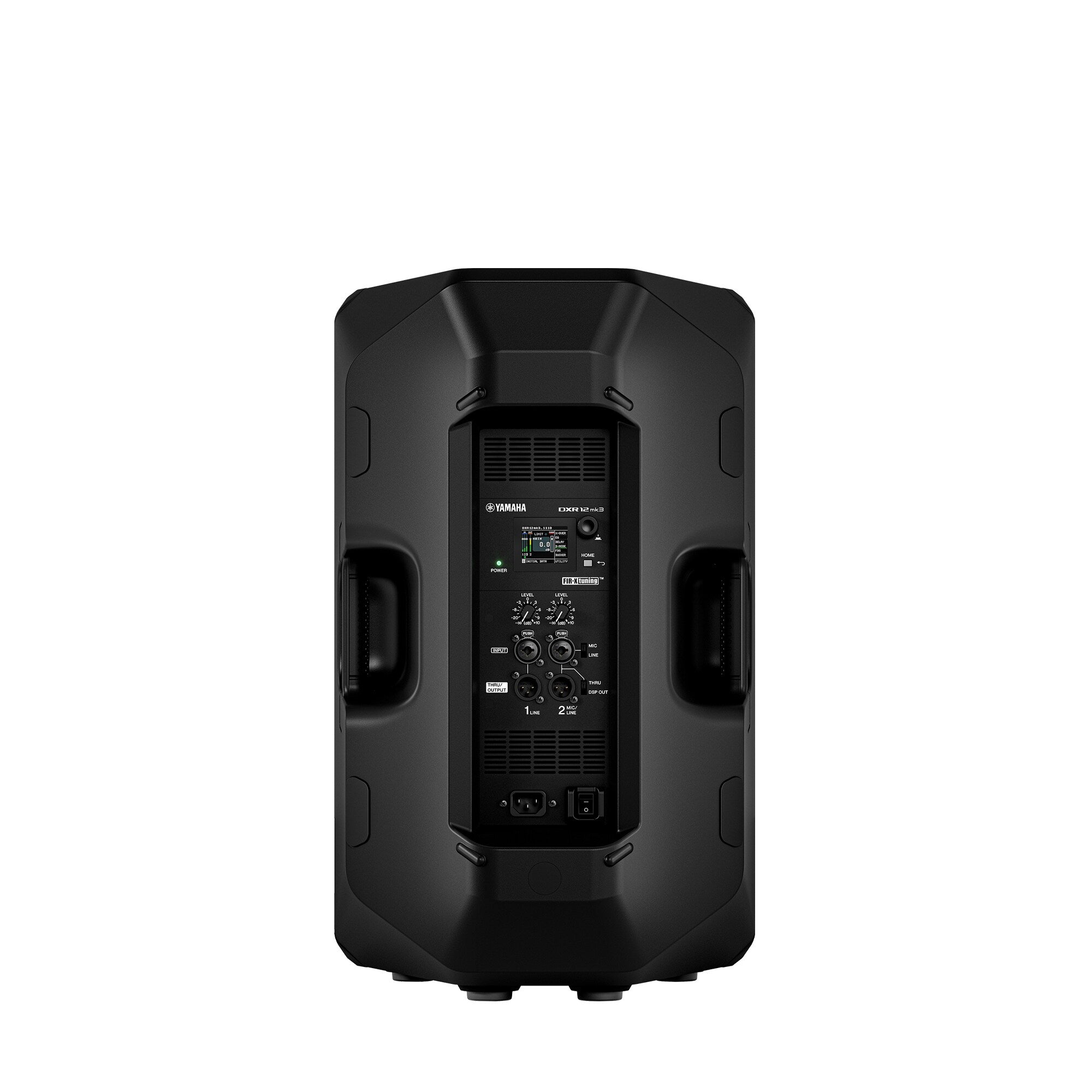

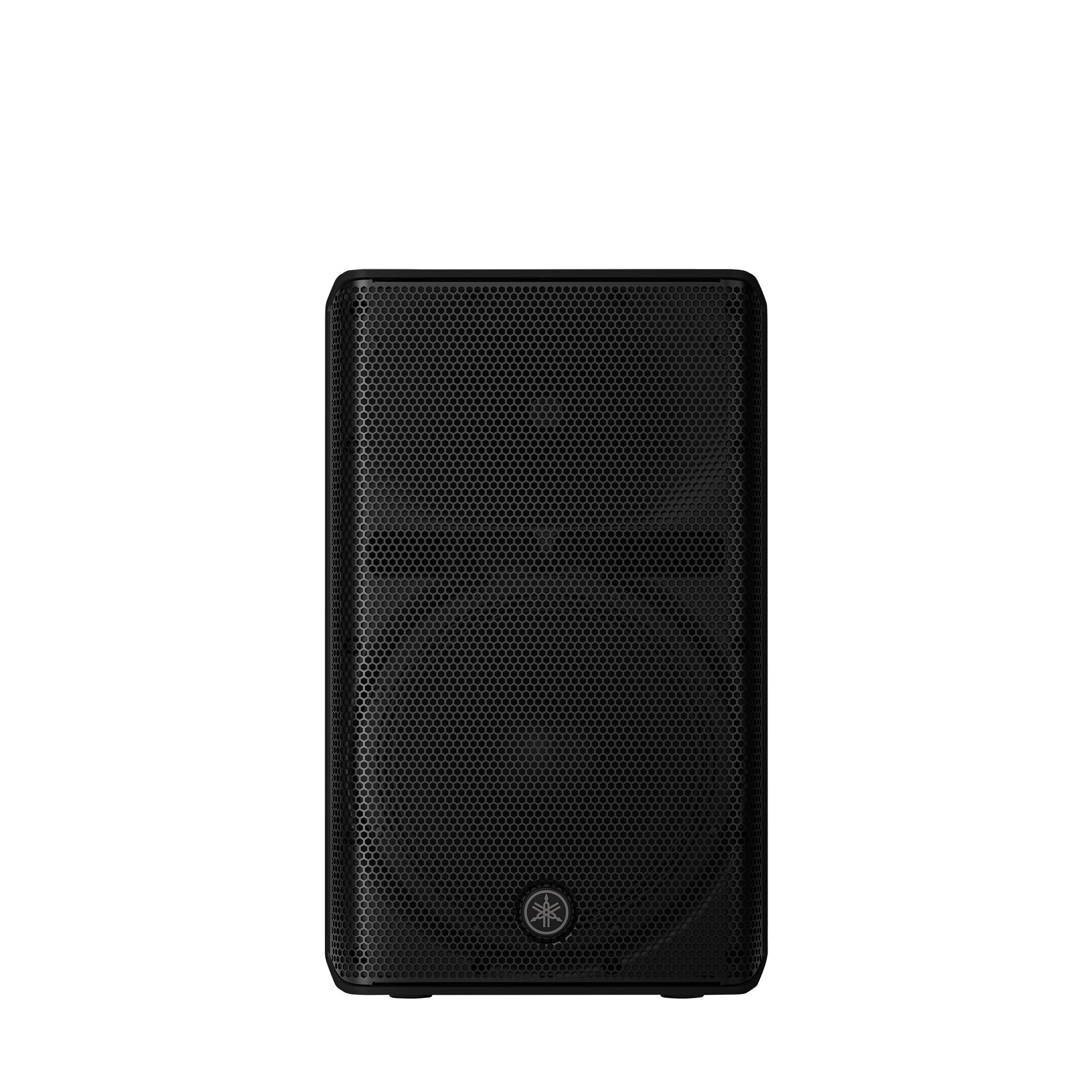

The DXR12 mk3 is a 2-way, bi-amped, powered loudspeaker that delivers a perfect balance of portability and performance, delivering exceptional clarity, precision, and a powerful 134 dB SPL output. Ideal for front-of-house use, floor monitoring applications, or even as stage side fills—the DXR12 mk3 is an excellent choice for a wide range of sound reinforcement needs. Advanced DSP capabilities and a dedicated remote app add significantly more flexibility, with powerful features that enhance the overall user experience.

12" LF + 1.75" HF proprietary high-durability speaker units
The large-diameter horn secures directivity control across a wide frequency range
Optimized port positioning reduces standing wave effects
Lightweight, high-performance, form-injection molded enclosure with a symmetrical, functional design
Newly developed 2000W Class-D amplifier
FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
Drive Motion Calibration™, corrects the motion of the LF unit, producing a more linear low-frequency sound with high reliability
DSP modes tailored for specific arrangements or applications. In particular, FOH/MAIN and MONITOR modes have an automatic setting function "AUTO V/H POSITION"
Can be controlled remotely via an iOS or Android device using the dedicated D-Remote app
Compatible with audio streaming via Bluetooth®
Intelligent feedback suppressor automatically eliminates unpleasant feedback
Rigging points for use with eye bolts
Dual-angle pole sockets offer both 0° or a -7° down tilt

Speaker type 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB) 50 Hz - 20 kHz
Coverage area H90ﾟ x V60ﾟ
Crossover 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
Maximum Output Level (Measured peak, IEC noise@1m) 134 dB SPL
Components LF Diameter: 12" cone, Voice Coil: 2.5"
HF Diaphragm: 1.75", Type: 1" throat compression driver
Amplifier class Class-D
Power rating PEAK 2000 W (LF:1700 W, HF:300 W) *1
RMS 1000 W (LF:850 W, HF:150 W) *2
Cooling Fan Cooling, 5 Speeds
Power consumption 120 W (1/8power), 35 W (Idle)
Power requirements 100 V - 240 V 50/60 Hz
A/D D/A Converters 32 bit/96 kHz Sampling
Processors HPF: OFF, 50 Hz - 118 Hz, 12 dB - 48 dB/Oct.; DSP-MODE: FOH/MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, OFF
I/O Connectors Analog Input INPUT1: Combo x1, Impedance 20 kΩ (balance) 10 kΩ (unbalance), Maximum Input Level +24 dBu; INPUT2: Combo x 1, Impedance 6 kΩ (balance) 3 kΩ (unbalance), Maximum Input Level +24 dBu (Line) -6 dBu (Mic)
Analog Output OUTPUT1: XLR3-32 THRU; OUTPUT2: XLR3-32 THRU or DSP OUT
Bluetooth Ver.5.0, A2DP (SBC, AAC), Class 1 *3
Others D-Remote (iOS/Android app)
Cabinet material Plastic (PP)
Finish Black
Handle Side x2
Pole socket Φ35 mm x2 (Bottom, 0° or -7°)
Rigging Top x 2, Rear x 1 (Fit for M10 x 18 mm Eyebolts), Bottom x2, Side x 2 (Fit for M8 x 25 mm UB-DXRDHR12A)
Floor Monitor Angle 52ﾟ
Dimensions W 366 mm (14.4")
H 600 mm (23.6")
D 350 mm (13.8")
Net weight 17.4 kg (38.4 lbs)
