Tascam MX-8A Eight-channel Matrix Mixer with DSP

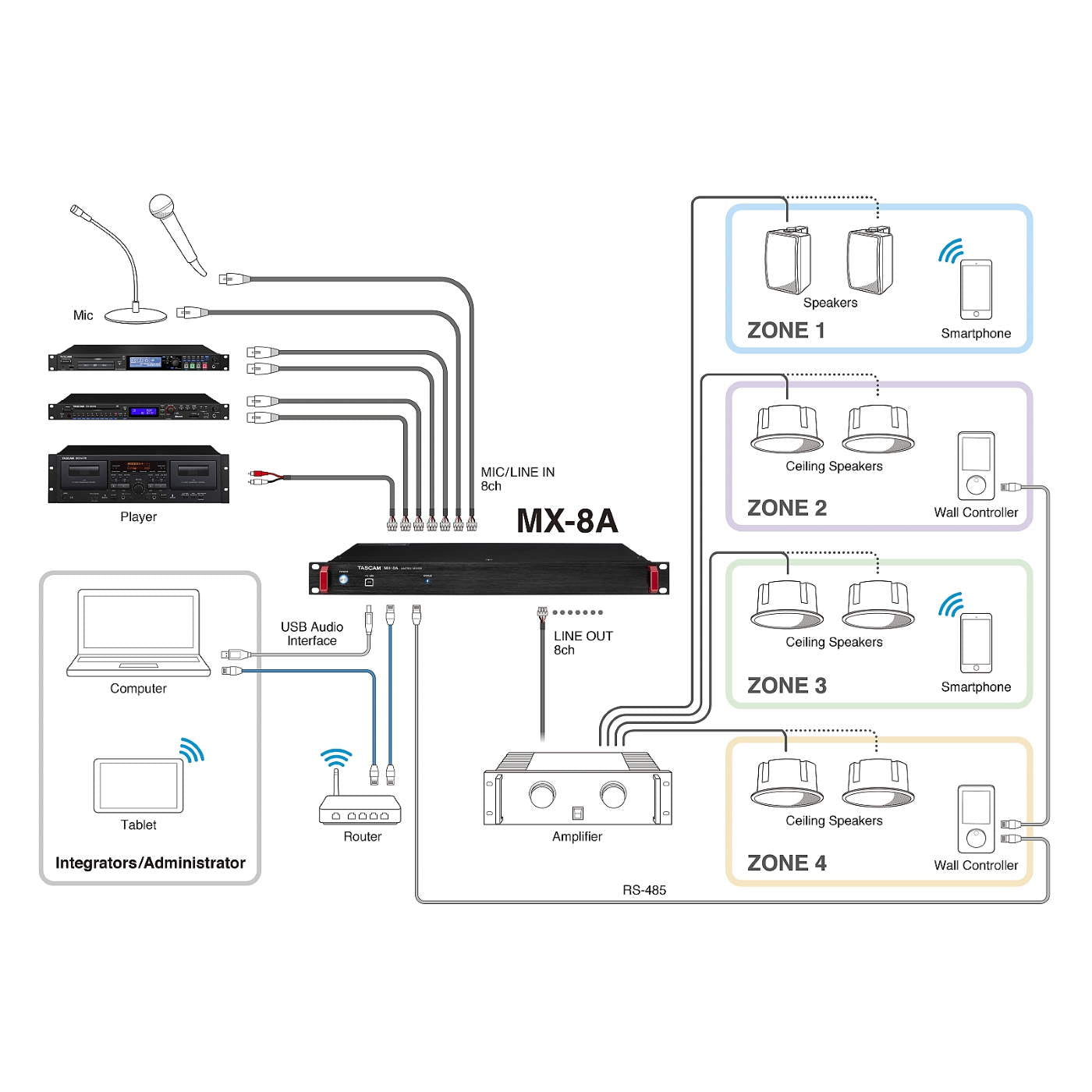

The MX-8A is a 10×10 matrix mixer with eight mic/line inputs, eight line outputs and stereo USB I/O compatible with software- or cloud-based conferencing platforms. It offers powerful internal DSP mixing and routing plus multiple audio processing functions and is ideal for many applications including meeting rooms, huddle spaces, court rooms, restaurants, stores, banqueting rooms and others.

DSP functions include a compressor, four-band parametric EQ and auto level control for each input. The output section features a 10-band EQ with high/low-pass filter, delay, and a limiter function per output, all of which can be adjusted and saved to any of the 50 scene memories, along with the mixing/routing settings. To make audio for announcements clearer, automatic ducking and an ambient noise compensator are also available.

The MX-8A has natural-sounding, high-grade Tascam mic preamps, leveraging our knowledge and experience from many years of making pro audio equipment. The input level range is –77.5 dBu to +26 dBu, with equivalent input noise achieving less than –126 dB, and a signal-to-noise ratio of over 108 dB.

The MX-8A can be controlled via two different software applications available for Mac, Windows, iOS and Android devices: Tascam Tascam MX Connect for configuration and Tascam Tascam EZ Connect for end users, both of which are simple to use and included with the unit. Using Tascam MX Connect installers can quickly and easily configure the MX-8A and then assign appropriate simple controls for access by users via Tascam EZ Connect.

The optional RC-W100 wall-mountable controller offers a graphic display and a push/turn multi-control knob that provides for volume control and source selection.

Hardware features :

Eight balanced mic/line inputs and eight balanced line outputs
Euroblock connectors – ideal for permanent installation
USB audio interface mode allows to record audio or play background music with a computer
Controllable via
an Ethernet network (using the Tascam MX Connect computer application or the Tascam Mixer Protocol)
RS-485 (using the dedicated RC-W100 remote controller)
RS-232C
Status indicator on front panel
USB connector on front panel for easy connection of a computer, tablet or smartphone (is also used for firmware updates)
High-quality internal power supply (no AC adapter)
19 inch rackmount size (1U)

Software features :

Five different reference levels available to adapt to virtually any application in consumer, professional or broadcast environments (selectable via software)
Powerful DSP mixer (controllable via software)

Input features: phantom power on/off, phase, sensitivity, trim, automatic level control, 4-band equalizer, mute, fader
Mixer features: Matrix mixer, ducking, ambient noise compensator (ANC), routing
Outputs features: 10-band equalizer, limiter, delay, mute, fader, phase

Up to 50 scene presets can be saved
Timer event function allows presets to be switched at specific times (planned for a future update)
Two types of control software available (compatible with Windows/Mac/iOS/Android devices):
Tascam MX Connect for system integrators offers full access to virtually all settings
Tascam EZ Connect for end-users is a simple app for only the most necessary settings

USB audio interface features :

Two audio inputs and two audio outputs when connected to a Windows/Mac computer or iOS/Android device
Allows audio to be recorded / played back via Windows Media Player, iTunes or DAW applications
