Our Sennheiser radio mic systems are supplied racked and ready to use. They are built using genuine Sennheiser RF equipment and power supplies, Neutrik audio connectors and high quality flightcases, to ensure the whole system offers the reliability & performance that Sennheiser wireless equipment is renowned for.

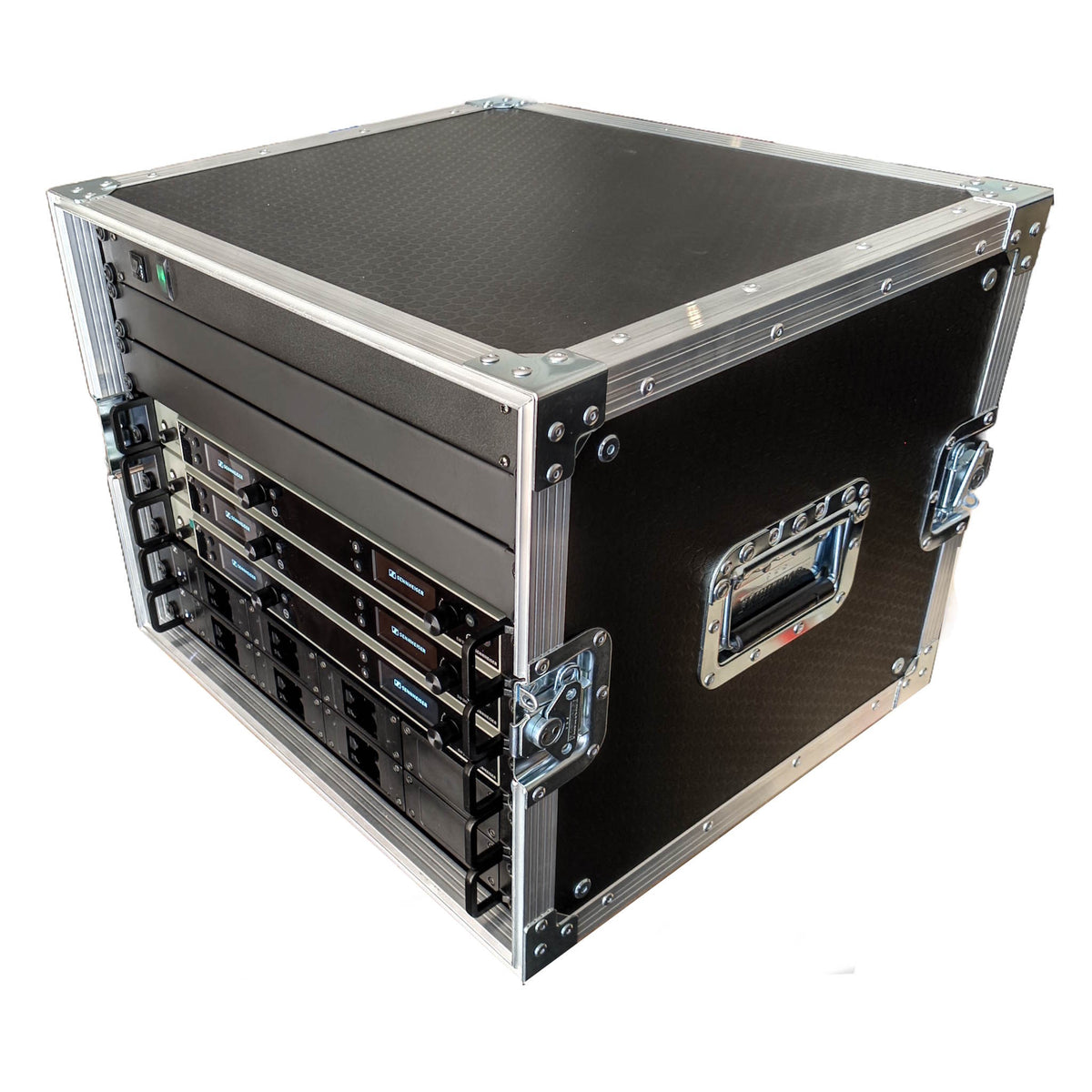

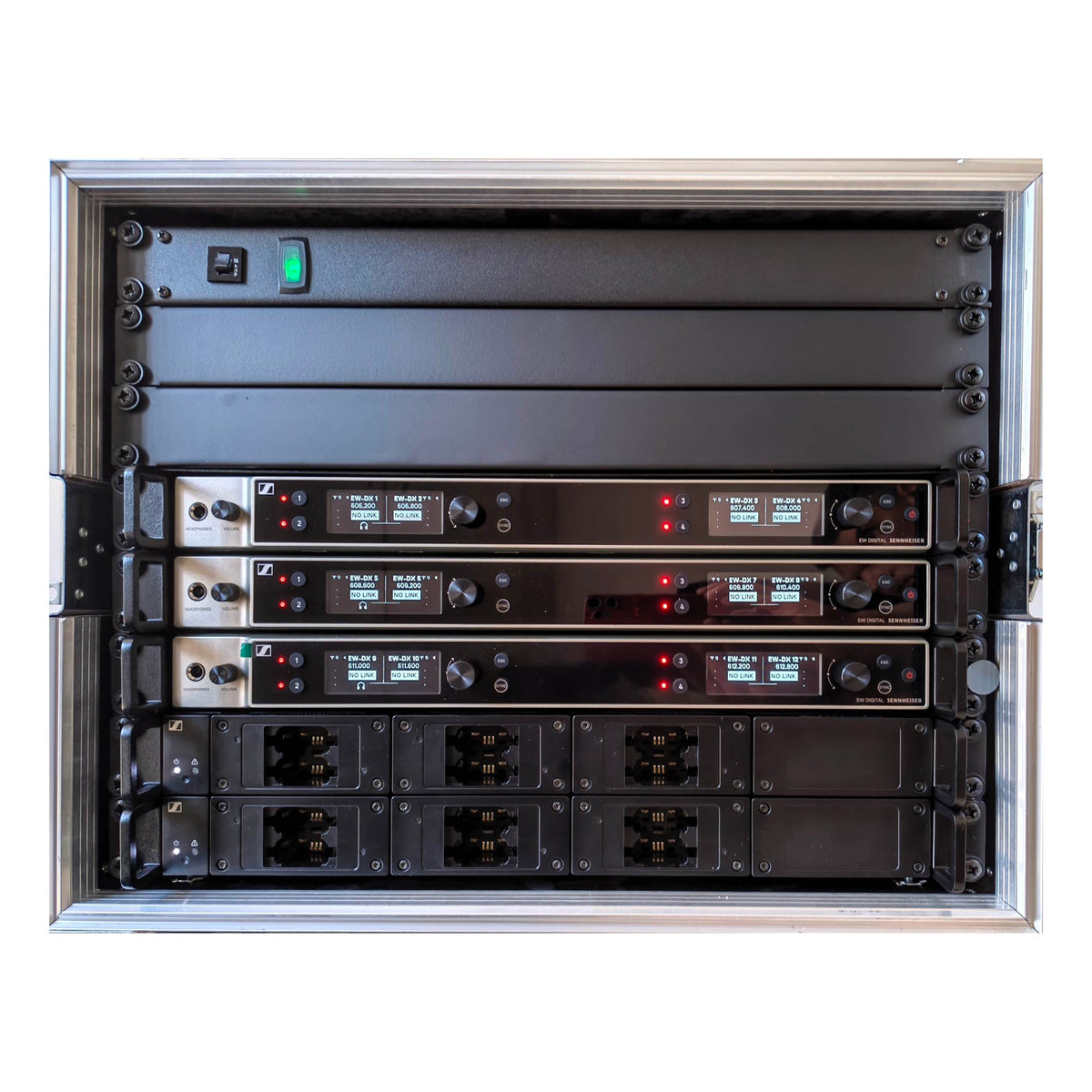

This 12-way system includes 3 x Sennheiser EW-DX-EM4 quad-channel receivers, rackmounted in a high quality black 8U flightcase. Mains power is distributed via a Powercon socket on the rear panel.

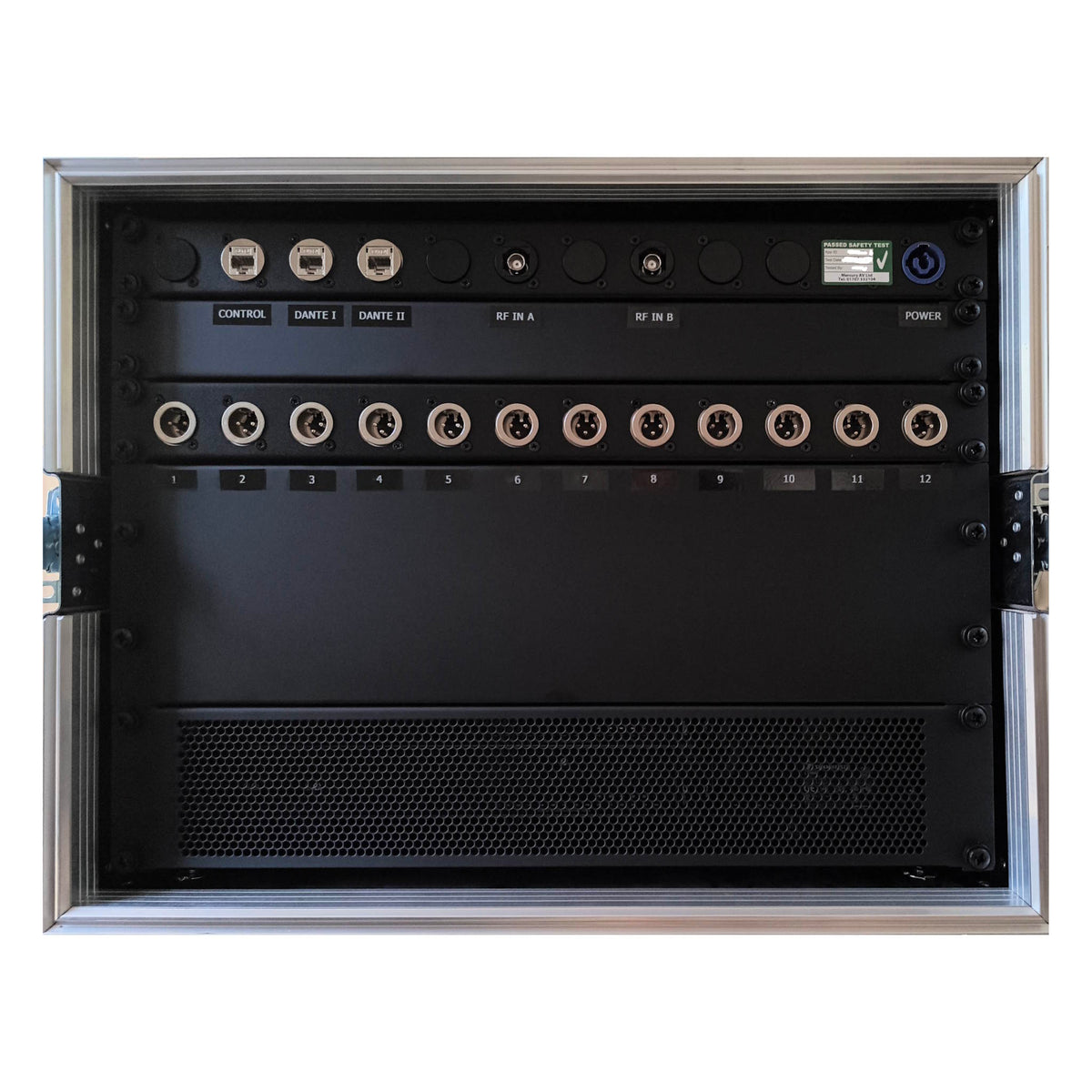

The custom patch panel includes :

12 x Balanced XLR Audio Outputs ( for connection to a mixer using the supplied Van Damme XLR loom )
2 x RF Inputs A & B ( to be fed from the supplied Sennheiser paddles via 5M BNC cables )
3 x CAT6A Data Sockets - Providing separate CONTROL - DANTE I - DANTE II Networks
1 x Powercon Mains input socket, for use with the supplied Powercon cable

A blanking panel is fitted below the patch panel to fully enclose the rear of the rack and protect the internal connections.

Supplied with this system are 2 x Sennheiser ADP-UHF Directional Aerials, 2 x 5M BNC Aerial Cables, 1 x Powercon Mains Cable and 1 x 12 Way 3M Van Damme XLR Audio Loom. This system also incorporates 2 x L6000 Rackmount chargers, each populated with 3 x dual LM6070 modules, to give 12-way charging capacity onboard the rack. 24 x BA70 rechargeable battery packs are included.

The system is provided fully assembled, patched and tested, with updated firmware. Transmitters and receivers are pre-programmed and labelled.

The price for this system includes 12 x EW-DX-SK belt-pack transmitters or 12 x EW-DX-SKM-S handheld transmitters. Please note that beltpack transmitters are not supplied with any lapel or headset mics which should be ordered separately if required. If you require a mix of transmitter types, please let us know and we will be happy to accommodate this. Handheld transmitters are supplied with MMD835 dynamic cardioid mic heads as standard. Other options are available by request, please ask for a quote.

The standard frequency range we supply this system on is Sennheiser Range S1-10 ( 606.200-693.800 MHz )

Range S1-10 is suitable for use on bandwidth between 606-614MHz ( Channel 38 ) in the UK, which is covered by a standard UK radio mic licence. This is the best solution for most users and offers reliable results for portable use.

Other frequency ranges are available, which are suitable for limited licence-exempt use and for fixed site users. Please call our Sales Team on 01707 332104 if you would like to discuss this further, we will be happy to offer specific advice.

This fully assembled and tested system includes :

1 x 8U 19" Rackmount Flightcase
1 x 1U Mains Power Distribution Unit
3 x EW-DX-EM4-DANTE Receivers
12 x EW-DX Transmitters
2 x L6000 Rackmount Chargers
6 x LM6070 Dual Charger Modules
24 x BA70 Rechargeable Batteries
1 x Custom Data / RF / Powercon Patch Panel
1 x 12-Way XLR Audio Output Panel
1 x 12-Way Van Damme XLR Audio Multicore 3M
1 x Powercon Mains Cable 2M
3 x Internal GigaBit Network Switches
2 x ADP-UHF Paddles
2 x 5M RF Cables
