OVERVIEW
OVERVIEW

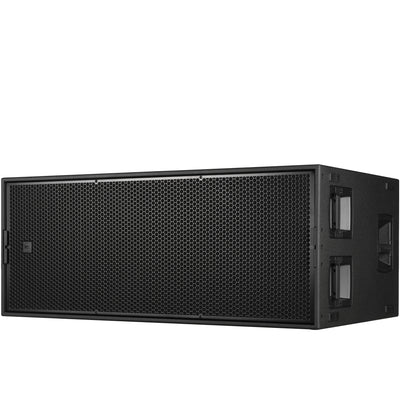

SUB 9029-AS is a high-performance dual 19" active subwoofer delivering up to 142 dB Max SPL, powered by a robust 8000W Class-D amplifier. Designed for rigorous touring, the SUB 9029-AS features a tour-ready, weatherproof cabinet with a durable Polyurea finish and a detachable front cart for easy transport. Control is precise with RDNet network management, offering adjustable EQ, delay, cardioid options, and tailored crossover presets for RCF speakers. Innovative contactless configuration via RDTap allows seamless setup even when the unit is unpowered, ensuring perfect integration every time. Despite its small footprint and lightweight cabinet, the SUB 9029-AS produces powerful yet articulate bass, remaining true to even the most subtle low-frequency variations.

FEATURES
FEATURES

142 dB Max SPL
8000W Class-D Amplification

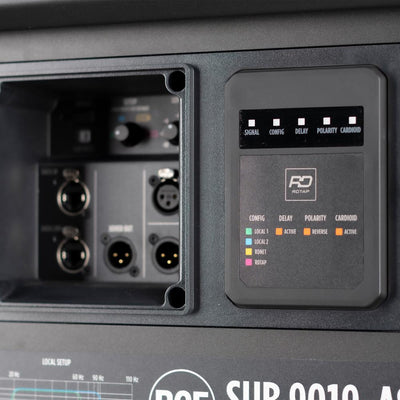

RDTap Contactless Configuration
I/O Panel Rain Cover Included
RDNet Networked Control
BMC, EQ, DLY, Cardioid
ACE Crossover Presets for RCF Speakers
2 x 19" High-Excursion Precision Transducers
Detachable Front Cart (sold separately)
powerCON TRUE1 TOP AC Connector

SPECIFICATIONS
SPECIFICATIONS

Acoustical specifications
Frequency Response : 25 Hz - 200 Hz
Max SPL @ 1m : 142 dB
Transducers
Woofer : 2 x 19'' neodymimum 4.0'' v.c
Input/Output section
Input signal : bal/unbal Input connectors : XLR, RDNet Ethercon
Output connectors : XLR, RDNet Ethercon
Input sensitivity : -2 dBu/+4 dBu
Processor section
Protections : Thermal, Limiter, Soft Limiter
Controls : MUTE, VOL, PRESETS, RDTAP
RDNet : Onboard

Power section
Total Power : 8000 W Peak
Cooling : Convection/Forced
Connections : Powercon TRUE1 TOP IN/OUT
Standard compliance : CE Compliant

Physical specifications
Cabinet/Case Material
Plywood
Hardware
2 x M20 pole mount accessories

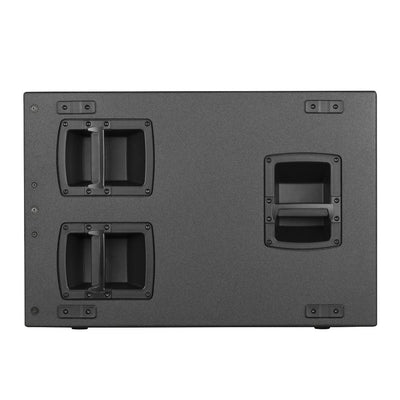

Handles : 3 handles per side
Pole mount/Cap : M20 thread
Grille : Steel with clothing
Color : Black
Size / Weight
Height : 533 mm / 20.98 inches
Width : 1310 mm / 51.57 inches
Depth :785 mm / 30.91 inches
Weight :93 kg / 205.03 lbs

Shipping information
Package Height : 570 mm / 22.44 inches
Package Width : 830 mm / 32.68 inches
Package Depth : 1350 mm / 53.15 inches
Package Weight : 98 kg / 216.05 lbs
