Product details
Overview

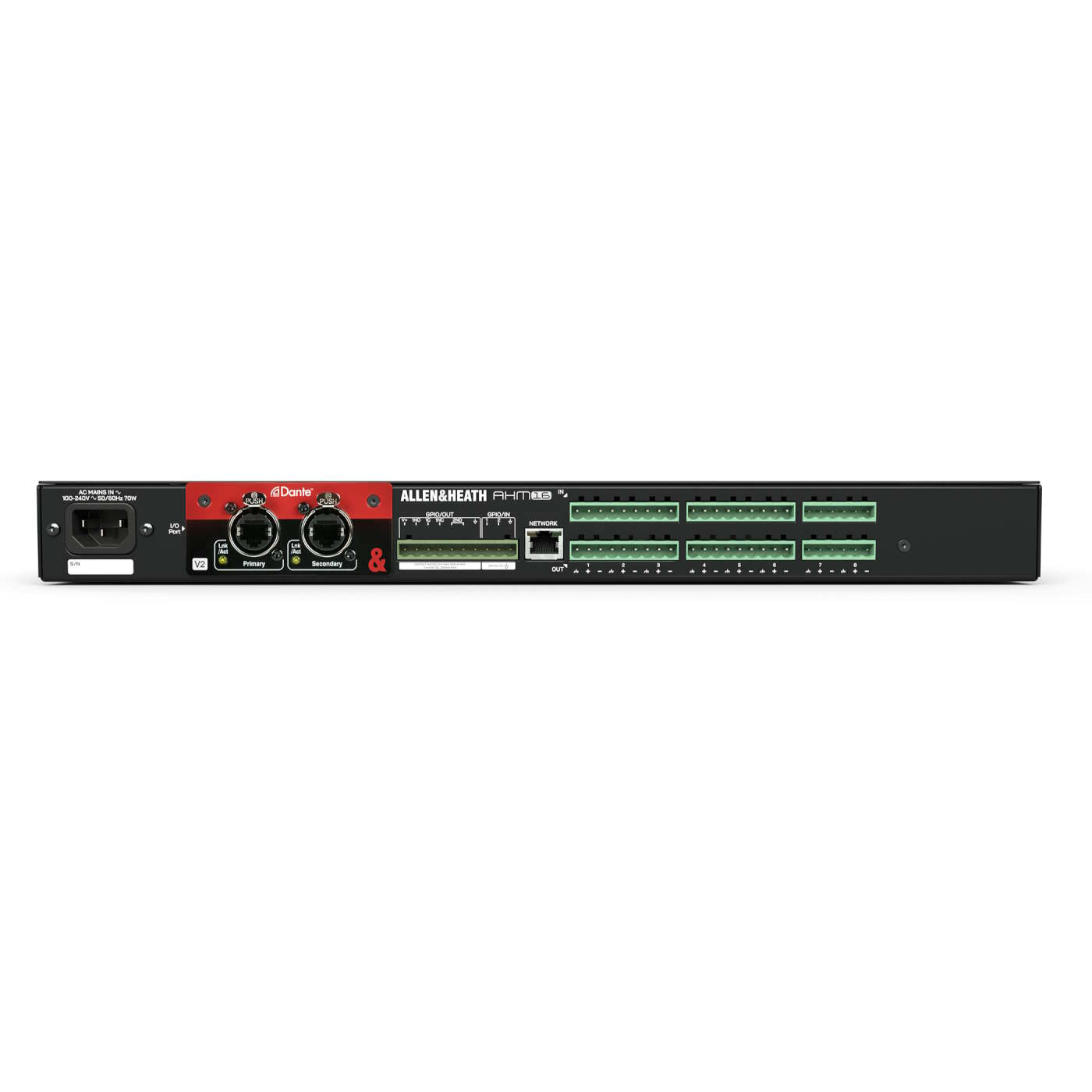

NB Image 4 shows the AHM-16 with optional Dante card installed ( not included - please order separately if required ).
AHM-16 is an audio matrix processor for sound management and installation. It is designed for audio distribution, paging, conferencing and speaker processing in a multitude of environments including corporate, hospitality, education, event and multi-purpose venues, retail, theatres, cruise ships and sports venues.
The AHM-16 processor is complemented by an extended ecosystem of remote audio expanders, remote controllers, interfaces, apps and software.
A family of portable, rack-mountable or wallmount audio expanders is available with a choice of proprietary point-to-point Layer-2 or Dante transport protocols.
A range of IP remote controllers is available for volume control, music source selection, preset recall and more. AHM can also integrate with third party devices over GPIO, TCP/IP, or industry standard control systems. The Custom Control editor and app from Allen & Heath offer more control options and tailored user interfaces for multiple users and device types, with kiosk and BYOD capability.
Features
• 16x16 processing matrix • 8x8 local analogue I/O • I/O Port for expansion or audio networking, up to 128x128 • Dante 96kHz optional cards (AES67 and DDM ready) • 16 configurable processing outputs – up to 16 mono / 8 stereo zones • 96kHz FPGA core with ultra-low latency • Compatible with Allen & Heath IP1, IP6, IP8 remote controllers • 2x2 local GPIO plus networkable GPIO interface • Front panel screen and 4x programmable SoftKeys • 4 user profiles • Event scheduler • Internal stereo playback
Sound management tools : • Automatic Mic Mixer • ANC (Ambient Noise Compensation) • Priority ducking • 8-band PEQ, dynamics and delay on every input and zone • Speaker processing with x-over filter, delay, limiter and PEQ
