Product details
Overview

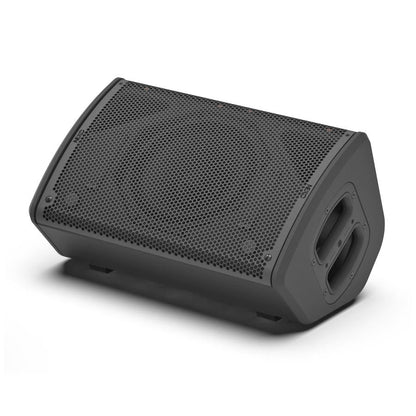

Nexo P8 - Black Touring Version
NEXO has always been well-known for its compact and very powerful versatile point source speakers, ideal in both FOH and wedge application.
This expertise is now applied to the P8, featuring a new extremely powerful coaxial 8” speaker and lots of innovation, making it unique in its category.
Measuring 276mm wide x 423mm high x 250mm deep and weighing 12Kg, the P8 can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. Speakon connectors are located in the side-mounting handles and the back plate. The P10 is designed to be driven by a suitable Nexo amplifier, such as the NXAMP4x1 MKII
Features
Compact, low-profile, curvilinear enclosure 8” LF Neodymium driver and 1.5” diaphragm HF driver in a coaxial configuration Variable HF directivity 129dB peak SPL Threaded inserts on the back and on both sides for connection of mounting accessories Stand fitting on both sides 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
Specifications
With NEXO Processing Frequency Response (+6 dB) 66 Hz to 20 kHz Peak SPL Level (1m) 129 dB Peak Operating Voltage 40 Vrms (105 Vpeak) HF Dispersion (according to horn) 100° x 100° (Default) - 110° x 60° (with 110° x 60° optional horn) Crossover Frequency 66 Hz, 85 Hz Nominal Impedance 8 Ohms
Features
Components 1 x Coaxial LF 8" 8 Ohms long excursion & Neodymium HF 1.5" 8 Ohms Number of ways 2 ways passive Connectors (Touring version) 4 x NL4, 4 poles connectors (1 per handle + 2 at the back) Connectors (Install version) 1 x Cable gland with 2 cores cable Rigging points 1 x universal accessory fit on each side + 1 x on the bottom Material Custom made bent plywood of baltic birch and poplar Finish Black or White structural paint Front Finish (Touring version) Magnelis® steel front grille + back mesh Front Finish (Install version) UV resistant acoustic fabric fitted front grill Height x Width x Depth 423 mm x 276 mm x 250 mm (16.7" x 10.9" x 9.8") Weight: Net 12 kg (26.5 lbs) Operating temperature range 0°C - 40 °C (32° F - 104° F) Storage temperature range -20 °C - 60 °C (-4 ° F - 140° F)
