Product details
Overview

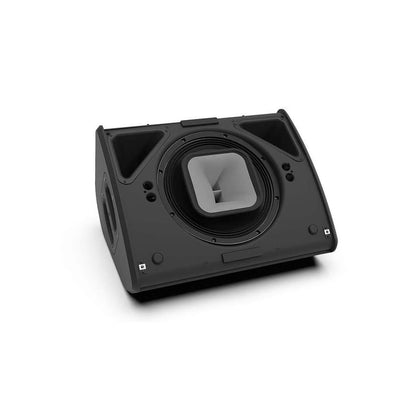

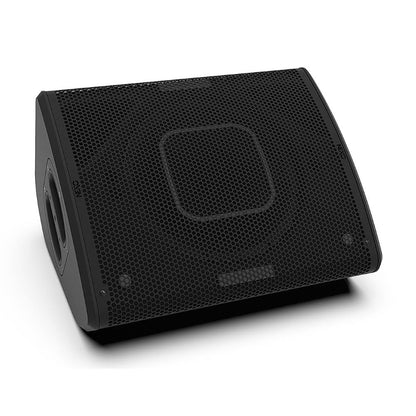

Nexo P12 Black Touring Version
Nexo's P12 speaker is one of the loudest, most portable, most flexible and best sounding PA speakers on the market. With a coaxial HF driver, interchangeable HF horns and a shaped cabinet it is a genuinely multi-function design, capable of excellent results as a front-of-house speaker or stage monitor.
Housed in a curvilinear enclosure of custom birch and poplar plywood, the P12 employs a purpose-designed 12-inch LF Neodymium driver and 3-inch diaphragm HF driver in a coaxial configuration. The compact cabinet measures just 531mm x 432mm x 317mm, and can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. The back plate holds two Speakon® connectors (plus one each on both sides) and a recessed switch to change the cabinet from 2-way passive to 2-way biamp mode.
KEY FEATURES Compact, low-profile, curvilinear enclosure 12inch LF Neodymium driver and 3inch diaphragm HF driver in a coaxial configuration Variable HF directivity with interchangeable, magnetically mounted HF horns Switchable for passive or biamped mode with a NXAMP amplifier. 140dB peak SPL (Biamp Mode) Threaded inserts on the back and on both sides for connection of mounting accessories Stand fitting on both sides 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
Specifications
Frequency Response (+6 dB) 60 Hz - 20 kHz Peak SPL Level (1m) 138dB Peak (Passive mode using 1 NXAMP channel) / 140dB Peak (Biamp mode using 2 x NXAMP channels) Operating Voltage 55Vrms (150Vpeak) HF Dispersion (according to horn selected) 60°x60°(standard), 90°x40° (optional) or Asymmetrical Dispersion 60° to 100°x40° (optional) Crossover Frequency 60 Hz - 85 Hz Depending on NXAMP setup Nominal Impedance : Biamped mode (8-Ohms LF, 8-Ohms HF), Passive mode: 8-Ohms Components LF: 1x12" - 8-Ohms; HF : 1x3" - 8-Ohms - Neodymium driver Material Baltic birch / Poplar plywood Finish Black structural paint Front Finish Steel front grille + Black mesh Fittings Handle on both sides. Threaded inserts on the back and on both sides for connection of mounting accessories. Stand fitting on both sides (35mm / 1"3/8). Connector 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides Weight 20 kg Height x Width x Depth 531mm x 432mm x 317mm
