Sennheiser EW IEM-G4-TWIN (Range E) Dual IEM System

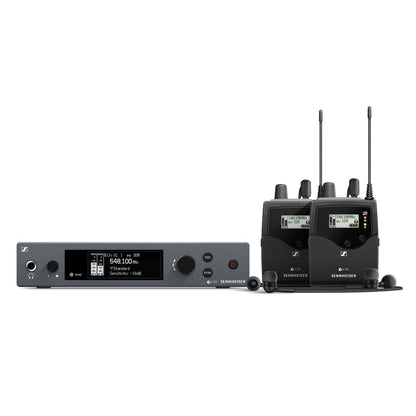

The Sennheiser EW-IEM-G4-E system is a double kit containing 2 x beltpacks and 2 x pairs of IE4 earphones with a single SR-IEM-G4-E transmitter.

The beltpacks features 'Focus Mode' which allows this dual system to be used in two different ways :

i) In default Stereo Mode, a stereo mix is fed into the transmitter and each beltpack hears the same stereo mix. As would be expected, a signal fed into the left input on the transmitter will be heard in the left earbud and a signal fed into the right input on the transmitter will be heard in the right earbud.

ii) In Focus Mode, two seperate monitor mixes are fed into the transmitter. The Up and Down buttons on the beltpack allow users to select whether they hear Mix 1, Mix 2 or an adjustable blend of both. The pack operates in mono when used in focus mode, so the chosen monitor mix is heard in both earbuds.

1 x SR IEM G4 stereo transmitter

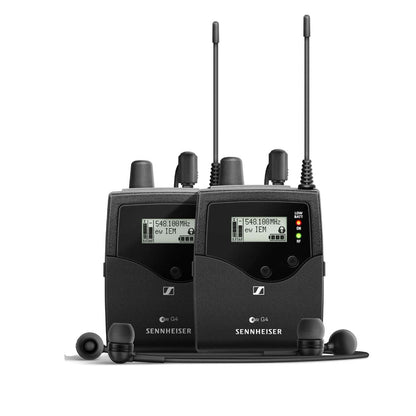

2 x EK IEM G4 stereo beltpack receivers
2 x Pairs of IE 4 in-ear earphones
1 x 12V DC power supply
4 x AA batteries
1 x BNC rod antenna
1 x GA 3 rackmount kit
1 x User guide & frequency planner sheet

Engineered for professional live sound : Rugged all-in-one wireless monitoring system for in-ear applications.
• Robust bodypack receiver and reliable in-ear monitoring IE 4 earphones delivering clarity along the whole frequency spectrum for daily use on stage
• Half-rack stereo transmitter in a full-metal housing with OLED display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Compatible with Sennheiser WSM control software for flexible frequency allocation
• Up to 16 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

Range E ( 823-865 MHz )

Range E is a flexible choice for use in the UK and across Europe. Without a licence it can be used in the UK between 863-865 MHz. This is enough bandwidth to allow the use of upto 3 x IEM systems simultaneously.

With a UK radio mic licence, it can be used between 823-832 MHz. This falls under the scope of the revised licence brought into effect in April 2015. This is sufficient bandwidth to alllow the use of upto 9 x simultaneous IEM systems. Access to 823-832 MHz is also well co-ordinated across Europe.

Please phone our Sales Team on 01707 332104 if you have any questions about frequencies and licencing, we will be happy to help.
