- Overview

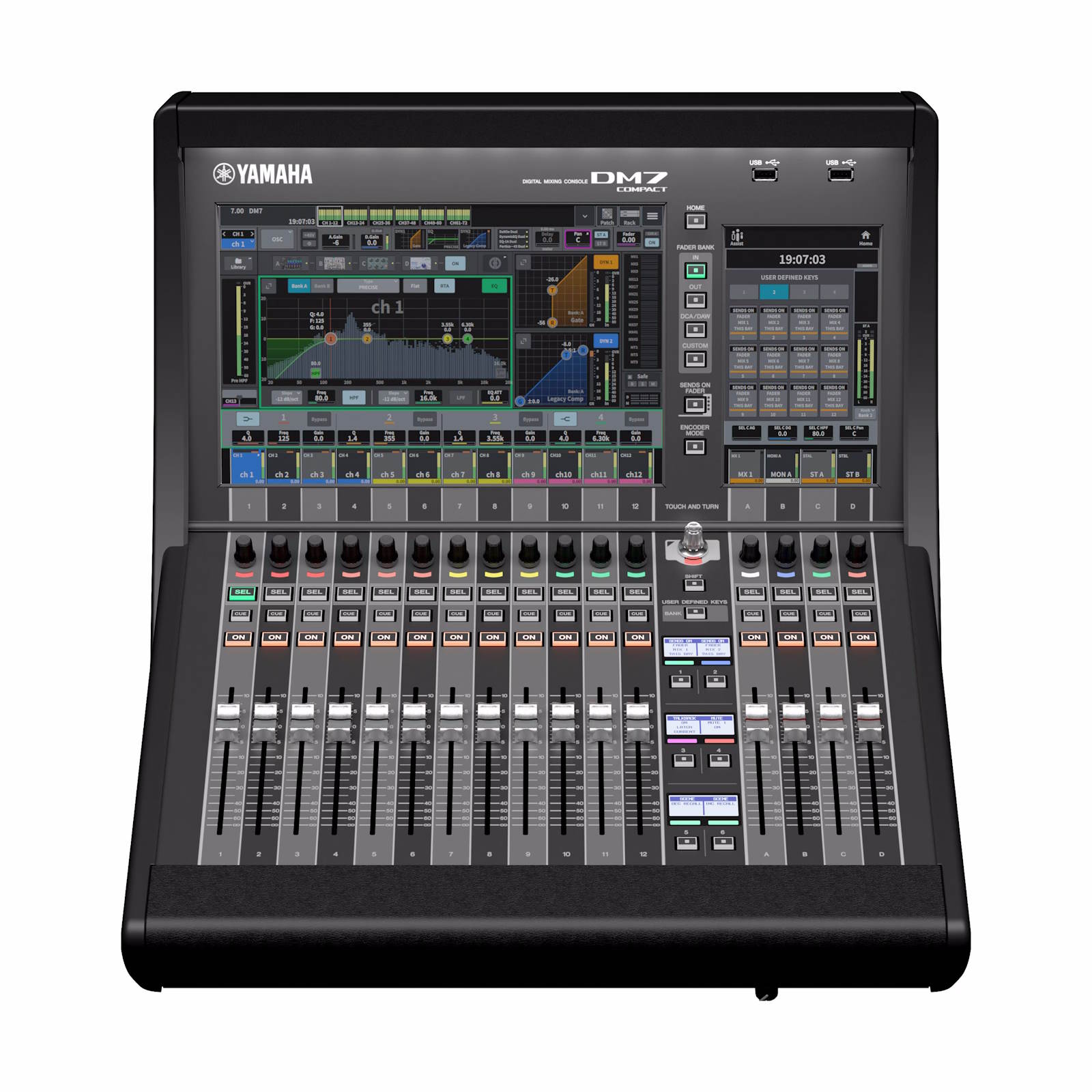

The DM7 Compact is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM7 Compact is configured with 12 + 4 faders and a 1 x 12” + 1 x 7” multi-touch screen, and a rack-mountable with an optional RK1 rack mount kit.
Input mixing channels: 72 mono
Buses: 48 Mix + 12 Matrix + 2 Stereo
Display: 12.1" multi-touch screen x 1, 7" multitouch screen x 1
Faders: 16 (12 + 4)
Analog I/O: 16 inputs / 16 outputs
Dante: 144 in / 144 out
AES/EBU: 1 out
Slot: PY Slot x 1
USB Audio Interface: 18 in / 18 out
Power supply: Redundant power supply built-in
Power consumption: 240 W
Dimensions (W x H x D): 468 mm x 324 mm x 564 mm (18.5" x 12.8" x 22.2")
Net Weight: 16.5 kg (36.4 lb)
