- Overview

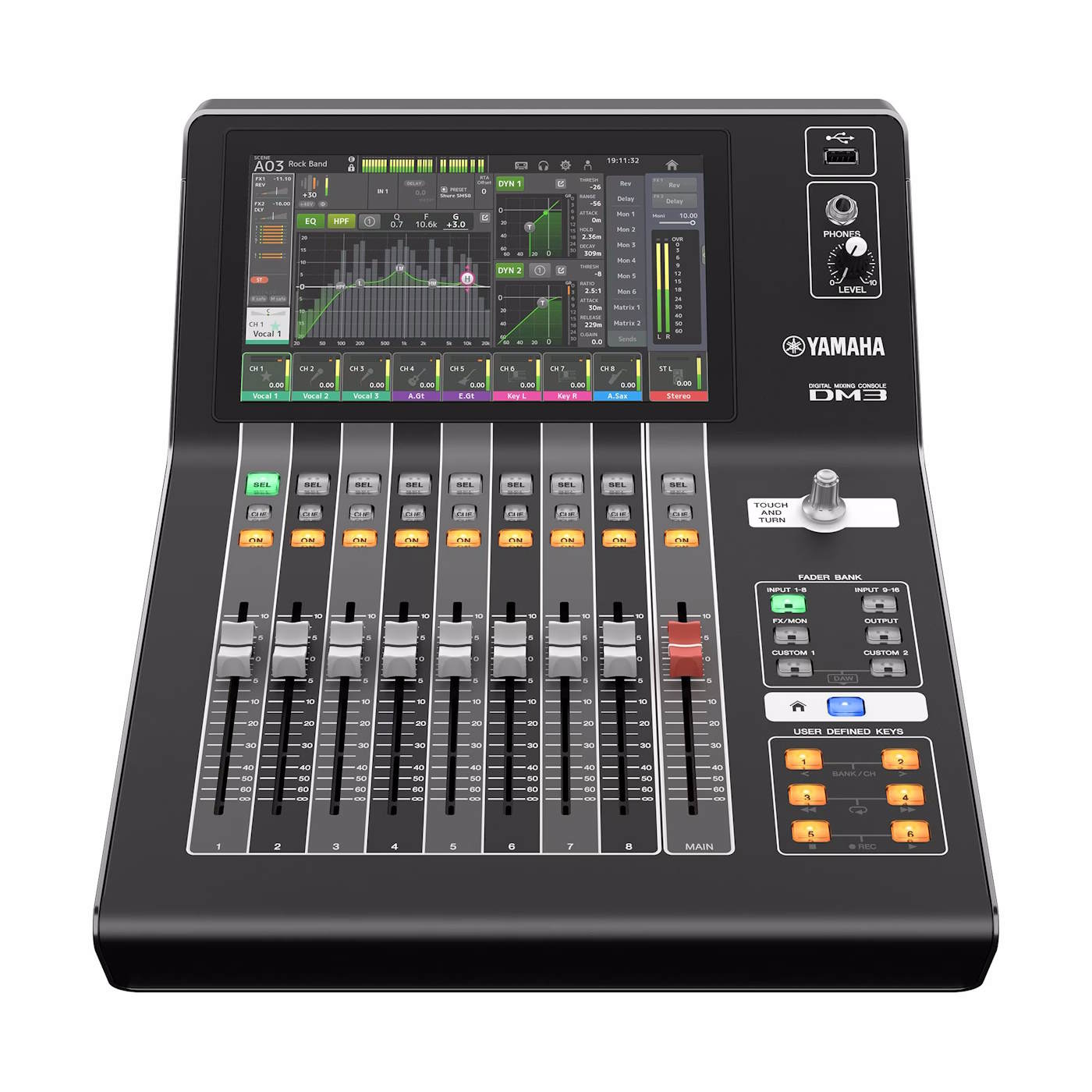

The DM3 is a compact Dante-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The DM3 offers superb sound quality, fast and easy setup and operation, and professional-level features.
8 + 1 fader configuration
9-inch multi-touch screen
Input mixing channels: 16 mono + 1 stereo + 2 FX return
Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)

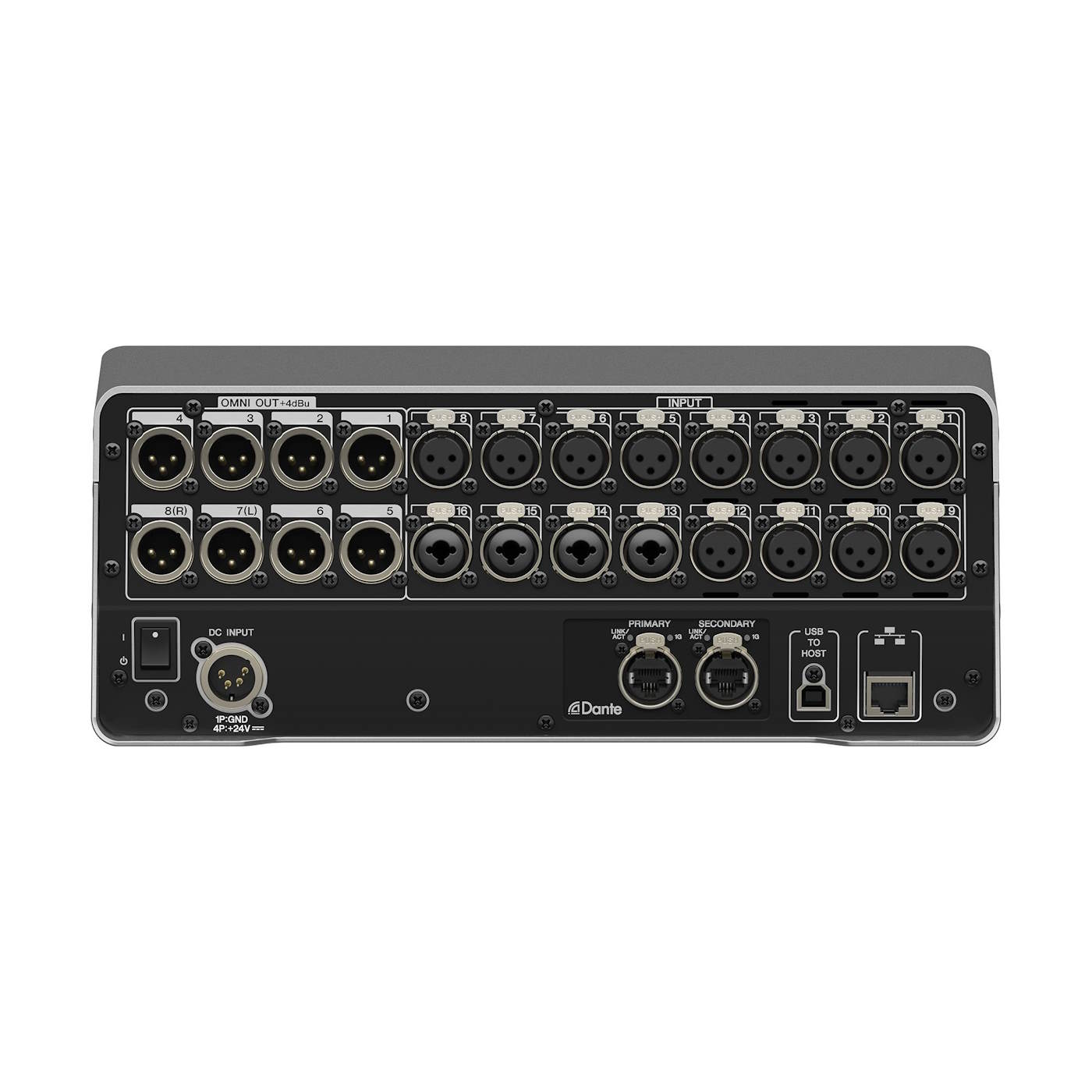

Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
Dante: 16 inputs, and 16 outputs
USB: 18 inputs, and 18 outputs
18 Effects, and GEQ on Mix 1-6 and Stereo channels
Sampling rate: 48kHz/96kHz
Dimensions (W x H x D): 320 mm × 140 mm × 455 mm
Net weight: 6.5 kg
