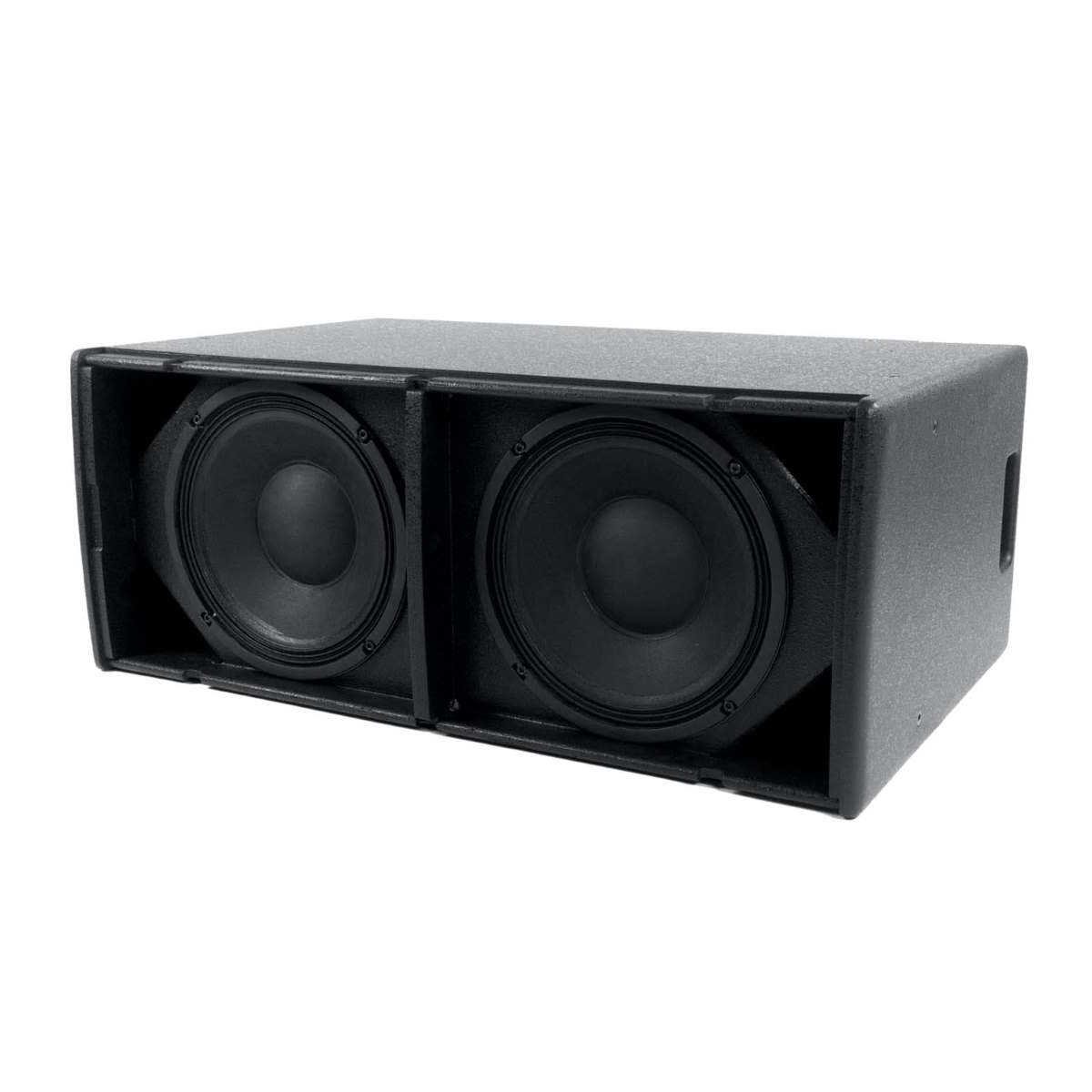

The SX210 is a slimline dual-driver subwoofer designed for situations that call for a visually unobtrusive enclosure. It can be used singly, stacked or flown via integral M8 inserts and its ultra-compact size makes it ideal for applications where space is limited. It features dual 10” (250mm)/2” (50mm) voice coil drivers and generously sized low frequency ports for reduced air noise.
Slimline direct-radiator subwoofer
2 x 10” (250mm) drivers with 2” (50mm) voice coils
Large ports for reduced air noise
Perforated steel grille
4O nominal impedance
M8 flying inserts
TYPE Slimline dual, direct radiating subwoofer
FREQUENCY RESPONSE (5) 50Hz-150Hz ± 3dB, -10dB @ 42Hz
DRIVER 2 x 10” (250mm)/2” (50mm) voice coil, long excursion, ferrite magnet
RATED POWER (2) 500W AES, 2000W peak
SENSITIVITY (8) 103dB
MAXIMUM SPL (9) 127dB continuous, 133dB peak (half space)
NOMINAL IMPEDANCE 4O
DISPERSION (-6DB) Omnidirectional
CROSSOVER 80-120Hz active
ENCLOSURE Birch/poplar ply
FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel
CONNECTORS 4 x NL4 type
PIN CONNECTIONS (INPUT) 1+/1-
PIN CONNECTIONS (LINK) 1+/- to 1+/-
FITTINGS 16 x M8 inserts, 2 x bar handles
DIMENSIONS (W) 718mm x (H) 295mm x (D) 465mm
(W) 28.3ins x (H) 11.4ins x (D) 18.3ins
WEIGHT 20kg (44.1lbs)
Business buyers are welcome to contact our Sales Team for discounted trade prices. Please send an email to sales@mercury-av.com letting us know which products you are interested in and the name & address of the business.
