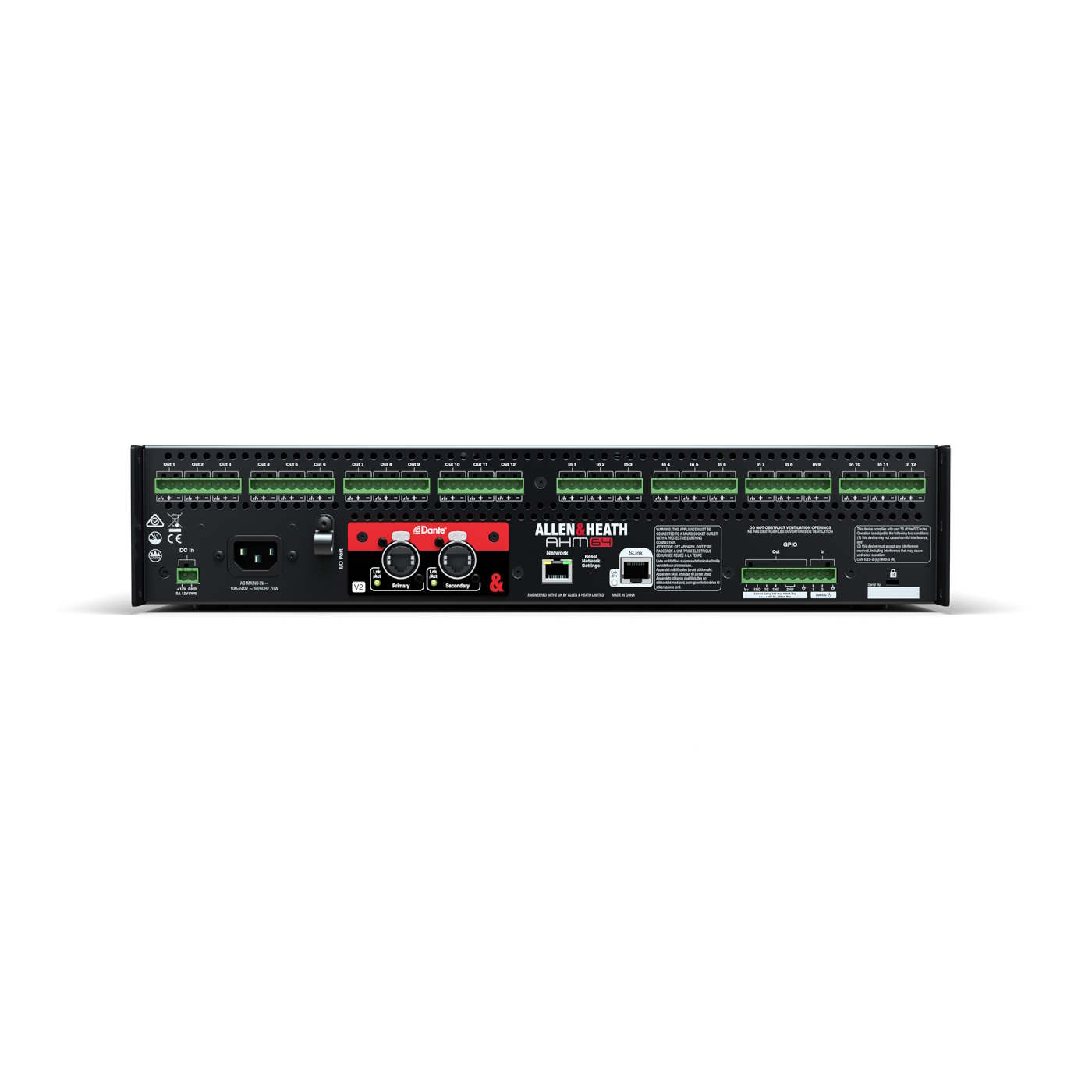

NB Image 4 shows the AHM-64 with optional Dante card installed ( not included - please order separately if required ).

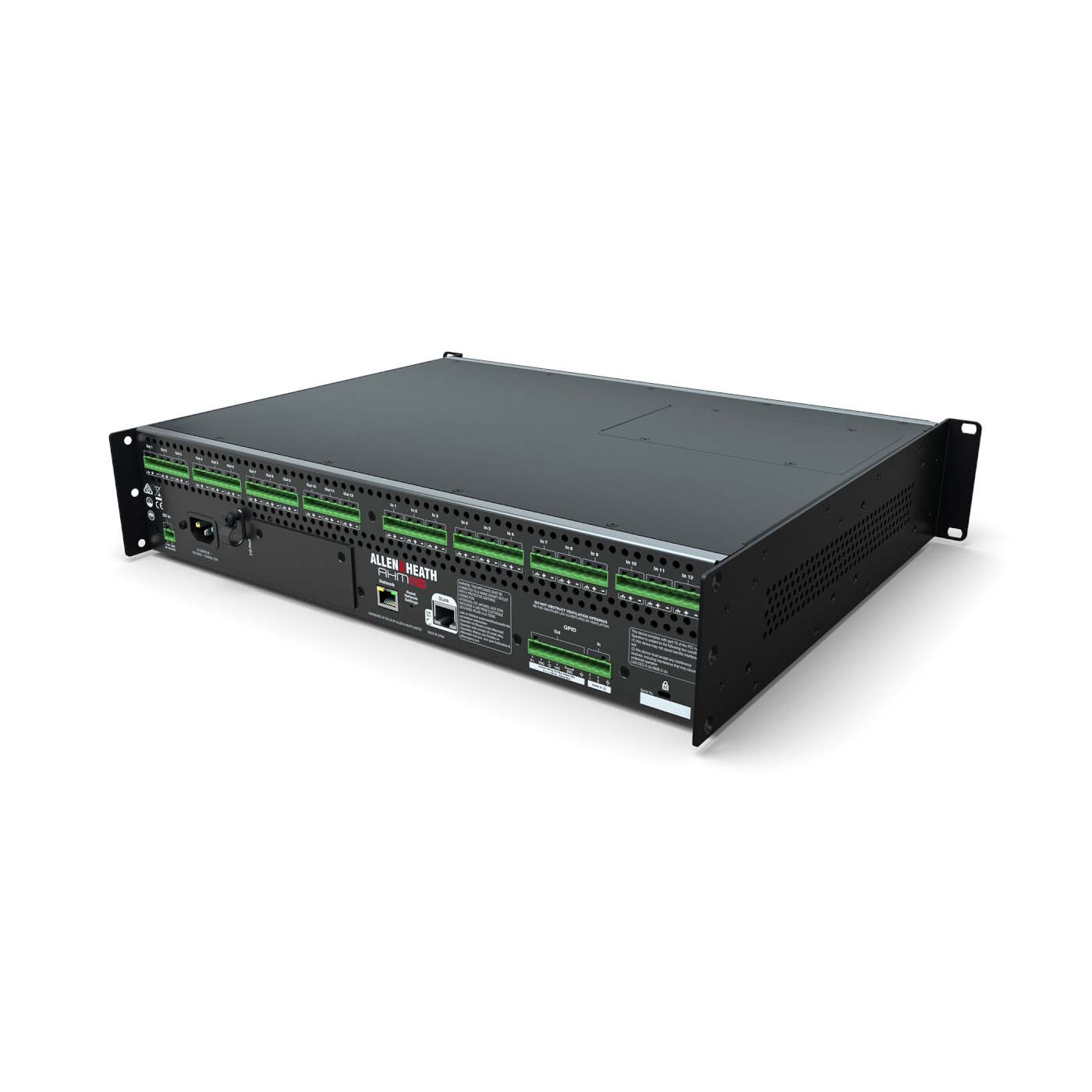

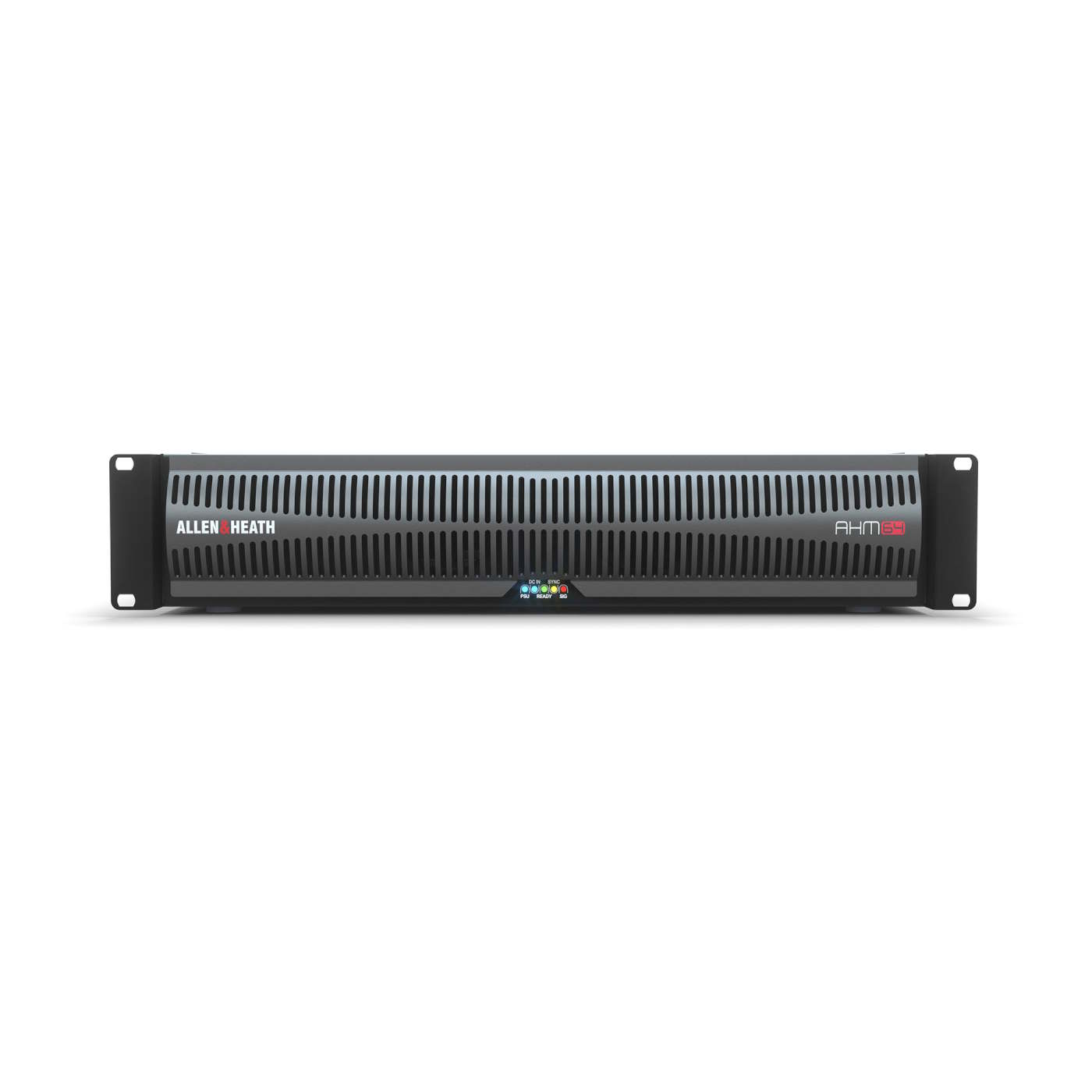

AHM-64 is an audio matrix processor for sound management and installation. It is designed for audio distribution, paging, conferencing and speaker processing in a multitude of environments including corporate, hospitality, education, event and multi-purpose venues, retail, theatres, cruise ships and sports venues.
The AHM-64 processor is complemented by an extended ecosystem of remote audio expanders, remote controllers, interfaces, apps and software. A family of portable, rack-mountable or wall-mount audio expanders is available with a choice of proprietary point-to-point Layer-2 or Dante transport protocols.
64x64 processing matrix
• 12x12 local analogue I/O
• I/O Port for audio networking, up to 128x128
• Dante 96kHz 64x64 optional card
(AES67 and DDM ready)
• 128x128 built-in SLink port for audio expansion
• 64 configurable processing outs – up to 64
mono/stereo zones
• 96kHz FPGA core with ultra-low latency
• Compatible with IP1, IP6, IP8 remote controllers
• 2x2 local GPIO plus networkable GPIO interface
• DC backup power supply
• System Manager software
• Custom Control app and editor
• 32 user profiles
• Integrated stereo / dual mono playback
• Event scheduler
Sound management tools :
• 8x Automatic Mic Mixers
• AEC (Acoustic Echo Cancellation) – optional module
• ANC (Ambient Noise Compensation)
• Priority ducking
• 8-band PEQ, dynamics and delay on every input and zone
• Speaker processing with x-over filter, delay, limiter and PEQ
