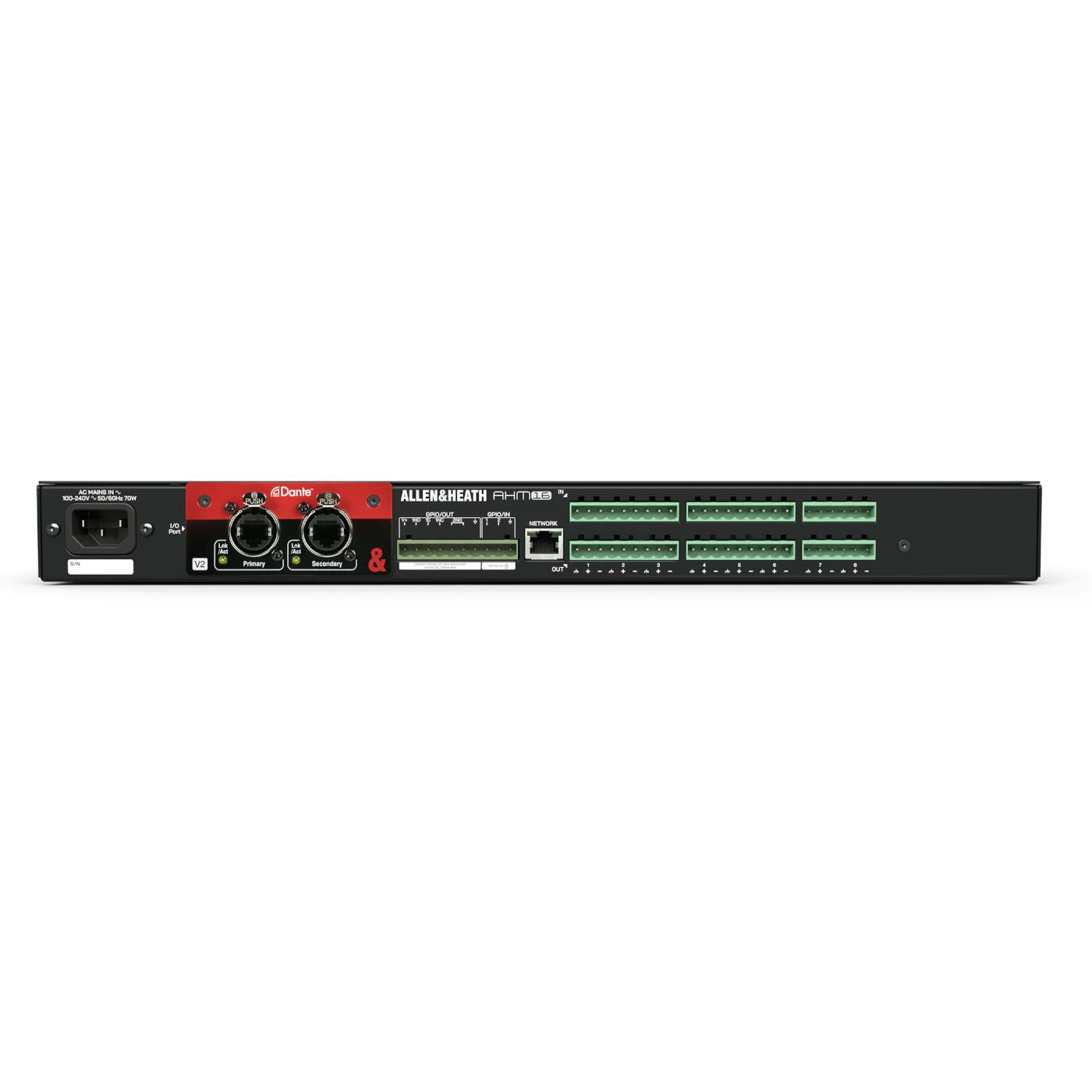

NB Image 4 shows the AHM-16 with optional Dante card installed ( not included - please order separately if required ).

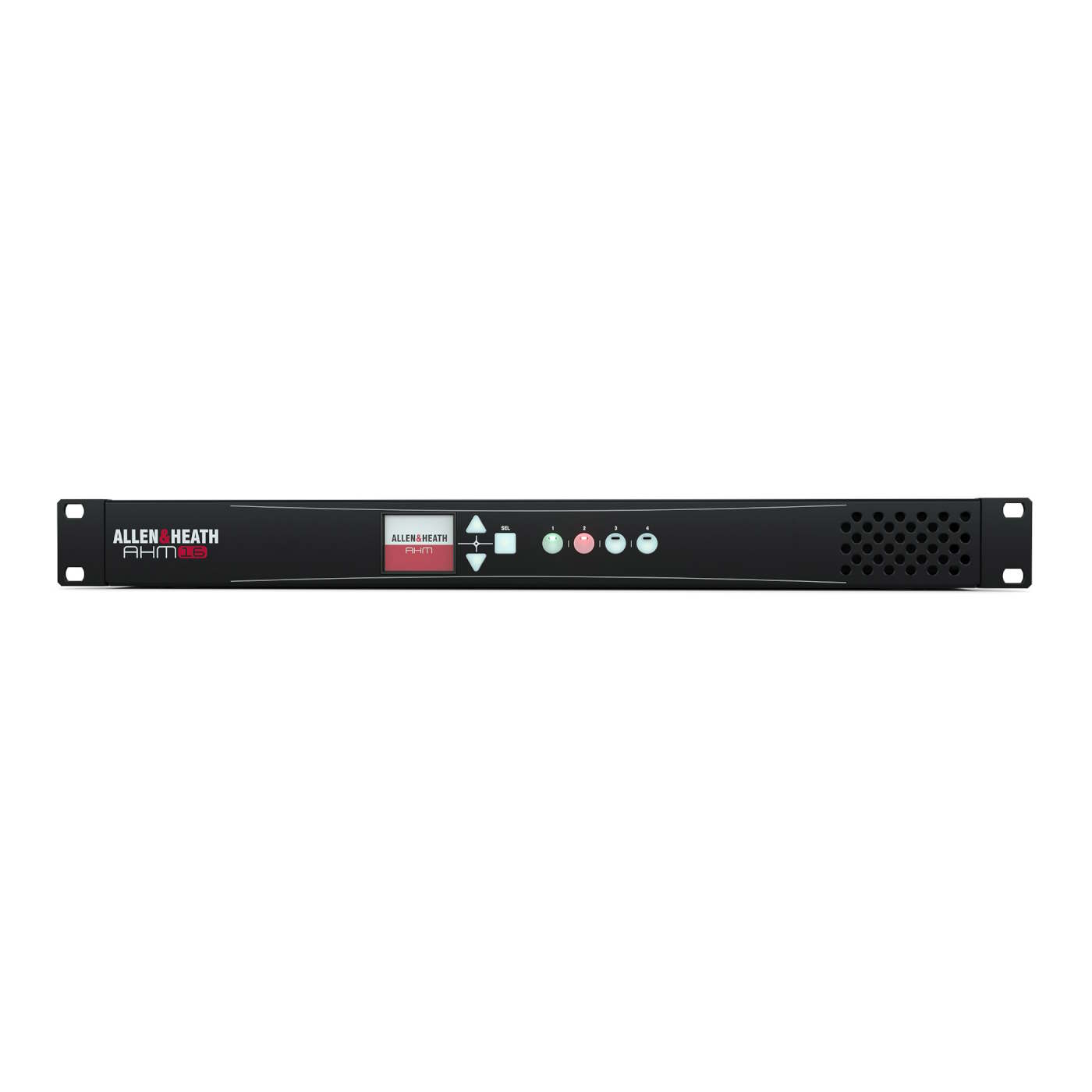

AHM-16 is an audio matrix processor for sound management and installation. It is designed for audio distribution, paging, conferencing and speaker processing in a multitude of environments including corporate, hospitality, education, event and multi-purpose venues, retail, theatres, cruise ships and sports venues.
The AHM-16 processor is complemented by an extended ecosystem of remote audio expanders, remote controllers, interfaces, apps and software.
A family of portable, rack-mountable or wallmount audio expanders is available with a choice of proprietary point-to-point Layer-2 or Dante transport protocols.
A range of IP remote controllers is available for volume control, music source selection, preset recall and more. AHM can also integrate with third party devices over GPIO, TCP/IP, or industry standard control systems. The Custom Control editor and app from Allen & Heath offer more control options and tailored user interfaces for multiple users and device types, with kiosk and BYOD capability.
• 16x16 processing matrix

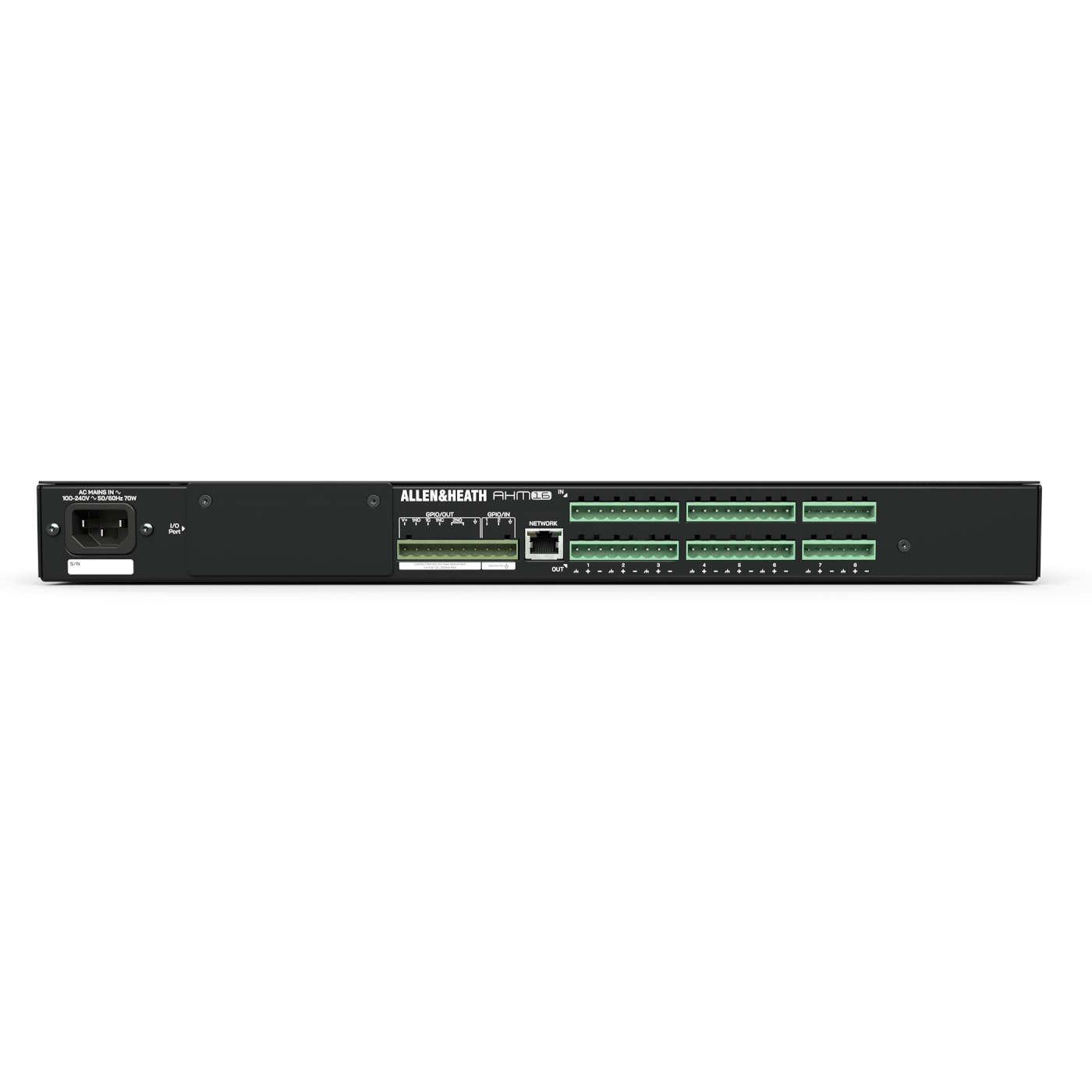

• 8x8 local analogue I/O
• I/O Port for expansion or audio networking, up to 128x128
• Dante 96kHz optional cards (AES67 and DDM ready)
• 16 configurable processing outputs – up to 16 mono / 8 stereo zones
• 96kHz FPGA core with ultra-low latency
• Compatible with Allen & Heath IP1, IP6, IP8 remote controllers
• 2x2 local GPIO plus networkable GPIO interface
• Front panel screen and 4x programmable SoftKeys
• 4 user profiles
• Event scheduler
• Internal stereo playback
Sound management tools :
• Automatic Mic Mixer
• ANC (Ambient Noise Compensation)
• Priority ducking
• 8-band PEQ, dynamics and delay on every input and zone
• Speaker processing with x-over filter, delay, limiter and PEQ
